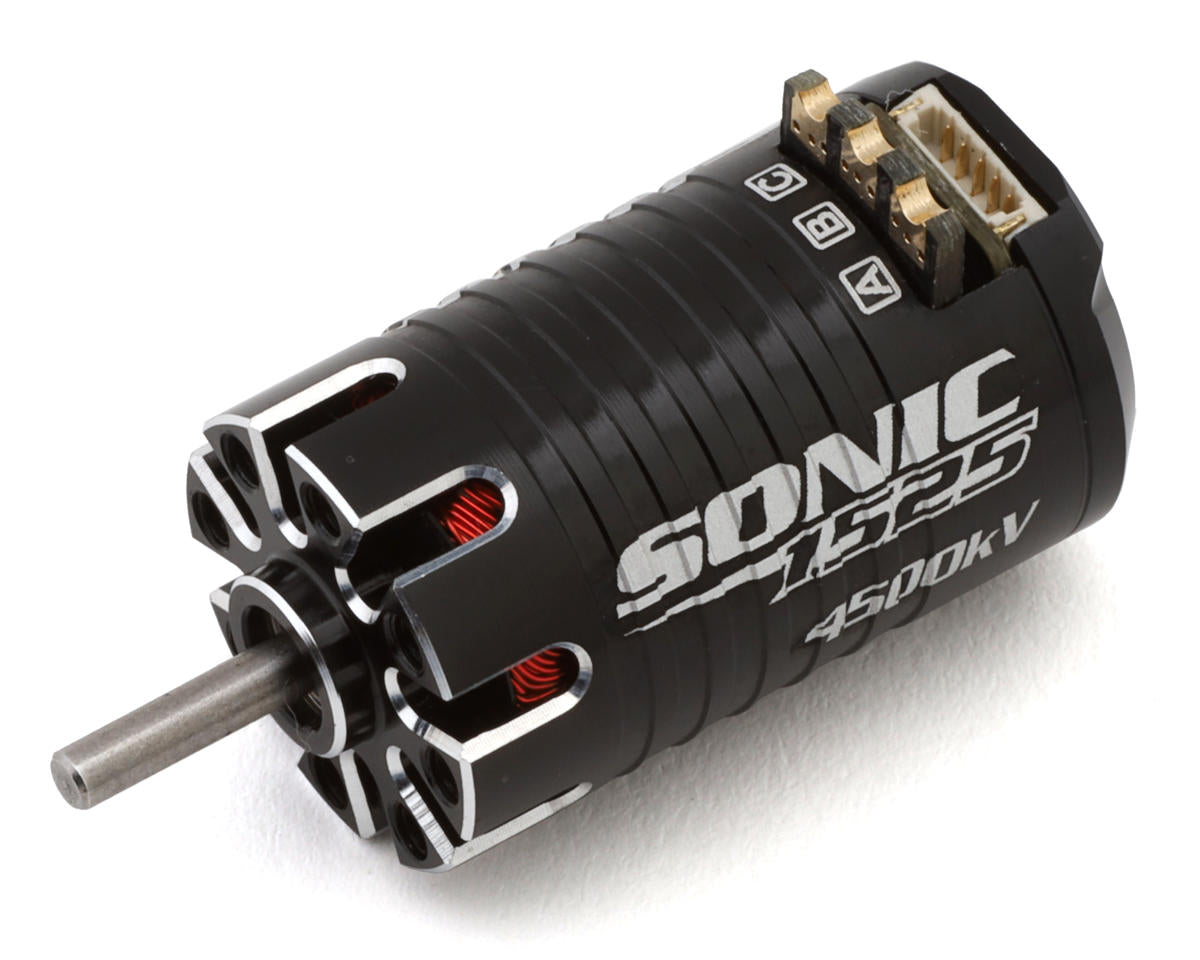

Reedy Sonic 1525 Sensored Micro Brushless Motor (4500kV)

The Reedy Sonic 1525 Sensored Micro Brushless Motor delivers smooth, high-RPM performance for 1/28 and 1/24 racing applications. This 4500kV motor features a 2-pole high-speed rotor rated up to 200°C, heat-resistant red windings, NSK Japanese bearings, and an anodized aluminum housing for heat dissipation.

Dual sensored and sensorless compatibility supports flexible setups, while thick gold PCB solder tabs provide secure connections.

Features

• Designed for 1/28 scale competition racing
• 2-pole high-speed rotor rated up to 200°C
• High-grade heat-resistant red windings
• NSK Japanese bearings for smooth high-RPM operation
• Sensored and sensorless dual-mode compatibility
• Anodized aluminum housing for maximum heat dissipation
• Thick gold PCB solder tabs for secure connections

Specifications

• Suggested Application: 1/28 & 1/24 Racing
• kV Rating: 4500kV
• Type: Brushless - Sensored
• Input Voltage: 2S LiPo
• No Load Current: -
• Poles: 2
• Watts: 80
• Connector: Solder
• Length: 0.98in (25mm)
• Diameter: 0.59in (15mm)
• Shaft Length: 0.39in (10mm)
• Shaft Diameter: 0.07in (2mm)
• Weight: 0.59oz (17g)

Includes

• (1) Sonic 1525 Sensored Micro Brushless Motor (4500kV)
• Product Manual
