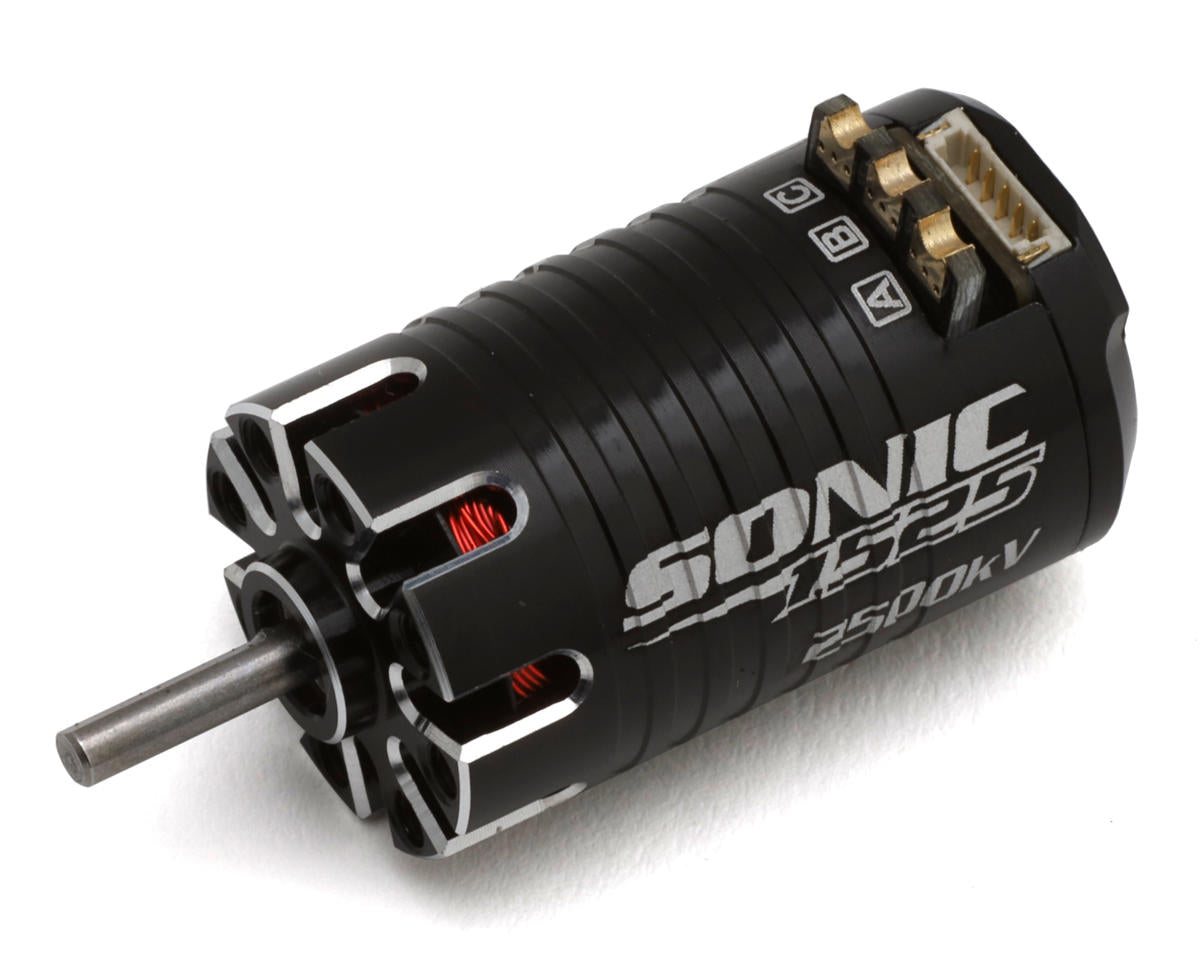

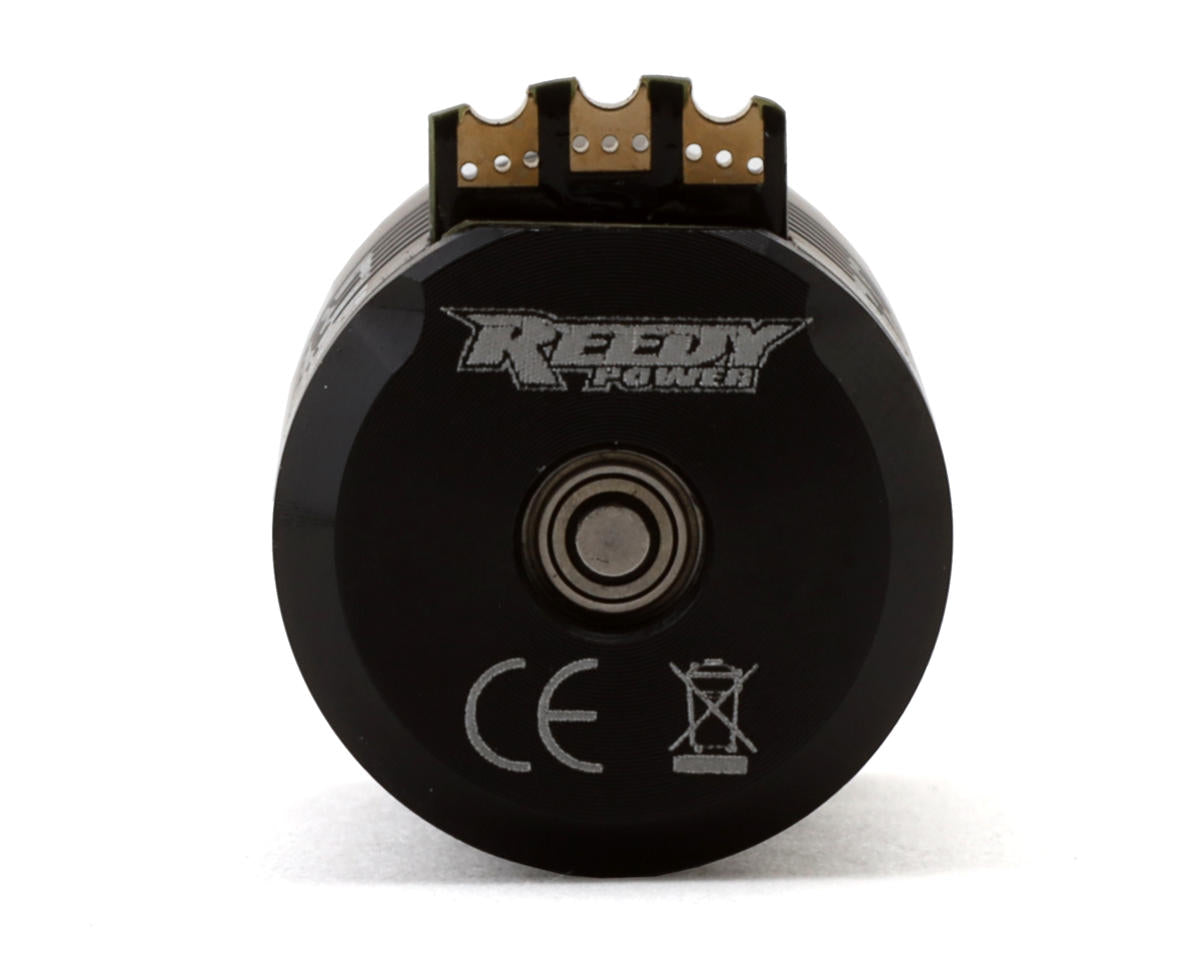

Reedy Sonic 1525 Sensored Micro Brushless Motor (2500kV)

The Reedy Sonic 1525 Sensored Micro Brushless Motor delivers compact brushless power for 1/28 and 1/24 racing applications. Its 2-pole high-speed rotor is rated up to 200°C, while heat-resistant red windings and NSK Japanese bearings support smooth high-RPM operation.

An anodized aluminum housing helps dissipate heat, and thick gold PCB solder tabs provide secure connections. Dual sensored and sensorless compatibility adds setup flexibility.

Features

• Designed for 1/28 scale competition racing
• 2-pole high-speed rotor rated up to 200°C
• High-grade heat-resistant red windings
• NSK Japanese bearings
• Sensored and sensorless dual-mode compatibility
• Anodized aluminum housing
• Thick gold PCB solder tabs

Specifications

• kV Rating: 2500kV
• Type: Brushless - Sensored
• Input Voltage: 2S LiPo
• Poles: 2
• Watts: 80
• Connector: Solder
• Length: 0.98in (25mm)
• Diameter: 0.59in (15mm)
• Shaft Length: 0.39in (10mm)
• Shaft Diameter: 0.07in (2mm)
• Weight: 0.59oz (17g)

Includes

• (1) Sonic 1525 Sensored Micro Brushless Motor (2500kV)
• Product Manual
