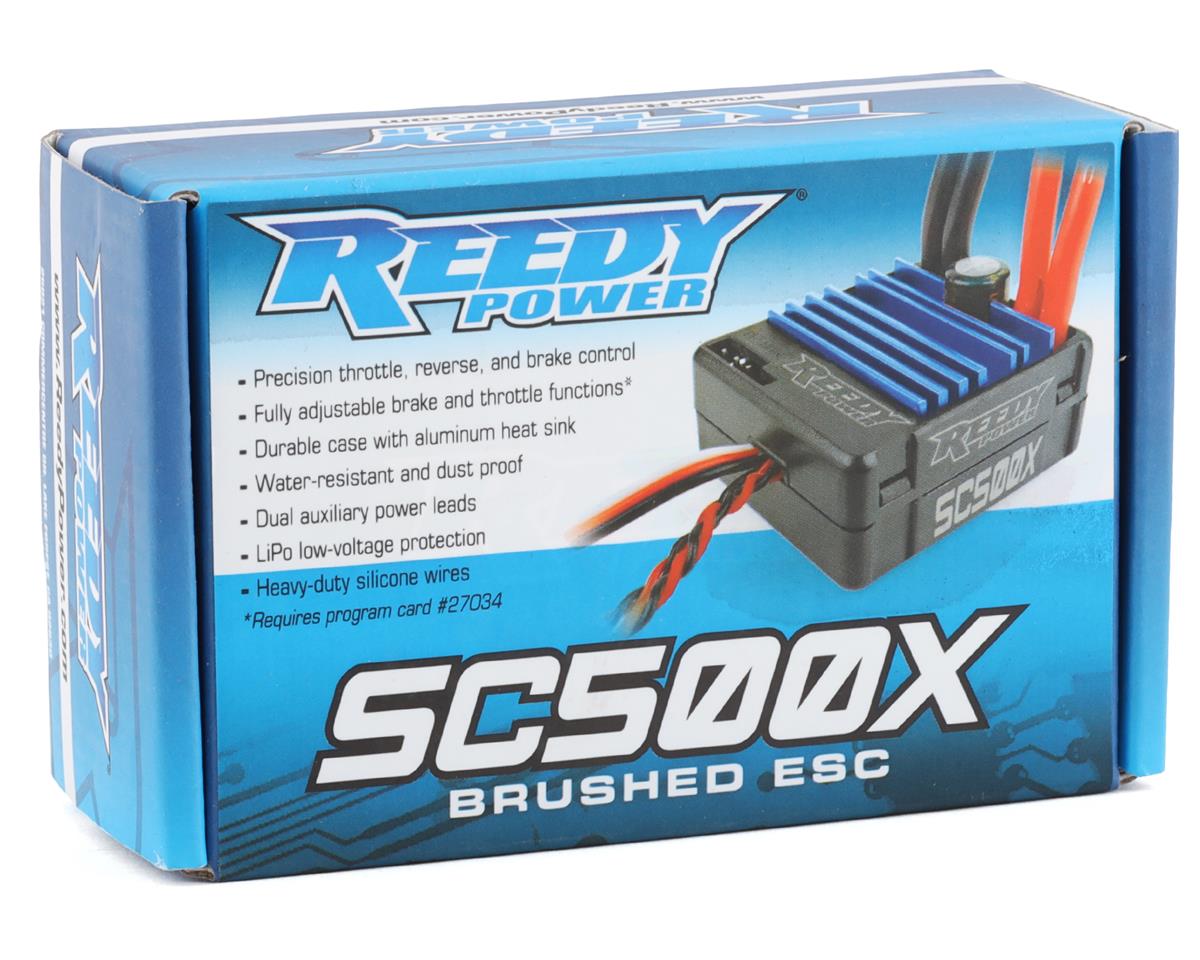

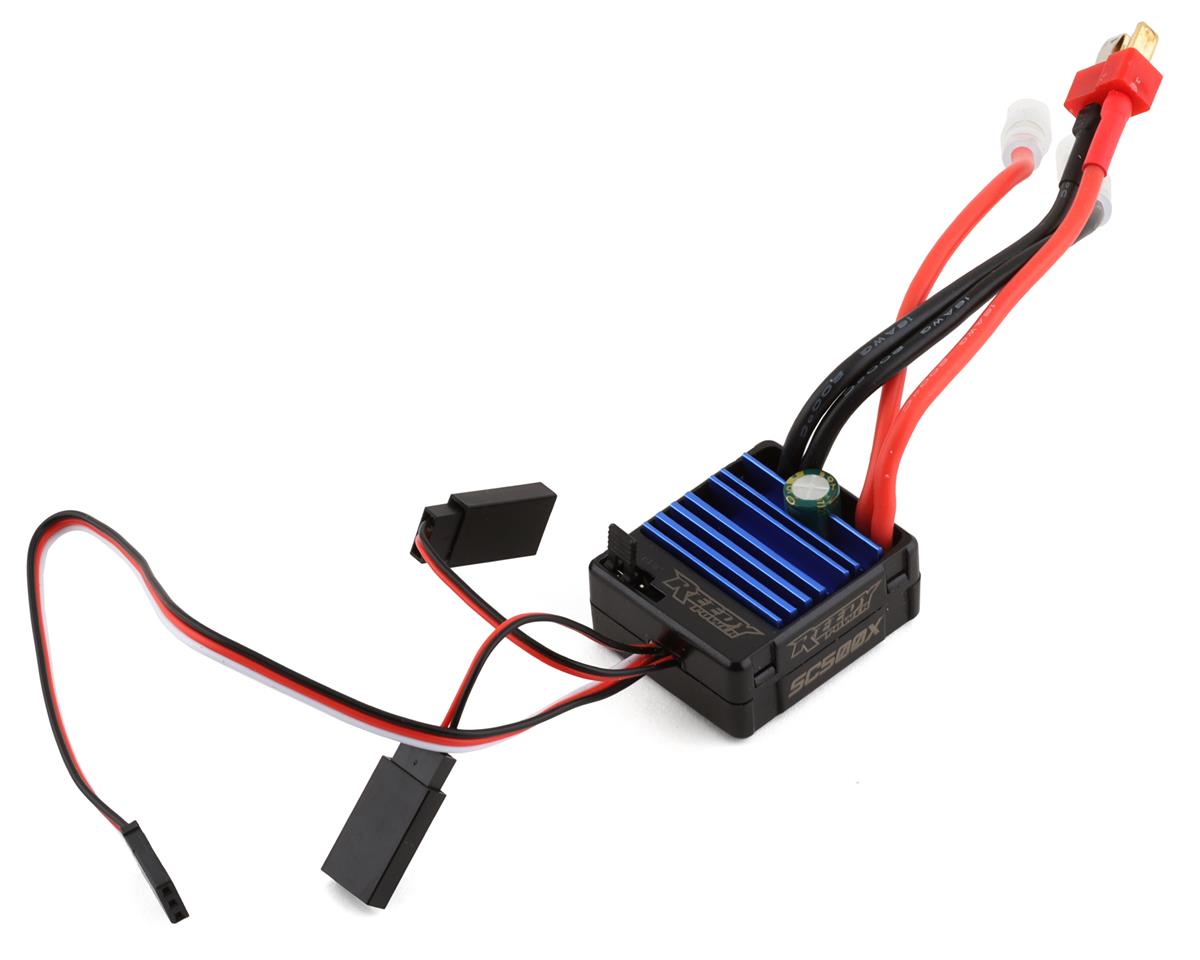

Reedy SC500X Brushed ESC

The Reedy SC500X Brushed ESC is designed for most 1/10 scale brushed motor applications, including rock crawling. It provides precision throttle, reverse, and brake control, with adjustable brake and throttle functions available through the ASC27034 programming card.

Features

• Water-resistant and dust-proof construction
• Dual auxiliary power leads
• Durable case with aluminum heat sink
• LiPo low-voltage protection
• Heavy-duty silicone wires
• Low-resistance T-plug connector
• Bullet motor connectors
• Forward/Brake/Rev operation

Specifications

• Voltage: 2-3S LiPo, 5-9 NiMH
• Current (A): 80 cont./320 burst
• Resistance (Ohms): 0.0014
• Motor Limit, 2S LiPo/5-6 NiMH: 540/550 12T 3-slot; 8T 5-slot
• Motor Limit, 3S LiPo 7-9 NiMH: 540/550 15T 3-slot; 10T 5-slot
• Low-Voltage Cutoff: Yes
• Dimensions (mm): 32 x 37 x 18
• Weight (g): 43
• BEC: 7.4V/5A
• Power Wires: 16-gauge
• Connector: Battery-T-plug, Motor-Bullet, Aux-FUT-J

Note: Additional programming features can only be accessed by using the ASC27034 programming card.
