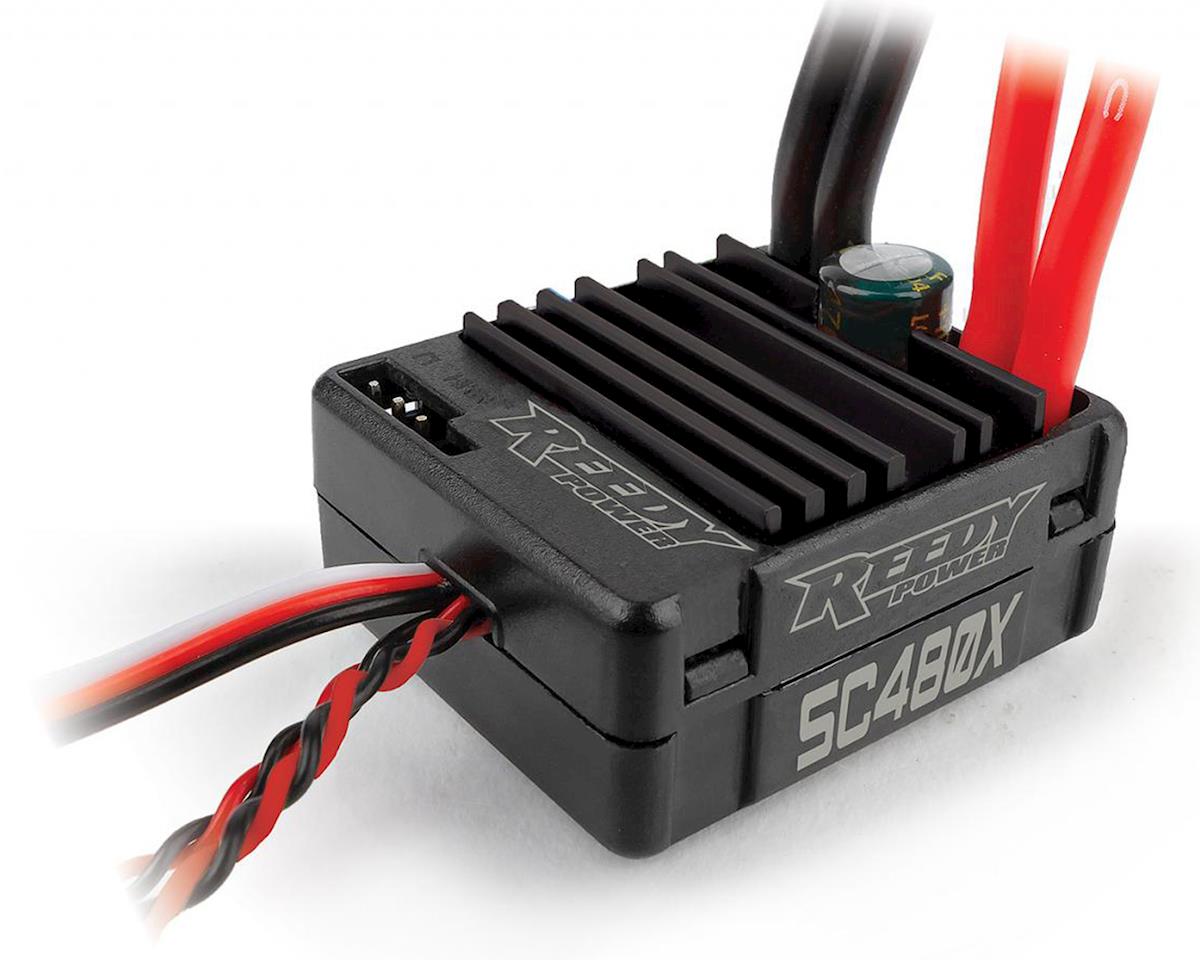

Reedy SC480X 1/10 Scale Brushed Crawler ESC

The Reedy SC480X is a 1/10 scale brushed ESC designed for crawler and trail truck operation. It provides precision throttle, reverse, and brake control, with pre-programmed settings for straightforward setup and optional adjustment using Program Card #27034.

Features

• Crawler and trail truck operation
• Dual auxiliary power leads
• Durable case with aluminum heat sink
• Water-resistant and dust proof
• Fully adjustable brake and throttle functions with optional Program Card #27034
• LiPo low-voltage protection
• Heavy-duty silicone wires
• Low-resistance T-plug battery connector
• Bullet motor connectors

Specifications

• Cells: 2-3 LiPo, 5-9 NiMH
• Current: 80 cont./320 burst
• Resistance: 0.0014
• Motor Limit, 2S LiPo/5-6 NiMH: 540/550 12T 3-slot; 8T 5-slot
• Motor Limit, 3S LiPo/7-9 NiMH: 540/550 15T 3-slot; 10T 5-slot
• Low-Voltage Cutoff: Yes
• Dimensions: 32 x 37 x 18 mm
• Weight: 43 g
• BEC: 7.4V/5A
• Power Wires: 16-gauge
• Connectors: Battery: T-plug. Motor: Bullet. Aux: FUT-J.

Programmable Settings

Using optional Program Card #27034, the SC480X can be adjusted for initial drive, low-voltage cutoff, drag brake, maximum reverse power, and punch control.

• Initial Drive: 2%, 5%*, 10%, 15%
• Low Voltage Cutoff: 3.2, 3.3, 3.4* V/cell
• Drag Brake: 0%, 50%, 75%, 100%*
• Max Reverse Power: 50%, 75%*, 100%
• Punch Control: Soft*, Medium, Strong
