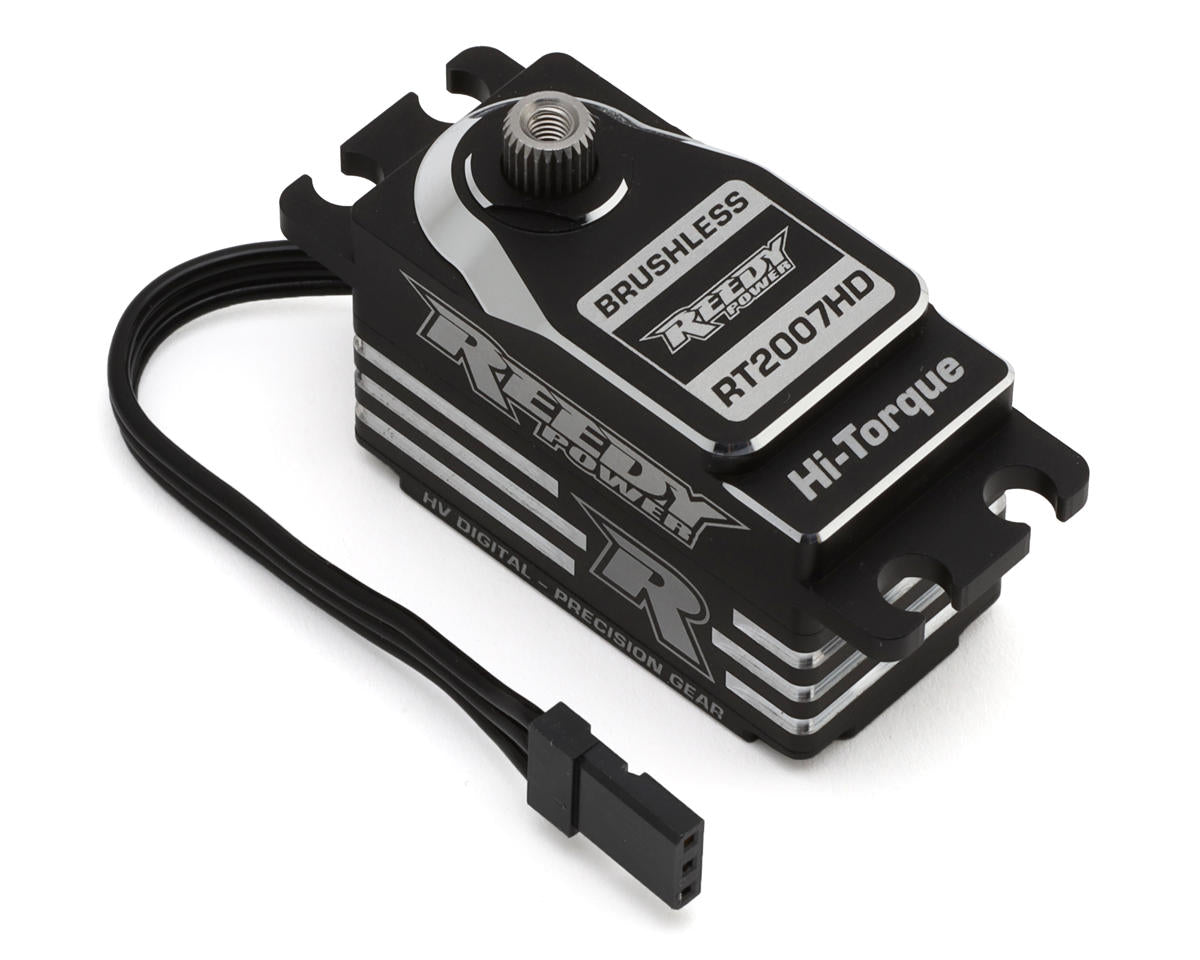

Reedy RT2007HD Low-Profile Brushless Hi-Torque Aluminum Servo (High Voltage)

The Reedy RT2007HD Low-Profile Brushless Hi-Torque Aluminum Servo delivers high-voltage performance for 1/10 applications, with a brushless motor, steel gears, and a CNC-machined aluminum case with cooling fins.

Features

• Brushless motor
• High torque for precise control
• Steel gears
• Aluminum case with cooling fins
• Waterproof design
• Supports input voltage from 6.0-8.4V
• 25T output shaft spline

Specifications

• Application: 1/10
• Input Voltage: 6.0-8.4V
• Operating Speed @ 7.4V: .085 sec/60°
• Operating Speed @ 8.4V: .070 sec/60°
• Dynamic Torque @ 7.4V: 271 oz-in (19 Kg-cm)
• Dynamic Torque @ 8.4V: 278 oz-in (20 Kg-cm)
• Gear Material: Steel
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.6x0.80x1.04in (40.8x20.2x26.5mm)
• Weight: 2.05oz (58.2g)

Includes

• (1) RT2007HD Low-Profile Brushless Hi-Torque Servo (High Voltage)

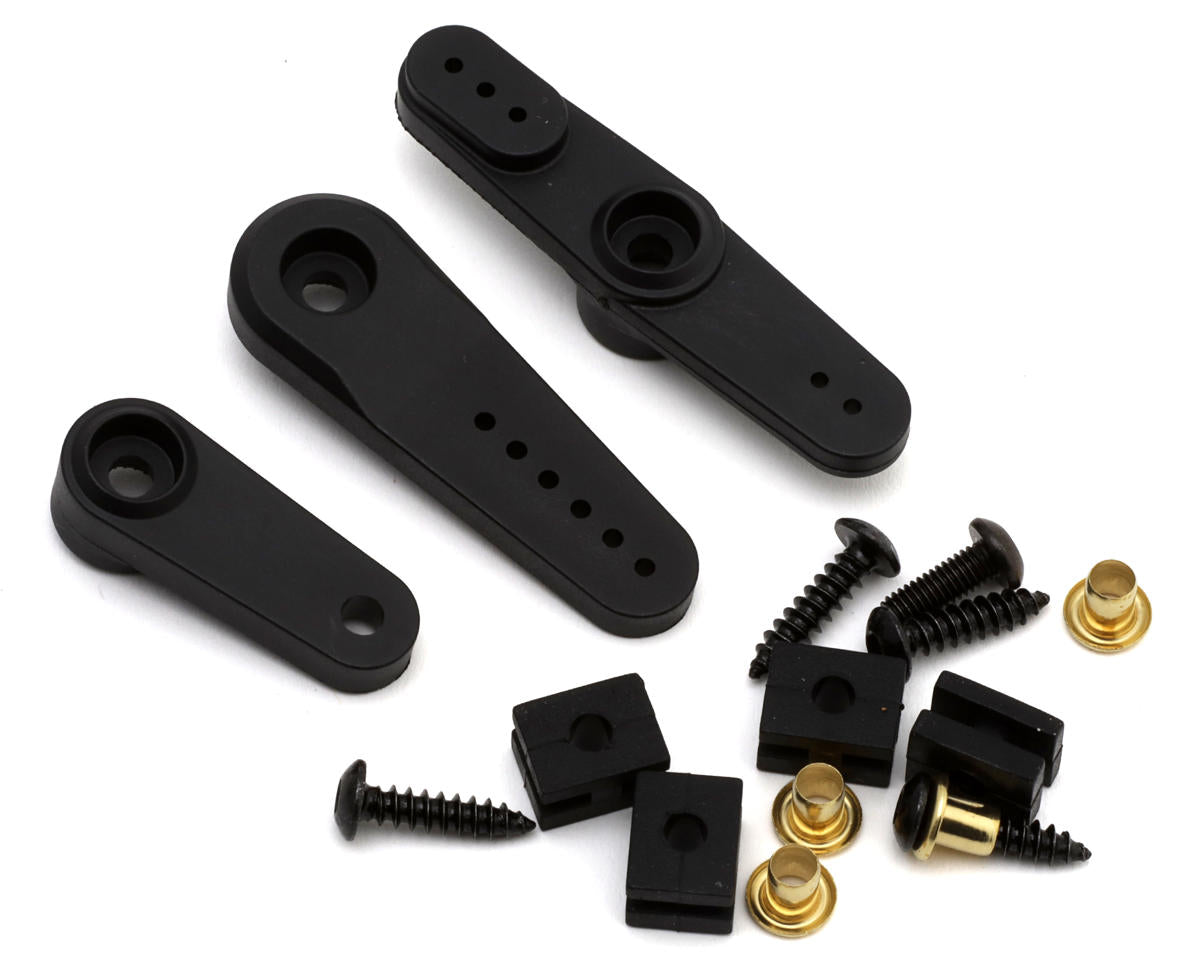

• Composite Servo Horns & Accessories
