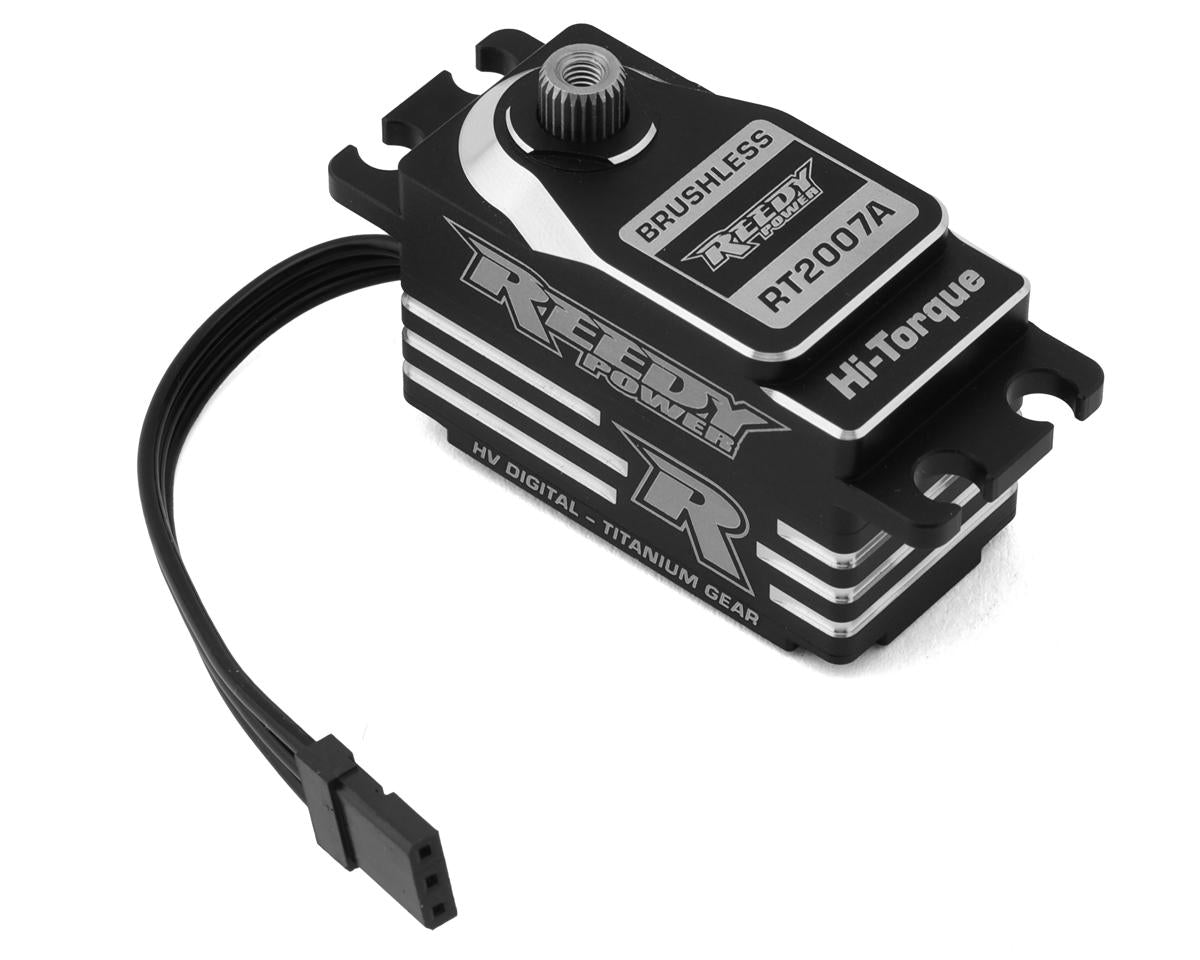

Reedy RT2007A Low-Profile Brushless Hi-Torque Servo (High Voltage)

The Reedy RT2007A is a low-profile, high-voltage brushless servo with an aluminum case, waterproof construction, precise metal gears, and dual ball bearings. Its 25T spline and operating voltage range of DC 4.8-8.4V make it a capable option for RC applications requiring high torque in a compact package.

Features

• Aluminum low-profile case
• Brushless motor
• Waterproof construction
• Precise metal gears
• Dual ball bearings
• High-voltage compatible

Specifications

• Speed: @6.0V: 0.090sec/60°; @7.4V: 0.085sec/60°; @8.4V: 0.070sec/60°
• Torque: @6.0V: 236oz-in (17kg-cm); @7.4V: 271oz-in (19.5kg-cm); @8.4V: 278oz-in (20kg-cm)
• Dimensions: 1.6x0.79x1.04in (40.8x20.2x26.5mm)
• Motor: Brushless
• Weight: 57.2g
• Operating Voltage: DC 4.8-8.4V
• Operating Spline: 25T

Includes

• (1) Reedy RT2007A Low-Profile Hi-Torque HV Servo
