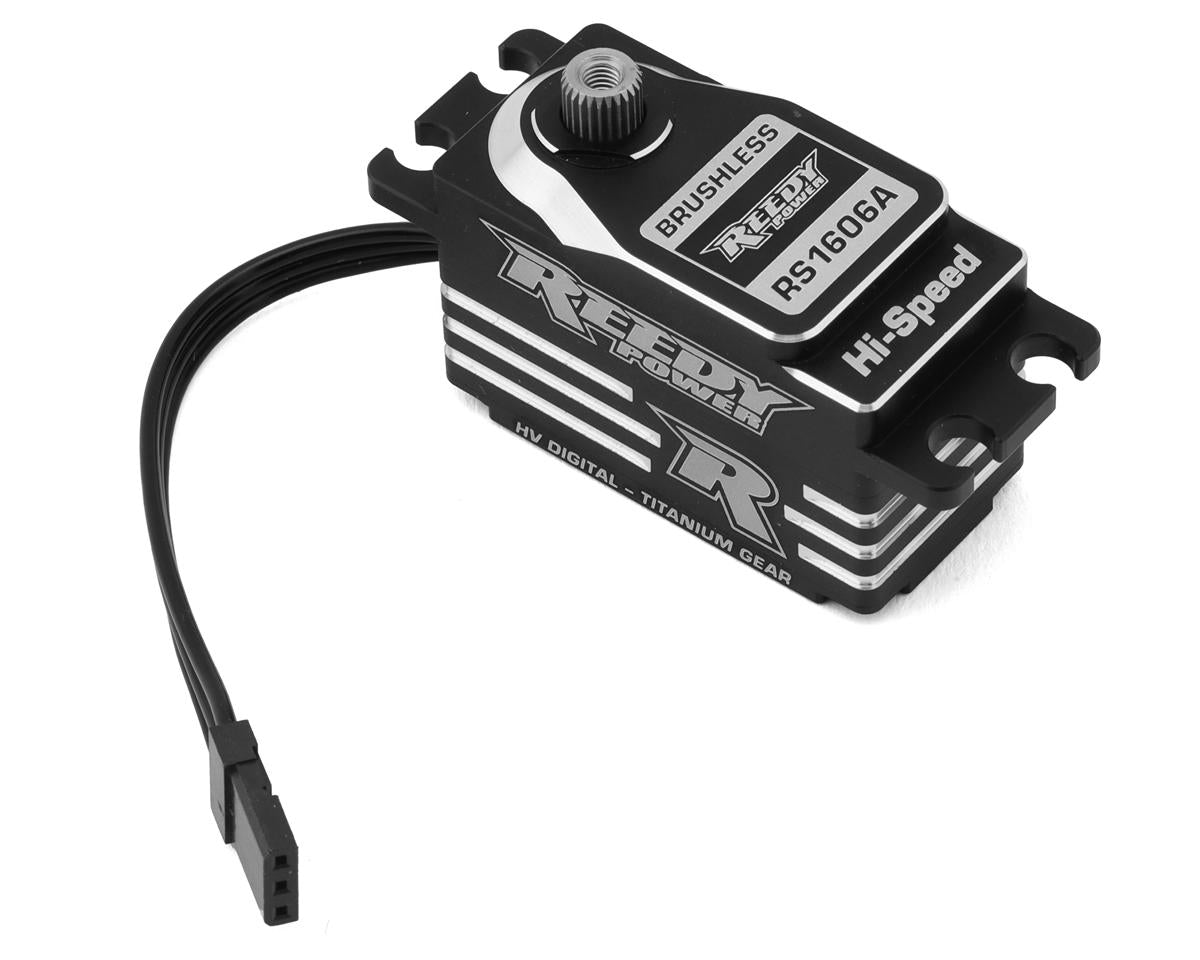

Reedy RS1606A Low-Profile Brushless Hi-Speed Servo (High Voltage)

The Reedy RS1606A is a low-profile, high-voltage brushless servo with an aluminum case, waterproof construction, precise metal gears, and dual ball bearings. Its 25T operating spline and DC 4.8-8.4V operating voltage support a range of RC applications.

Features

• Aluminum low-profile case
• Brushless motor
• Waterproof construction
• Precise metal gears
• Dual ball bearings
• High-voltage compatible

Specifications

• Speed: @6.0V: 0.070sec/60°; @7.4V: 0.065sec/60°; @8.4V: 0.058sec/60°
• Torque: @6.0V: 180oz-in (13kg-cm); @7.4V: 201oz-in (14.5kg-cm); @8.4V: 222oz-in (16kg-cm)
• Dimensions: 1.6x0.79x1.04in (40.8x20.2x26.5mm)
• Motor: Brushless
• Weight: 57.2g
• Operating Voltage: DC 4.8-8.4V
• Operating Spline: 25T

Includes

• (1) Reedy RS1606A Low-Profile Brushless HV Servo
