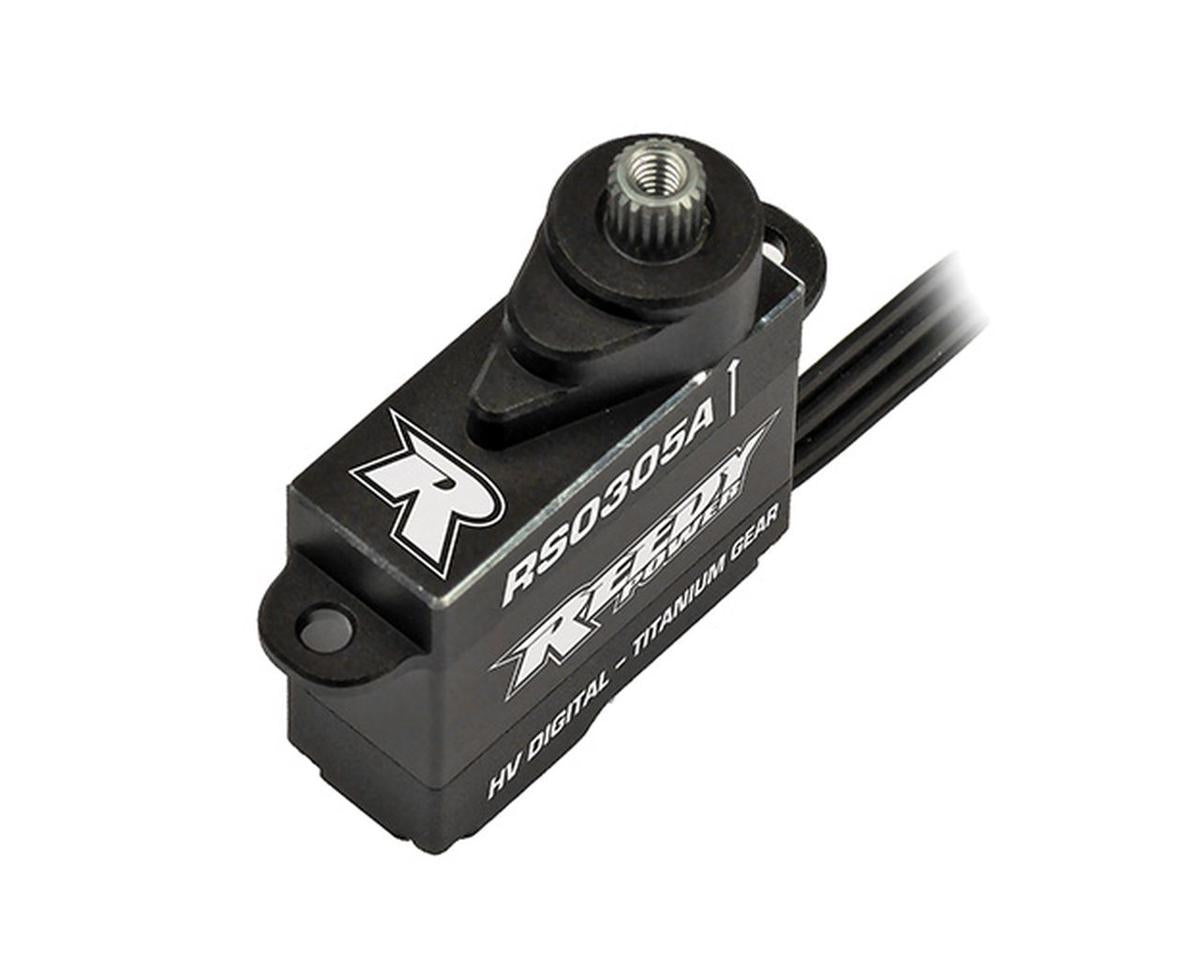

Reedy RS0305 Micro Hi-Speed Metal Gear Servo

The Reedy RS0305 Micro Hi-Speed Metal Gear Servo is designed for micro 1:28 scale R/C car racing. It combines a coreless motor, advanced microprocessor control, CNC-machined aluminum case, and titanium and steel gears in a compact 7g servo.

Features

• Coreless motor for fast steering response
• Speed of 0.066 sec/60deg at 6.0V, 0.058 sec/60deg at 7.4V, and 0.052 sec/60deg at 8.4V
• High-voltage input range of 4.8 - 8.4V
• CNC-machined aluminum case
• Titanium and steel gear set
• Compact design for micro 1:28 scale R/C car applications

Specifications

• Input: 4.8 - 8.4V
• Motor: Coreless
• Speed: 6.0V / .066, 7.4V / .058, 8.4V / .052 sec/60deg
• Torque: 6.0V / 2.2-30.6, 7.4V / 2.6/36.1, 8.4V / 3.0/41.7 kg-cm/oz-in
• Dimensions: 20x8x17.8 mm
• Weight: 7 g
• Spline: 20 / 4mm
• Wire: JST1.5/50mm
