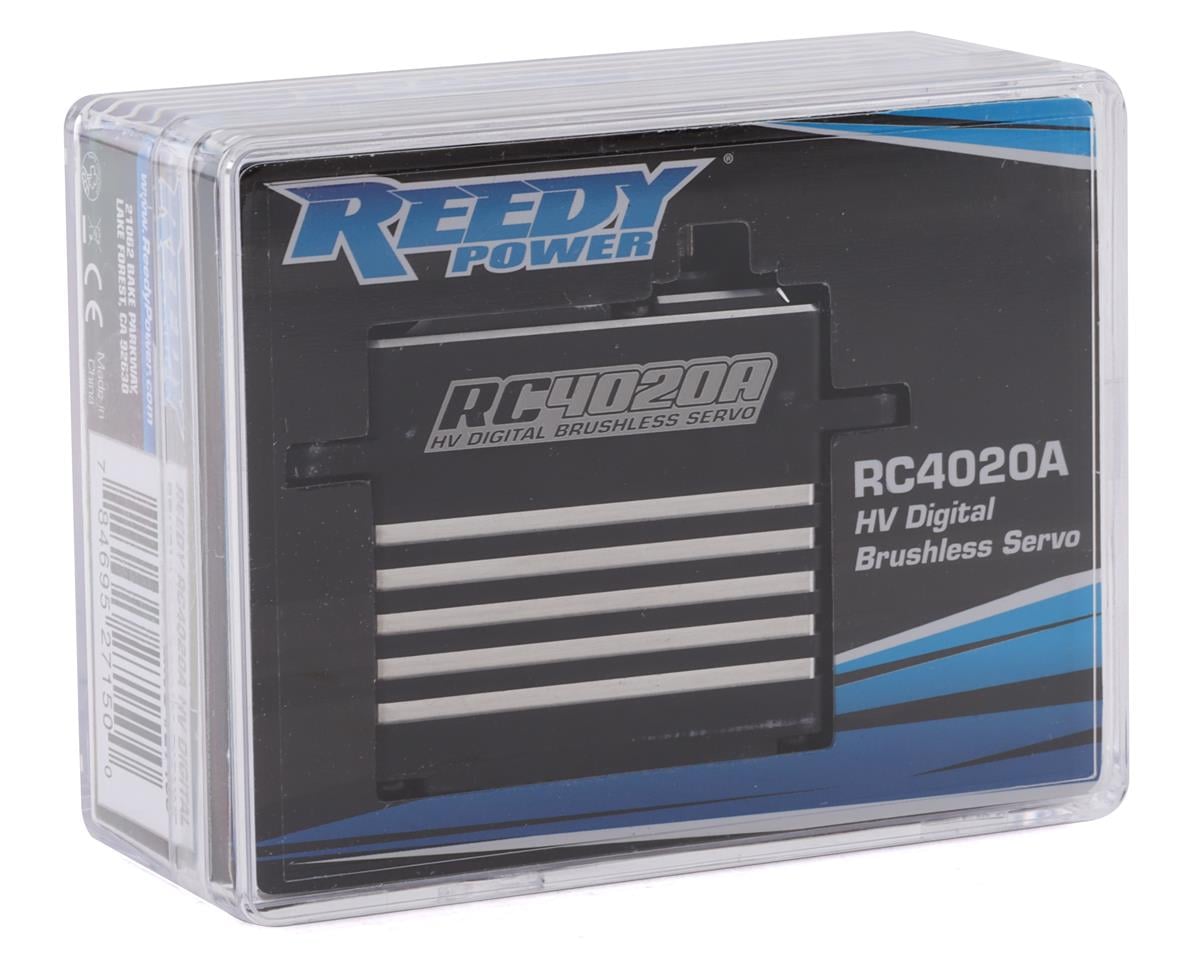

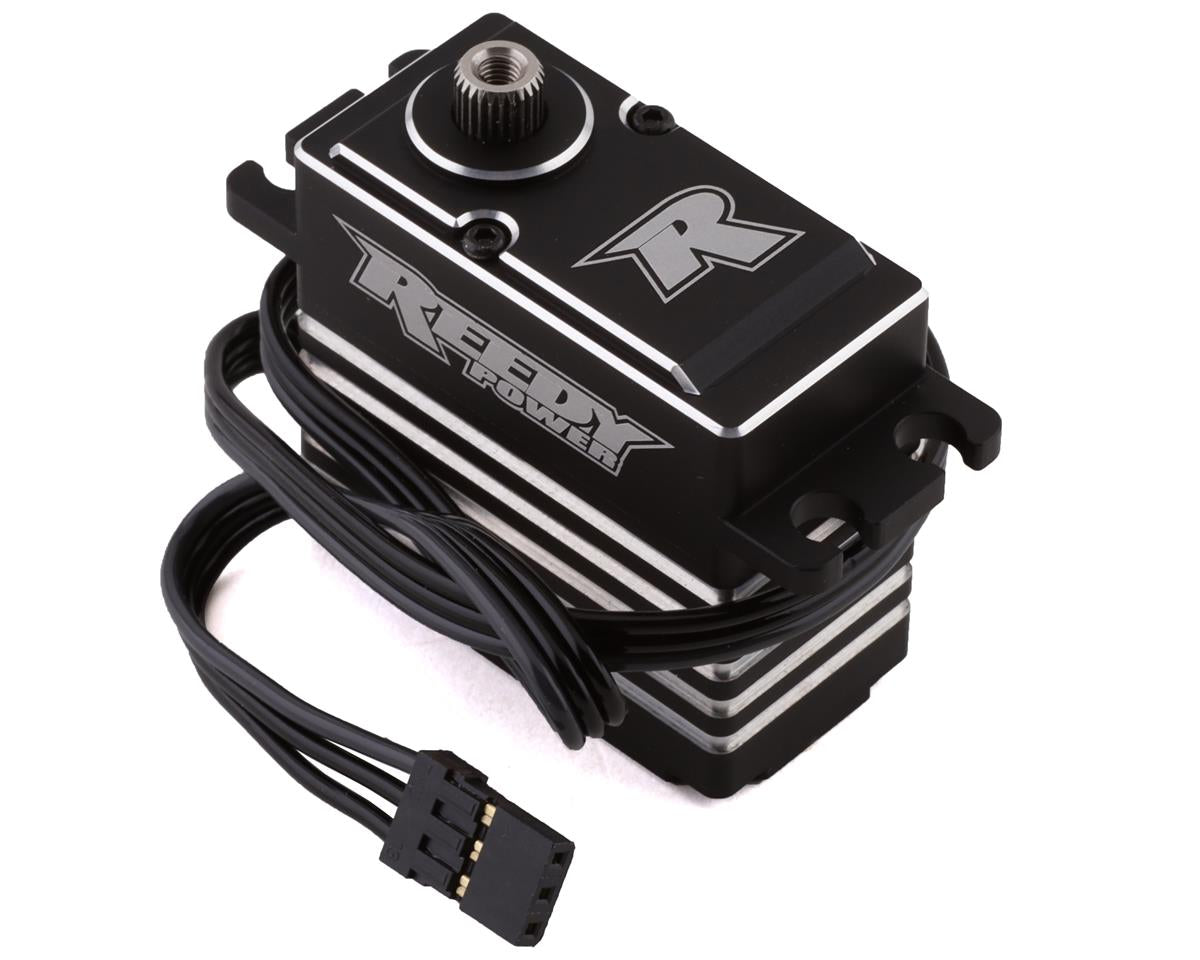

Reedy RC4020A Digital Competition Crawler Metal Gear Servo (High Voltage)

The Reedy RC4020A Digital Competition Crawler Metal Gear Servo is designed for competition-level trail trucks, crawlers, and monster trucks. Its brushless motor, advanced microprocessor, all-metal gear set, and CNC-machined full-aluminum case deliver precise steering control with strength and durability.

With HV 8.4V compatibility, an external BEC can be used to achieve up to 50 kg-cm (695 in-oz) of torque.

Specifications

• Input: 4.8 - 8.4V
• Motor: Brushless
• Speed at 6.0V: .150 sec/60deg
• Speed at 7.4V: .135 sec/60deg
• Speed at 8.4V: .12 sec/60deg
• Torque at 6.0V: 37/514 kg-cm/oz-in
• Torque at 7.4V: 44/612 kg-cm/oz-in
• Torque at 8.4V: 50/695 kg-cm/oz-in
• Dimensions: 40x20x37.5mm
• Weight: 82g
• Spline: 25
