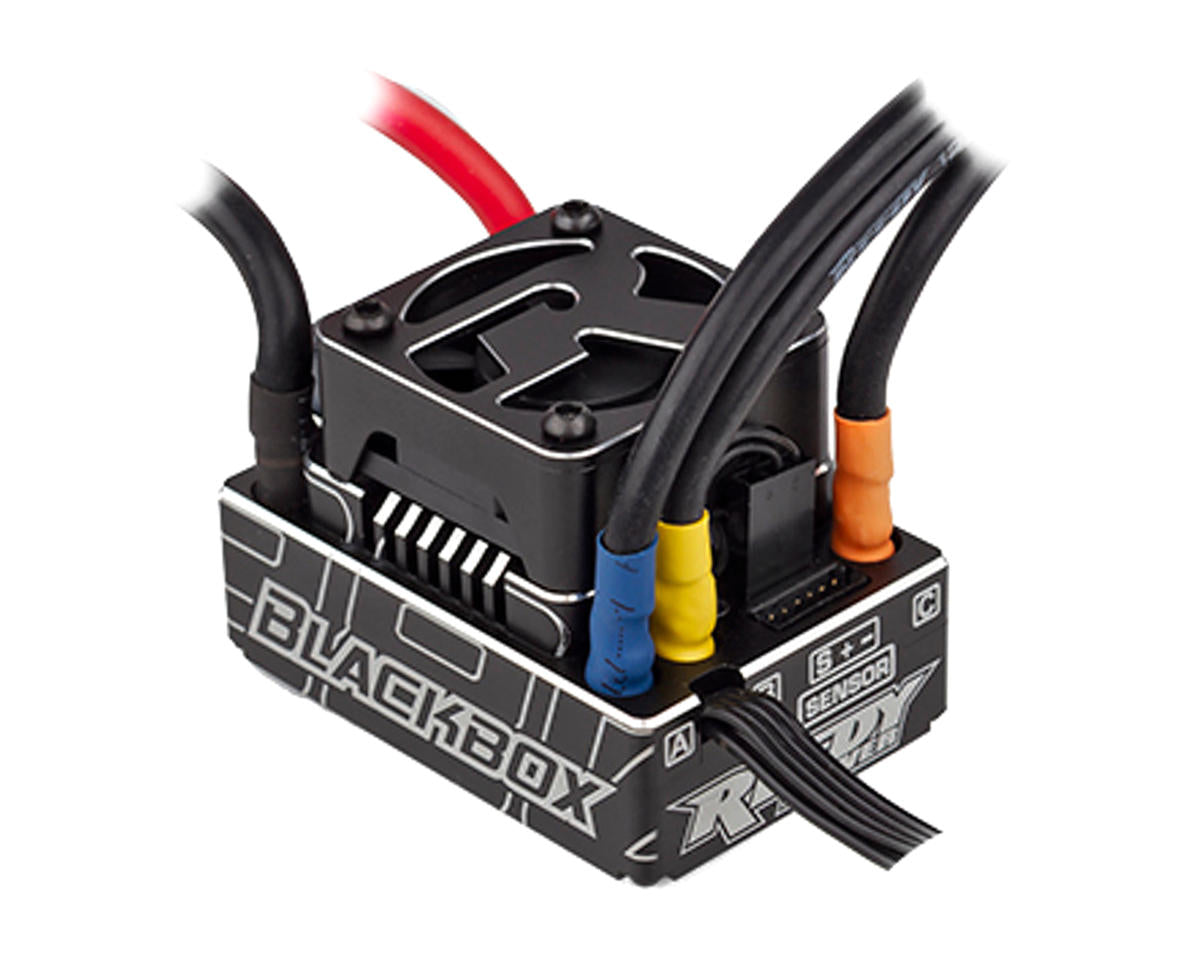

Reedy Blackbox 880R Competition 1/8 Sensored Brushless ESC

The Reedy Blackbox 880R Competition ESC is designed for 1/8 buggies, truggies, and 1/10 short course vehicles. It supports sensored or sensorless brushless motors and delivers 180A continuous current with 700A peak current.

Features

• 32-bit microcontroller unit (MCU)
• CNC aluminum case with built-in heatsink
• 30mm cooling fan with shroud
• Adjustable brake and throttle settings
• Standard and Expert tuning modes
• Adjustable BEC voltage from 6.0V to 7.4V
• Built-in power capacitors and heavy-duty wires
• Supports firmware updates and data logging
• Motor reverse and thermal protection
• Programmable with the optional Blackbox Programmer2

Specifications

• Suggested Application: 1/8 Buggies, Truggies & 1/10 Short Course
• Motor Type: Brushless - Sensored/Sensorless
• Input Voltage: 2-4S LiPo (7.4-14.8V)
• Continuous Current: 180A
• Peak Current: 700A
• Dimensions (LxWxH): 2.12x1.45x0.9in (54x37x23mm)
• Weight: 1.58oz (45g)
• Motor Limits: 2400kV with 4S Lipo
• BEC Voltage: 6.0/7.4V
• BEC Continuous Current: 5A
• BEC Peak Current: -
• Motor Connector: Solder
• Battery Connector: Solder
• Programmable: Yes, with Blackbox Programmer2

Includes

• (1) Reedy Blackbox 880R Competition 1/8 Sensored Brushless ESC
• (1) Manual

Programming Note

To program the Blackbox 880R, Programmer2 (#27027) with firmware EE460145 must be used. This version is already installed when purchasing the 880R/Programmer2 combo.
