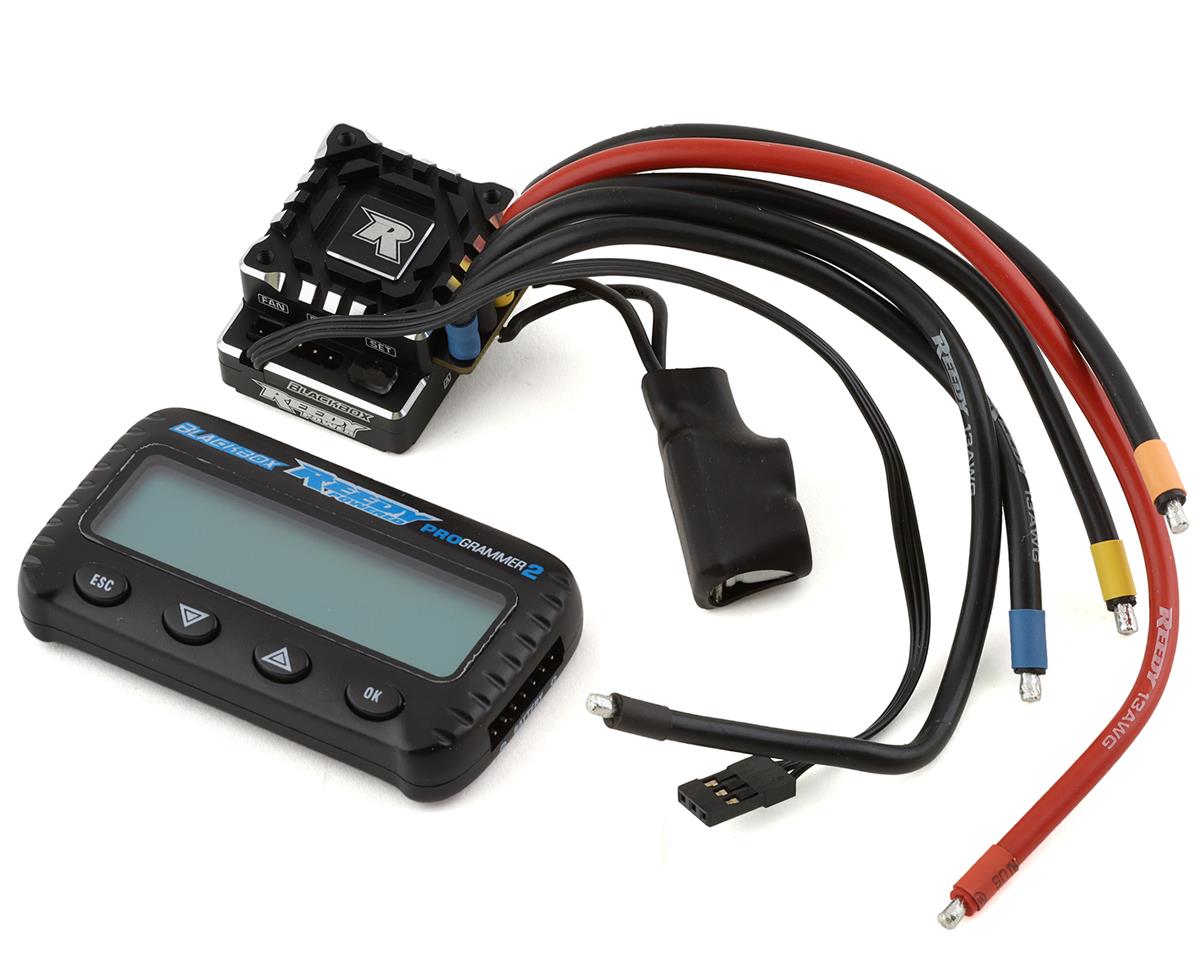

Reedy Blackbox 610R Competition ESC w/Programmer

The Reedy Blackbox 610R 2S Competition ESC combines 32-bit control hardware with adjustable throttle, brake, power, and safety settings for 1:10 racing applications. This combo includes the Blackbox PROgrammer2 for setup adjustment, battery monitoring, and USB firmware updates.

Features

• CNC-machined black aluminum case with integrated heat sink
• Precision throttle and brake control
• Blinky mode with ROAR approved software
• Ultra-low resistance FET board
• On-board power button
• 32-bit microcontroller unit (MCU)
• Solder tabs with 13-gauge power wires
• Pro external capacitor board
• RPM and ESC temperature data logging with Blackbox PROgrammer2
• Firmware updateable with Blackbox PROgrammer2

Adjustable Functions

• Brake strength, frequency, drag brake, initial brake, and punch
• Dynamic Drag Brake settings
• Drive frequency, punch, initial throttle, current limit, and dead band
• Acceleration boost and top speed timing
• Forward/Brake or Forward/Brake/Reverse operation
• BEC output voltage, low voltage cutoff, and overheat protection settings
• Motor rotation direction
• Two independently saved tuning modes: Standard and Expert

Specifications

• Voltage Input: 2S LiPo
• Suggested Applications: 1:10 off-road, 1:10 on-road
• Resistance: 0.00043 ohms
• Continuous Current: 160A
• Dimensions: 38.5x36.9x19.5mm
• Motor Limit: 4.5T
• Weight w/o wires & fan: 45g
• BEC: Adjustable 6.0-7.4V/5A
• Power Wires: 13-gauge silicone
• Fan: Optional

Programming the Blackbox 610R requires the ASC27027 Programmer with firmware version EE460139. This version is installed with the ASC27017 610R/Programmer combo.
