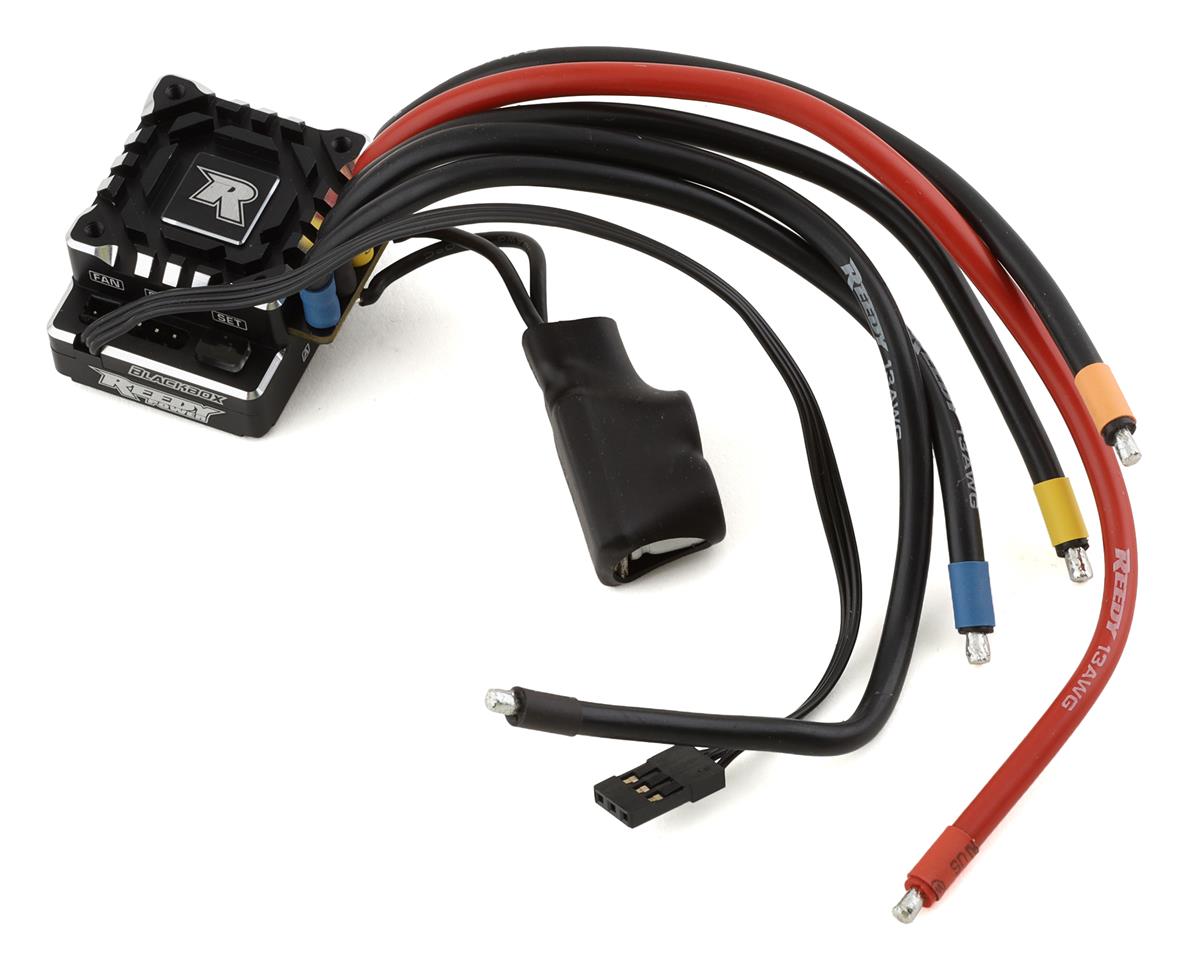

Reedy Blackbox 610R Competition ESC

The Reedy Blackbox 610R 2S Competition ESC is designed for stock and modified 1/10 applications, with 32-bit control hardware, adjustable settings, and ROAR-approved blinky mode software.

Features

• CNC-machined black aluminum case with integrated heat sink
• Fully adjustable brake, throttle, power, and safety functions when used with the Blackbox PROgrammer2 (ASC27027)
• Precision throttle and brake control
• Ultra-low resistance FET board
• On-board power button
• 32-bit microcontroller unit (MCU)
• Solder tabs with 13-gauge power wires
• Pro external capacitor board
• RPM and ESC temperature data logging with the Blackbox PROgrammer2 (ASC27027)
• Firmware updateable with the Blackbox PROgrammer2 (ASC27027)
• Optional fan

Adjustability

When paired with the optional Blackbox PROgrammer2 (ASC27027), the 610R provides Standard and Expert tuning modes. Adjustable functions include brake strength, frequency, drag brake, initial brake, brake punch, drive frequency, throttle punch, initial throttle, current limit, dead band, acceleration boost, top speed timing, operating mode, BEC output voltage, low voltage cutoff, over-temperature protection, and motor rotation.

Programming the Blackbox 610R requires the ASC27027 Programmer with firmware version EE460139. The Blackbox PROgrammer2 is not included.

Specifications

• Voltage Input: 2S LiPo
• Suggested Applications: 1:10 off-road, 1:10 on-road
• Resistance: 0.00043 ohms
• Continuous Current: 160A
• Dimensions: 38.5x36.9x19.5mm
• Motor Limit: 4.5T
• Weight: 45g without wires and fan
• BEC: Adjustable 6.0-7.4V/5A
• Power Wires: 13-gauge silicone
