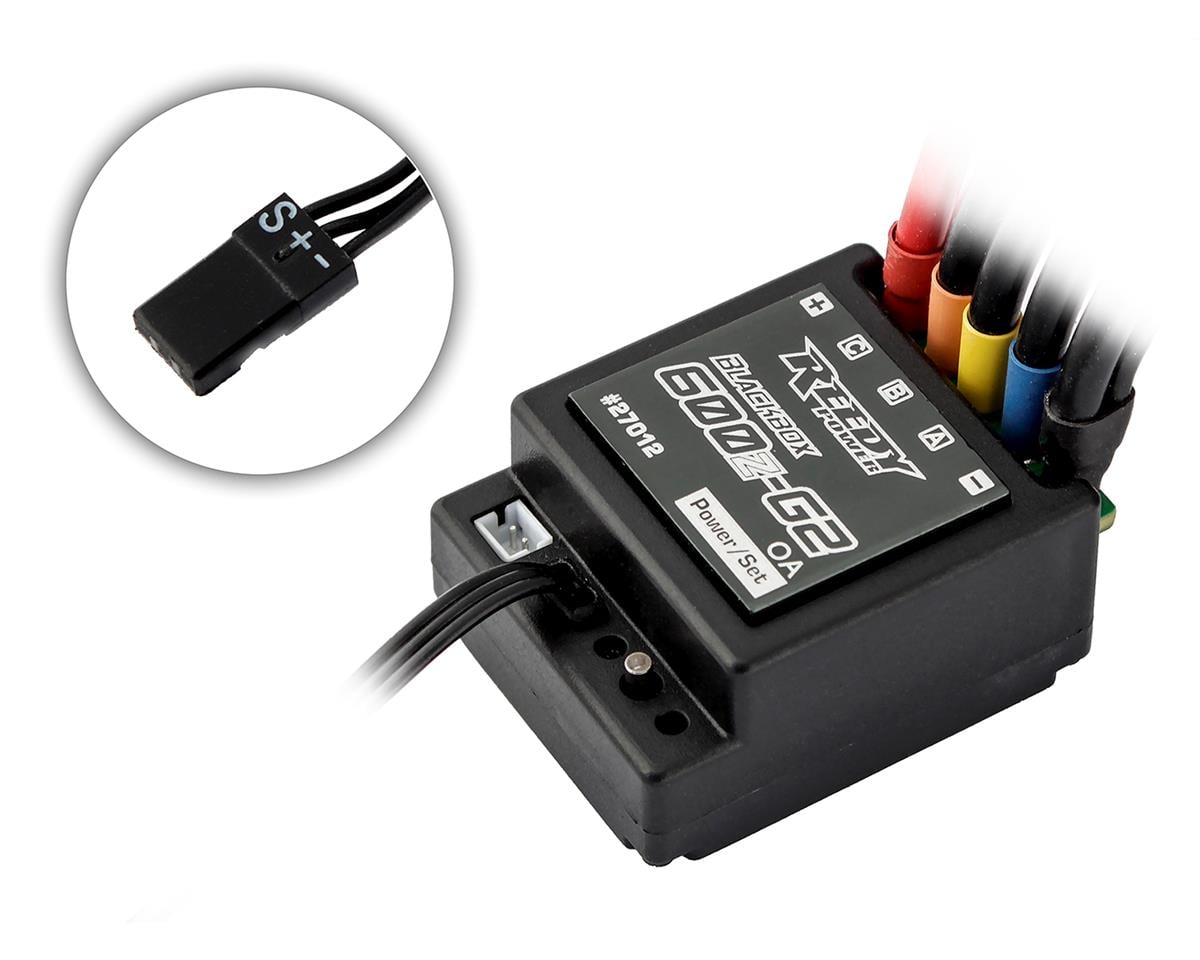

Reedy Blackbox 600Z-G2 2S Zero-Timing ESC

The Reedy Blackbox 600Z-G2 2S Zero-Timing ESC combines a compact, lightweight design with adjustable throttle and brake functions for entry-level and cost-controlled racing applications.

Features

• Lightweight plastic case with compact footprint
• Low-profile heat sink
• Fully adjustable brake and throttle functions
• On-board, single-button programming
• Optional Programmer2 programming
• Zero-timing R.O.A.R.-approved software (pending)
• Low-resistance circuitry
• Precision throttle and brake control
• Solder tabs for easy wire placement
• Silicone power wires
• Compact external capacitor
• Firmware updateable
• Competition proven

Adjustable Settings

• Operation Mode: Select Forward/Brake (F/B) or Forward/Brake/Reverse (F/B/R) operation.
• Drag Brake: Adjust automatic braking strength when the throttle trigger is returned to neutral.
• Power Profile: Increase or decrease punch.
• Drive Frequency: Adjust for a smoother or more aggressive throttle feel.
• Brake Frequency: Adjust for a smoother or more aggressive brake feel.
• Restore Default: Restore the factory default settings.

Specifications

• Voltage Input: 2S LiPo
• On Resistance: 0.0018
• Continuous Current: 60
• Dimensions: 40.2x31.0x18.8mm
• Weight w/o Wires: 37g
• Motor Limit: 13.5T
