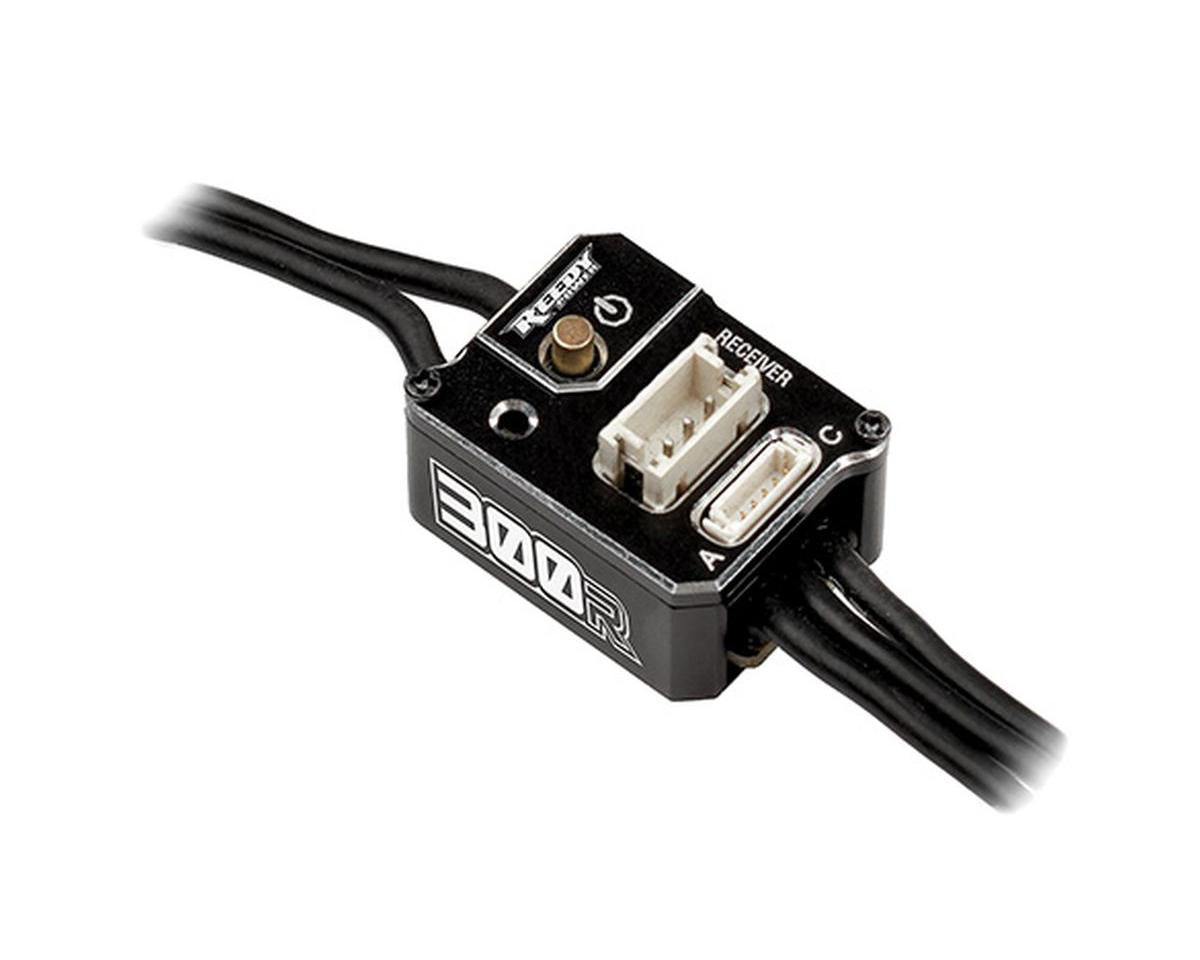

Reedy Blackbox 300R Competition Micro Brushless ESC

The Reedy Blackbox 300R Competition Micro Brushless ESC is designed for 1/24-1/28 platforms and combines a compact footprint with adjustable race-focused controls. It offers precision linear throttle response, adjustable brake and throttle settings, boost and turbo timing, BEC output voltage, and programmable low voltage cutoff.

Features

• CNC machined black aluminum case
• Compact, lightweight micro footprint
• Fully adjustable brake and throttle settings
• Adjustable boost and turbo timing
• Precision linear throttle response
• On-board power button
• Flexible silicone power wires
• Adjustable BEC output voltage
• Programmable low voltage cutoff
• Overheat protection adjustability

Specifications

• Suggested Application: 1/24-1/28
• Motor Type: Brushless
• Input Voltage: 2S LiPo (7.4V)
• Continuous Current: 30A
• Burst Current: 80A
• Dimensions (LxWxH): 0.82x0.54x0.43in (21x13.8x11mm)
• Weight: 0.26oz (7.6g)
• Motor Limits: 6800kV
• BEC Voltage: 6.0/7.4V (Adjustable)
• BEC Continuous Current: -
• BEC Peak Current: 3A
• Motor Connector: -
• Battery Connector: -
• Motor Wire: -
• Battery Wire: -
• Programmable: Yes

Includes

• (1) Blackbox 300R Competition Micro Brushless ESC
