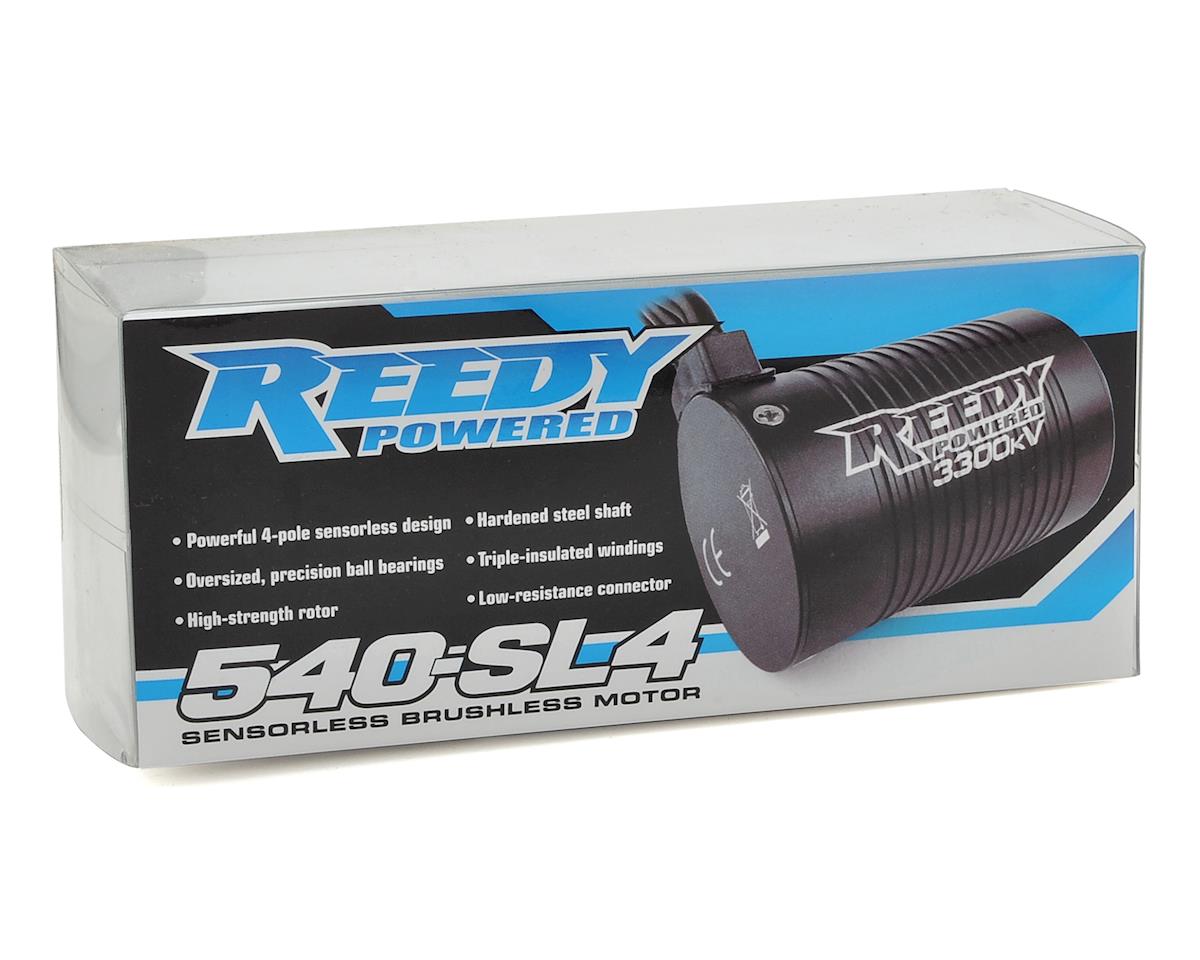

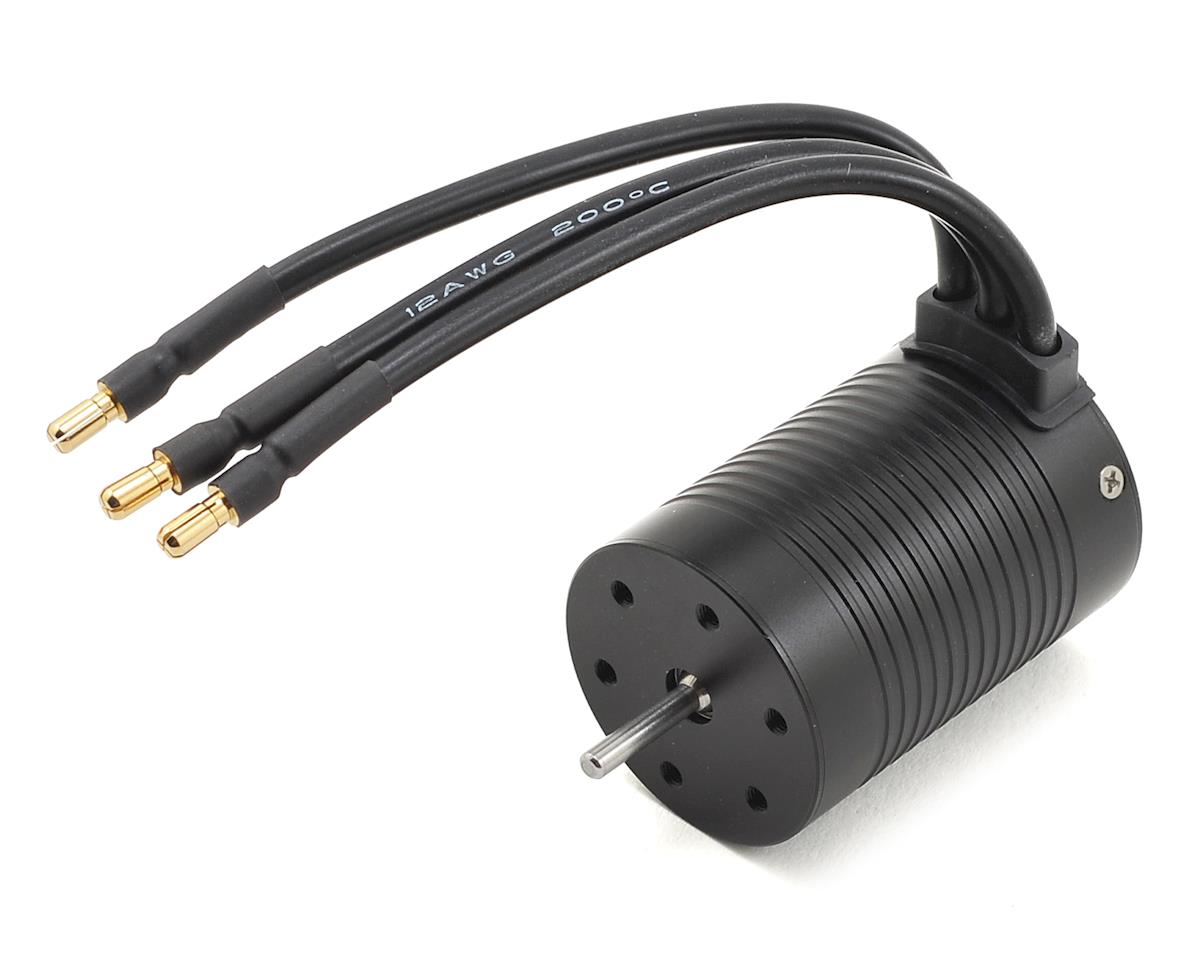

Reedy 540-SL4 Sensorless 4-Pole Brushless Motor (3300kV)

The Reedy 540-SL4 is a sensorless 4-pole brushless motor with a 3300kV rating for 1:10 buggies, trucks, and touring cars. It features a high-strength rotor, hardened steel shaft, oversized precision ball bearings, and triple insulated windings.

Features

• 4-pole sensorless design
• 3300kV rating
• High-strength rotor
• Oversized precision ball bearings
• Hardened steel shaft
• Triple insulated windings
• Flexible 12-gauge silicone power wires
• 3.5mm low-resistance connectors

Specifications

• Cells: 2-3 LiPo, 4-9 NiMH
• Applications: 1:10 buggy, truck, touring car
• Dimensions: 52mm x 36mm
• Shaft Diameter: 3.17mm (1/8")
• Weight: 211g
• Power Wires: 12-gauge silicone
• Connectors: 3.5mm
