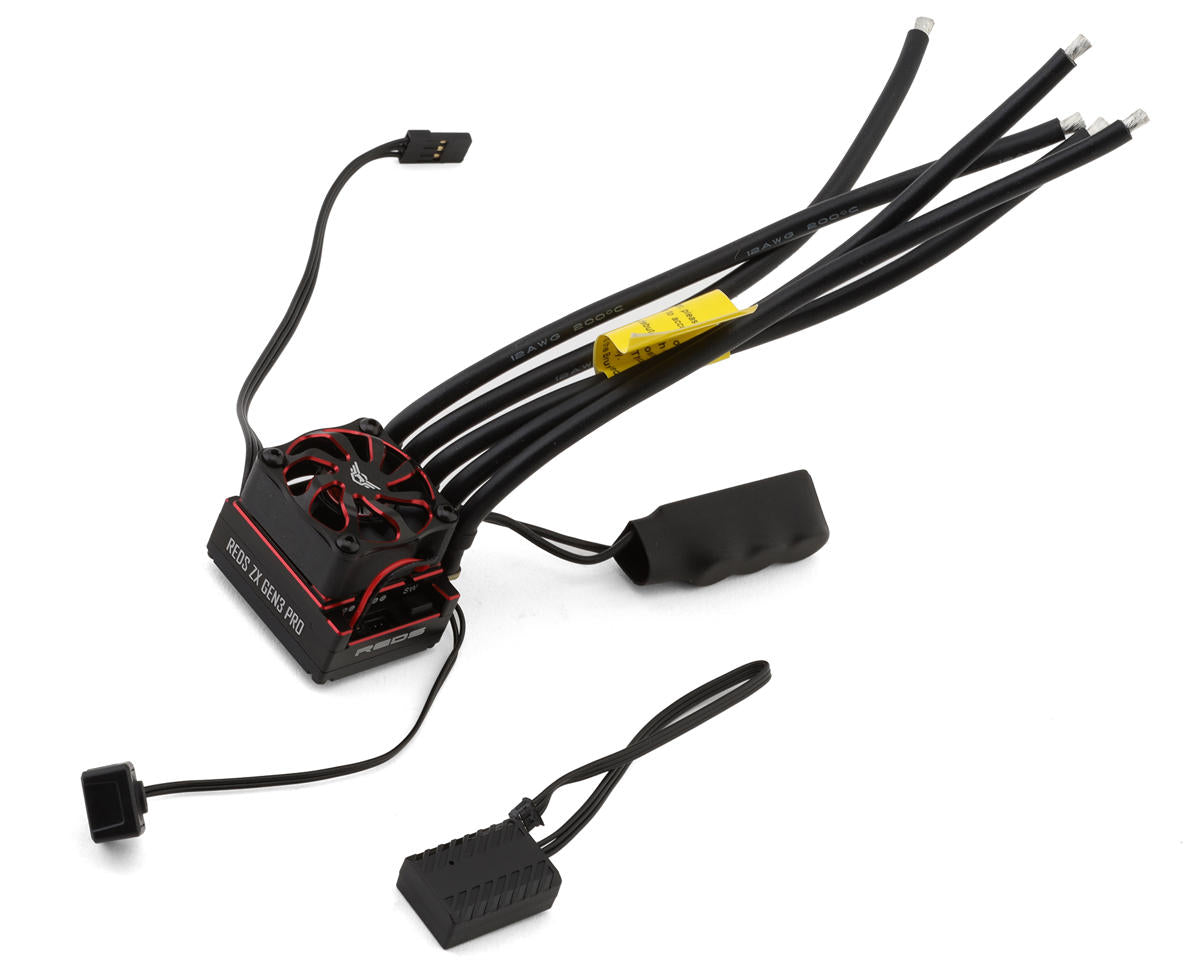

REDS ZX Pro Gen3 Brushless 1/10 ESC w/Wireless Programmer (Red) (160A)

The REDS ZX Pro Gen3 Brushless 1/10 ESC combines a 32-bit microprocessor, 160A continuous current rating, wireless programming, and a cooling fan for 1/10 brushless-sensored applications. Its aluminum case and heat sink support heat dissipation, while redesigned firmware provides precise throttle and braking control.

Features

• Aluminum case and heat sink design
• Redesigned algorithm firmware for precise braking and throttle control
• Low voltage cut-off, overheat, and throttle signal loss protection
• Built-in switch mode BEC with voltage adjustable from 5V to 7.4V and maximum output of 10A
• 32-bit microprocessor
• 160A continuous current rating
• Cooling fan
• Wireless connectivity for real-time ESC control
• Developed in accordance with ROAR, BRCA, and EFRA regulations

Specifications

• Suggested Application: 1/10
• Motor Type: Brushless-Sensored
• Input Voltage: 2-3S LiPo
• Continuous Current: 160A
• Burst Current: -
• Dimensions: 1.46x1.5x1.24in (37x38.2x31.5mm)
• Weight: 3.35oz (95g)
• Motor Limits: >3.5T
• BEC Voltage: 6V-7.4V
• BEC Continuous Current: -
• BEC Peak Current: 10A
• Motor Connector: Bare Wire
• Battery Connector: Bare Wire
• Motor Wire: 12AWG
• Battery Wire: 12AWG
• Throttle Wire: 12AWG
• Programming: Wireless Programming Module

Includes

• (1) ZX Pro Gen3 Brushless 1/10 ESC
• (1) REDS ZX Pro Wireless ESC Program Box
• Product Manual
