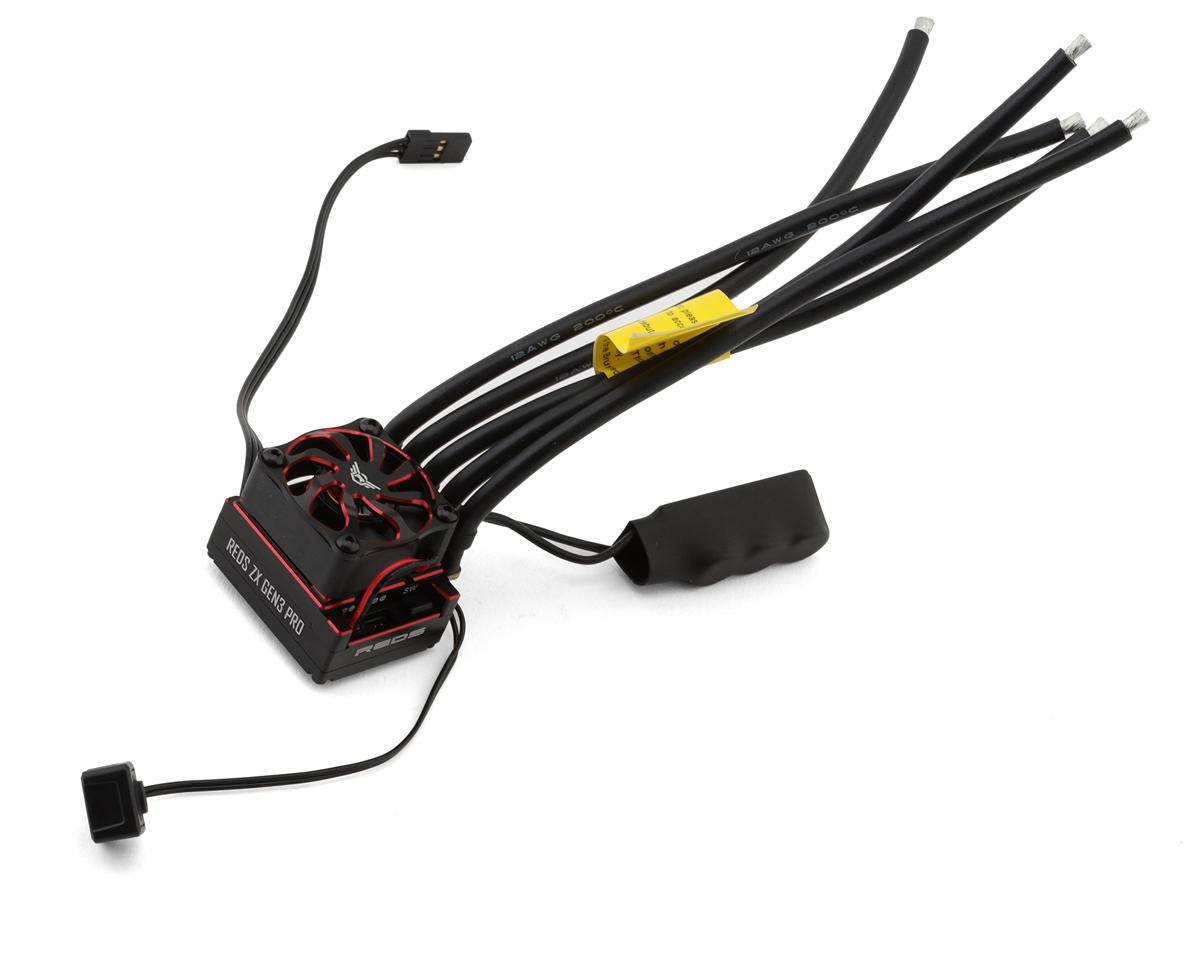

REDS ZX Pro Gen3 Brushless 1/10 ESC (Red) (160A)

The REDS ZX Pro Gen3 Brushless 1/10 ESC features a 160A continuous current rating, a 32-bit microprocessor, and redesigned firmware for precise throttle and braking control. Its aluminum case and heat sink support heat dissipation, while the built-in cooling fan helps maintain performance.

Features

• Aluminum case and heat sink design
• Redesigned algorithm firmware for precise braking and throttle control
• Low voltage cut-off, overheat, and throttle signal loss protection
• Built-in switch mode BEC with 6V-7.4V adjustable voltage and 10A peak current
• 32-bit microprocessor
• 160A continuous current rating
• Cooling fan included on the ESC
• Optional wireless connectivity through the REDSPCS0023 WiFi Module, sold separately
• Developed in accordance with ROAR, BRCA, and EFRA regulations

Specifications

• Suggested Application: 1/10
• Motor Type: Brushless-Sensored
• Input Voltage: 2-3S LiPo
• Continuous Current: 160A
• Dimensions: 1.46x1.5x1.24in (37x38.2x31.5mm)
• Weight: 3.35oz (95g)
• Motor Limits: >3.5T
• BEC Voltage: 6V-7.4V
• BEC Peak Current: 10A
• Motor Connector: Bare Wire
• Battery Connector: Bare Wire
• Motor Wire: 12AWG
• Battery Wire: 12AWG
• Throttle Wire: 12AWG
• Programming: Transmitter/WiFi Module (REDSPCS0023)

Includes

• (1) ZX Pro Gen3 Brushless 1/10 ESC
• Product Manual
