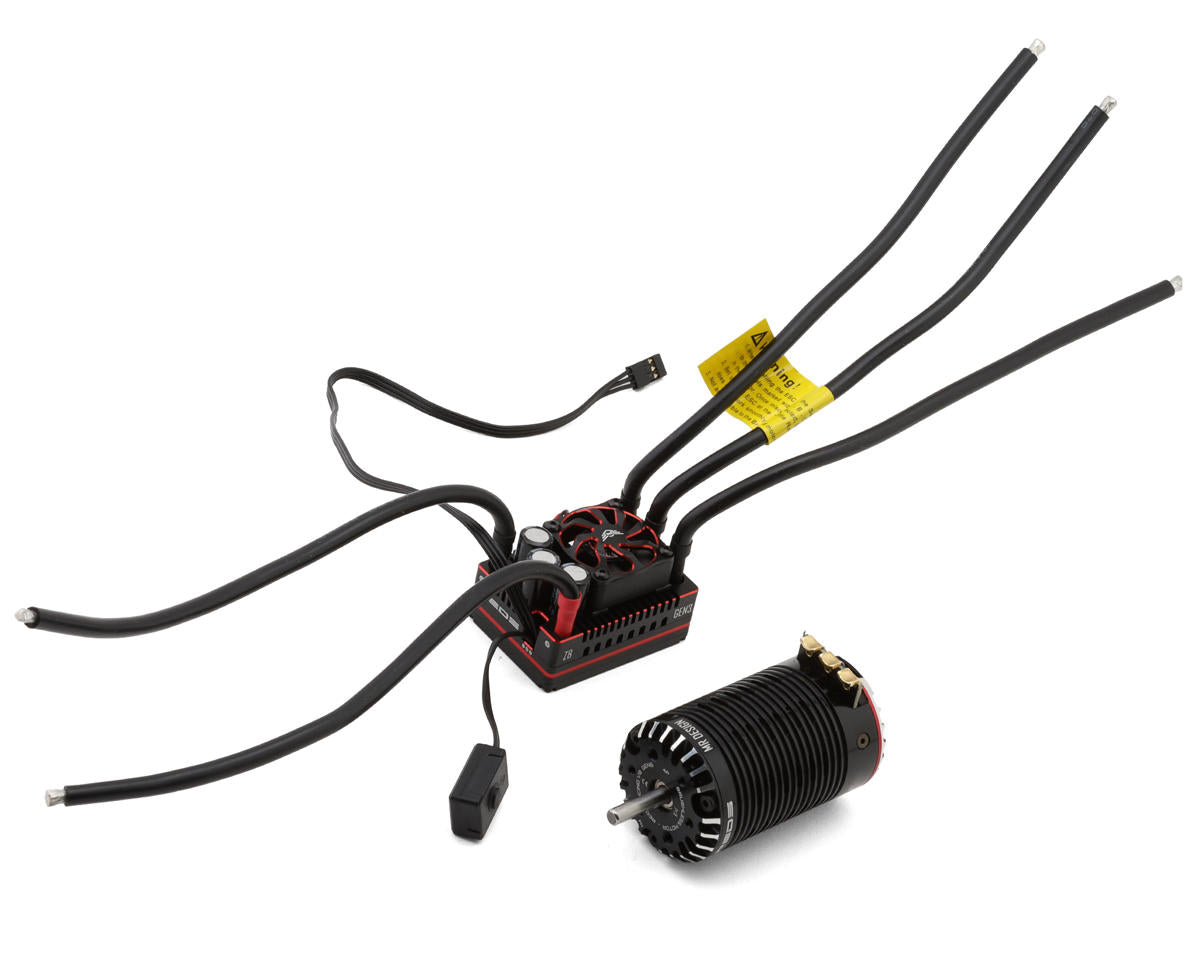

REDS Z8 Pro Gen3 ESC & Gen6 V8 1/8 Motor Combo

The REDS Z8 Pro Gen3 ESC and Gen6 V8 1/8 motor combo pairs a 2400kV, 4-pole brushless sensored motor with a programmable ESC for 1/8 applications. Integrated Bluetooth supports wireless tuning and firmware upgrades through the Reds Racing app.

Features

• Reds Racing Gen6 V8 4-pole 1/8 brushless motor
• Reds Racing Z8 Pro Gen3 ESC
• Integrated Bluetooth for wireless tuning
• Smartphone control via Reds Racing app
• Ultra-low resistance FET board
• 32-bit high-performance CPU
• Handles up to 220A of current
• IP5X-rated sealed motor case for dust protection
• ESC-controlled timing with no mechanical timing adjustment
• EFRA, ROAR, and IFMAR approved for competition

Specifications

• Suggested application: 1/8
• Motor type: Brushless Sensored
• Motor size: 2400kV
• Input voltage: 2-4S LiPo (7.4-14.8V)
• ESC continuous current: 220A
• ESC dimensions: 2.17x1.58x1.46in (55x40x37mm)
• BEC voltage: 6.0/7.4V (Adjustable)
• BEC continuous current: 6A
• Motor voltage: 2-4S LiPo
• Adjustable timing: No
• Shaft diameter: 5mm
• Motor connector: Bare Wire
• Battery connector: Bare Wire
• Programmable: Yes

Includes

• (1) Reds Racing Gen6 V8 1/8 Brushless Sensored Motor
• (1) Reds Racing Z8 Pro Gen3 ESC

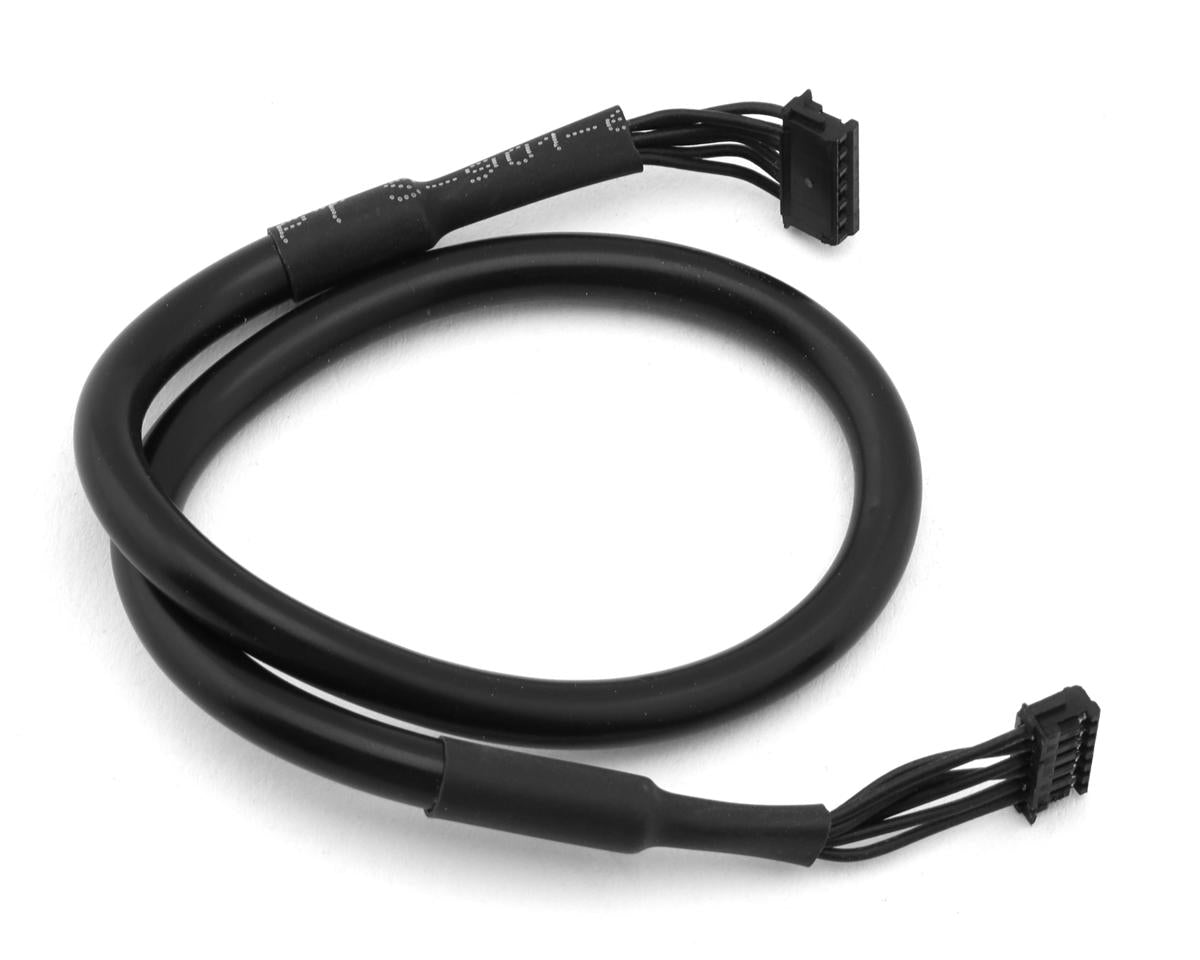

• (1) Sensor Cable
