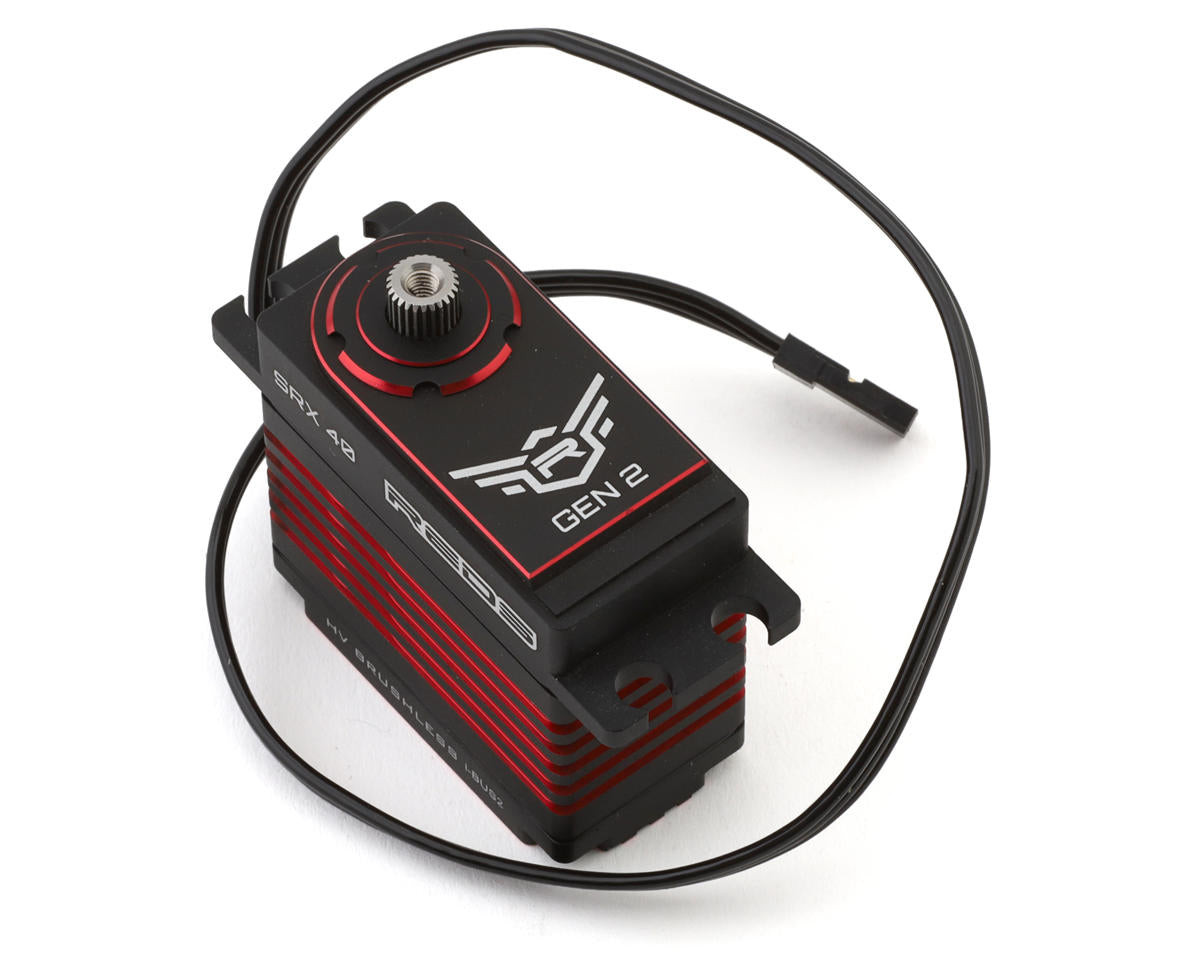

REDS SRX 40 Gen2 HV Digital Brushless Ultra High Torque Servo (6V-8.4V)

The REDS SRX 40 Gen2 HV Digital Brushless Ultra High Torque Servo is designed for 1/8 on-road applications and operates from 6V-8.4V. It features a brushless motor, titanium and steel CNC-machined gears, high torque output, and FlySky i-BUS2 communication for on-the-fly fine-tuning.

Features

• 6V-8.4V operating voltage range
• Titanium and steel gears
• Designed for superior heat dissipation
• FlySky i-BUS2 communication
• CNC-machined gears
• High torque output
• REDS carrying case included

Specifications

• Suggested Application: 1/8 On-Road
• Input Voltage: 6-8.4V
• Speed: @6.0V: 0.092sec/60°; @7.4V: 0.074sec/60°; @8.4V: 0.065sec/60°
• Torque: @6.0V: 543oz-in (39.1kg-cm); @7.4V: 559.7oz-in (40.3kg-cm); @8.4V: 695.8oz-in (50.1kg-cm)
• Motor: Brushless
• Dimensions (LxWxH): 1.61x0.98x1.52in (41x25x38.7mm)
• Weight: 2.93oz (83g)
• Operating Spline: 25T

Includes

• (1) SRX 40 Gen2 HV Digital Brushless Ultra High Torque Servo

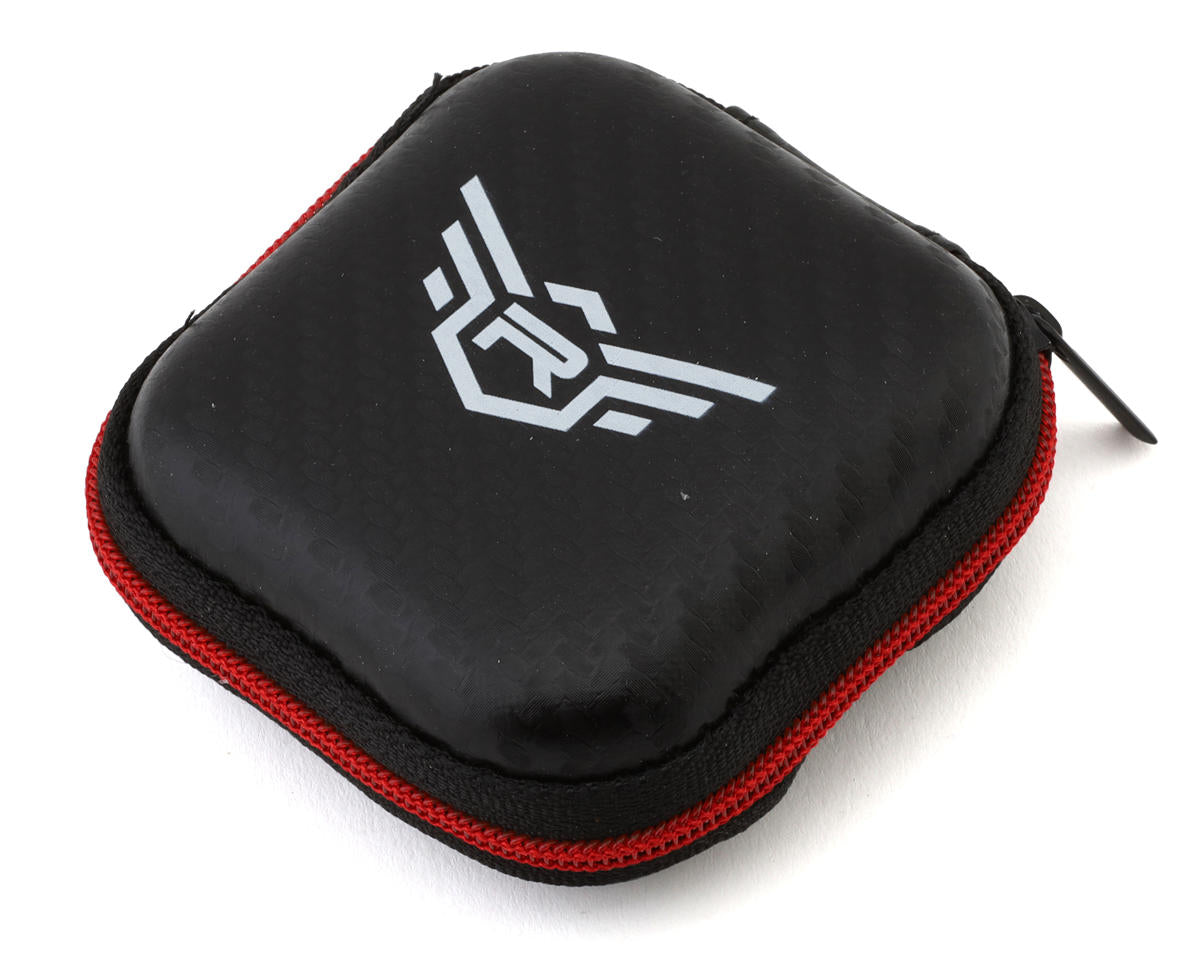

• (1) REDS Carrying Case

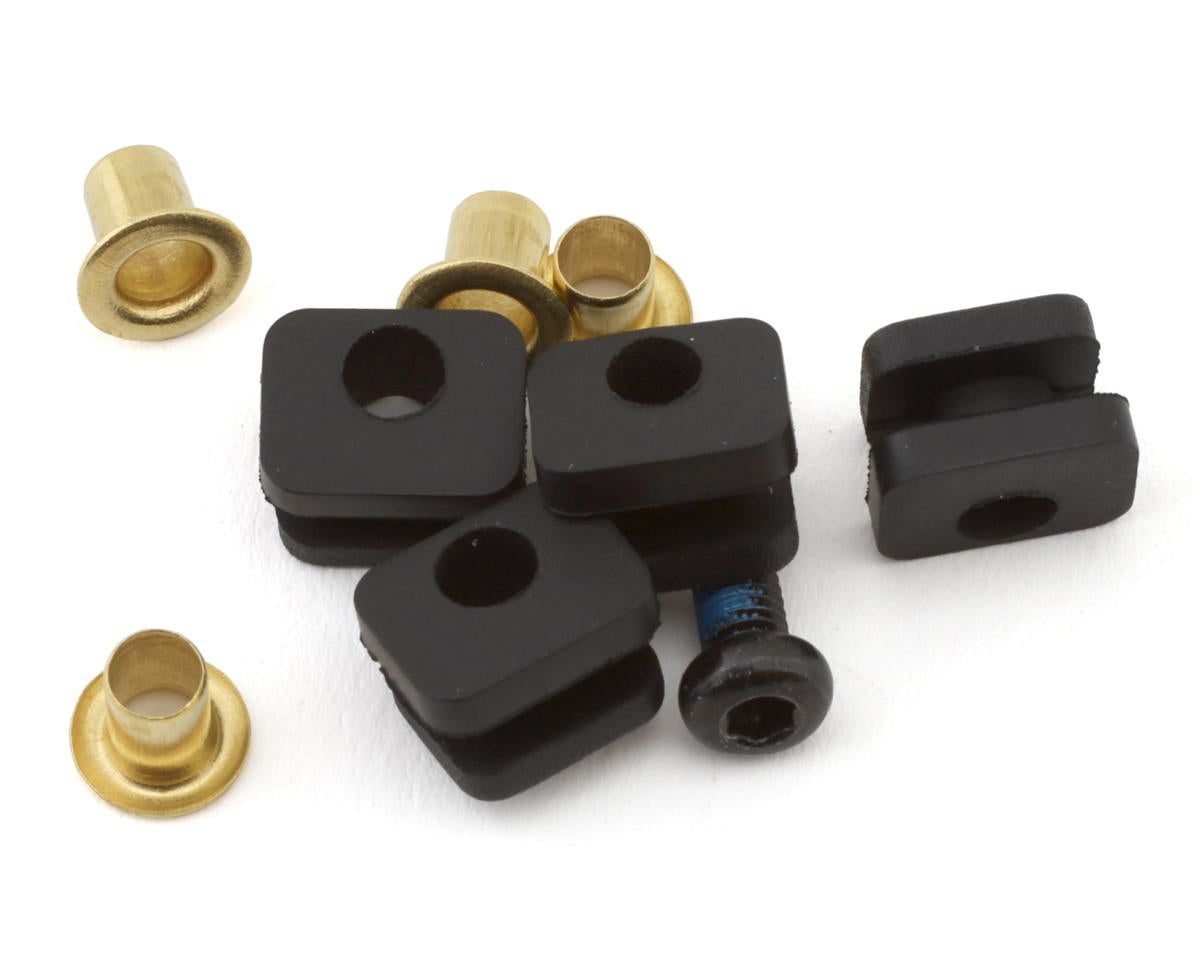

• Mounting Hardware
