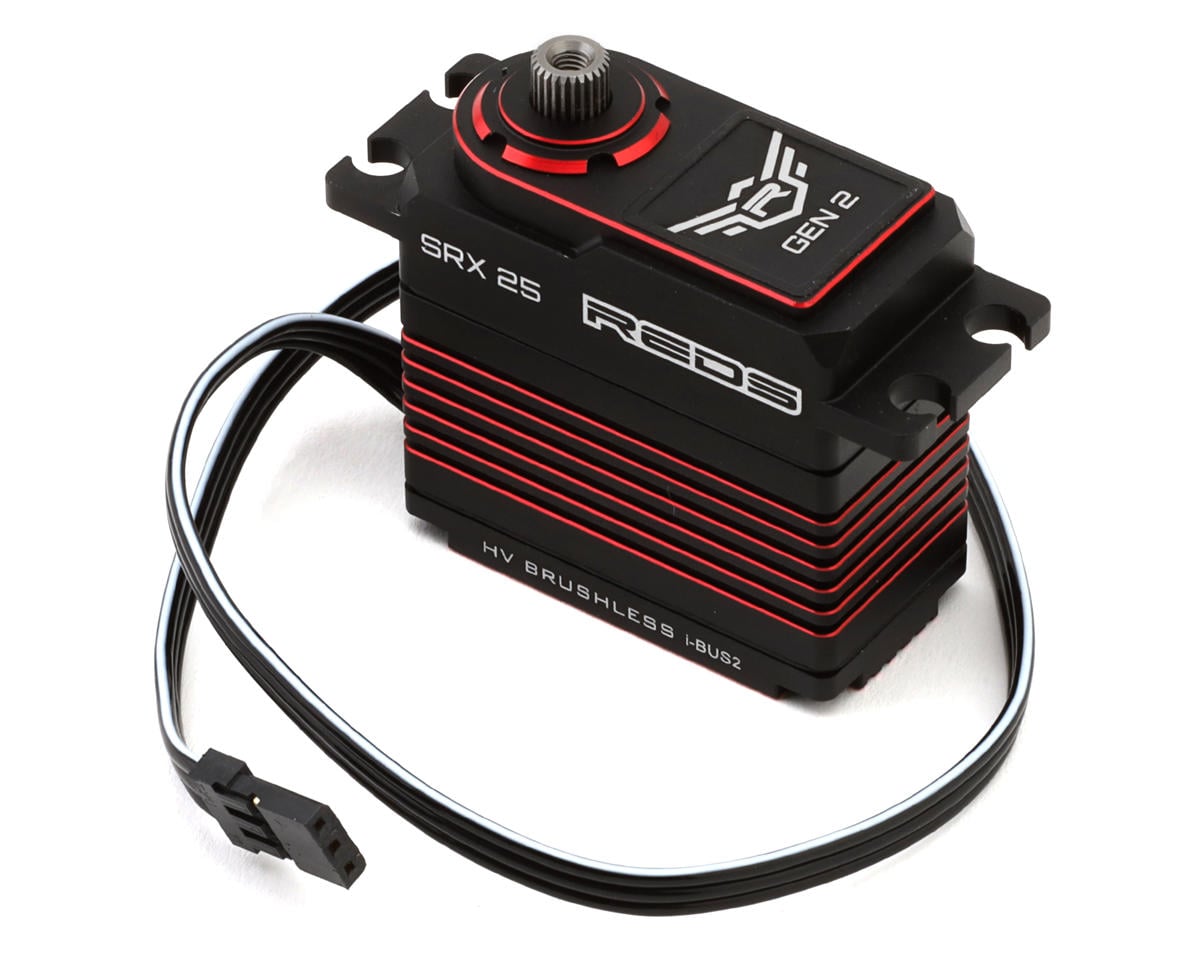

REDS SRX 25 Gen2 HV Digital Brushless High Torque Servo (6V-8.4V)

The REDS SRX 25 Gen2 HV Digital Brushless High Torque Servo is designed for 1/10 4WD buggy and on-road models. It supports 6V-8.4V input and combines a brushless motor with titanium and CNC-machined steel gears, dual ball bearings, and a finned aluminum lower cover.

At 8.4V, the servo delivers 419.4oz-in (30.2kg-cm) of dynamic torque with an operating speed of 0.055 sec/60°. Flysky i-BUS2 compatibility enables real-time data monitoring and parameter adjustments with a compatible Flysky Noble radio system.

Features

• High-voltage compatible (6V-8.4V)
• Brushless motor technology
• Dynamic torque of 419.4oz-in (30.2kg-cm) at 8.4V
• Operating speed of 0.055 sec/60° at 8.4V
• Titanium and CNC-machined steel gears
• Finned aluminum lower cover
• Flysky i-BUS2 compatibility
• Dual ball bearings
• Optimized for 1/10 4WD buggy and on-road models

Specifications

• Input Voltage: 6-8.4V
• Operating Speed @ 6.0V: 0.075 sec/60°
• Operating Speed @ 7.4V: 0.06 sec/60°
• Operating Speed @ 8.4V: 0.055 sec/60°
• Dynamic Torque @ 6.0V: 298.6oz-in (21.5kg-cm)
• Dynamic Torque @ 7.4V: 351.4oz-in (25.3kg-cm)
• Dynamic Torque @ 8.4V: 419.4oz-in (30.2kg-cm)
• Pulse/Frequency: 333
• Motor Type: Brushless
• Output Shaft: 25T
• Gear Material: Titanium & Steel
• Dimensions: 1.61x0.81x1.52in (41x20.5x38.6mm)
• Weight: 2.65oz (75g)

Includes

• (1) SRX 25 Gen2 HV Digital Brushless High Torque Servo (6V-8.4V)
