Redcat R3C 4-Channel Transmitter & R3C-ER 2-in-1 ESC/Receiver Unit

The Redcat R3C 4-Channel Transmitter and R3C-ER 2-in-1 ESC/Receiver Unit is a replacement electronics combo designed for Redcat Ascent-18 platforms. It includes a 4-channel transmitter and a 3-channel ESC/receiver unit.

Included

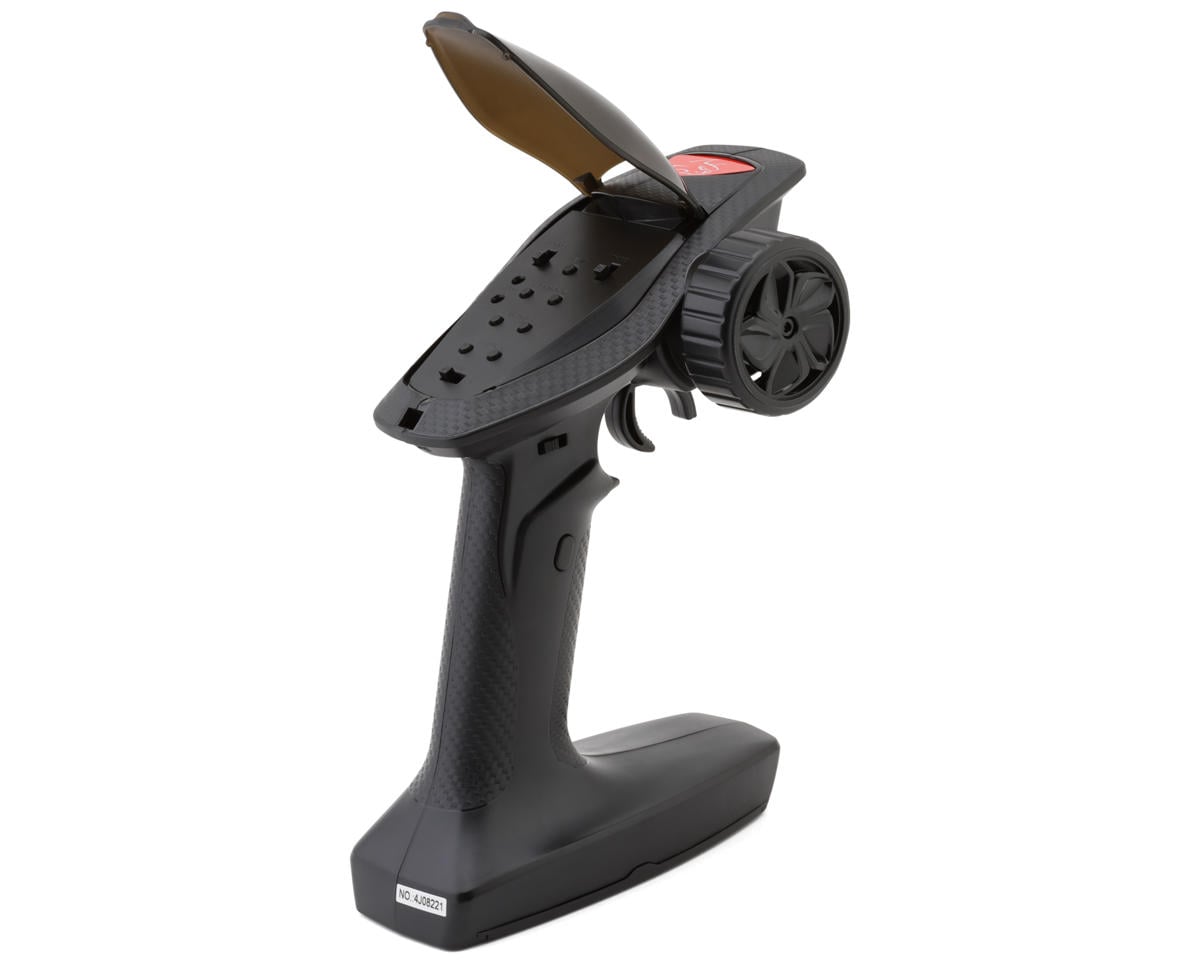

• (1) 4-Channel R3C Transmitter

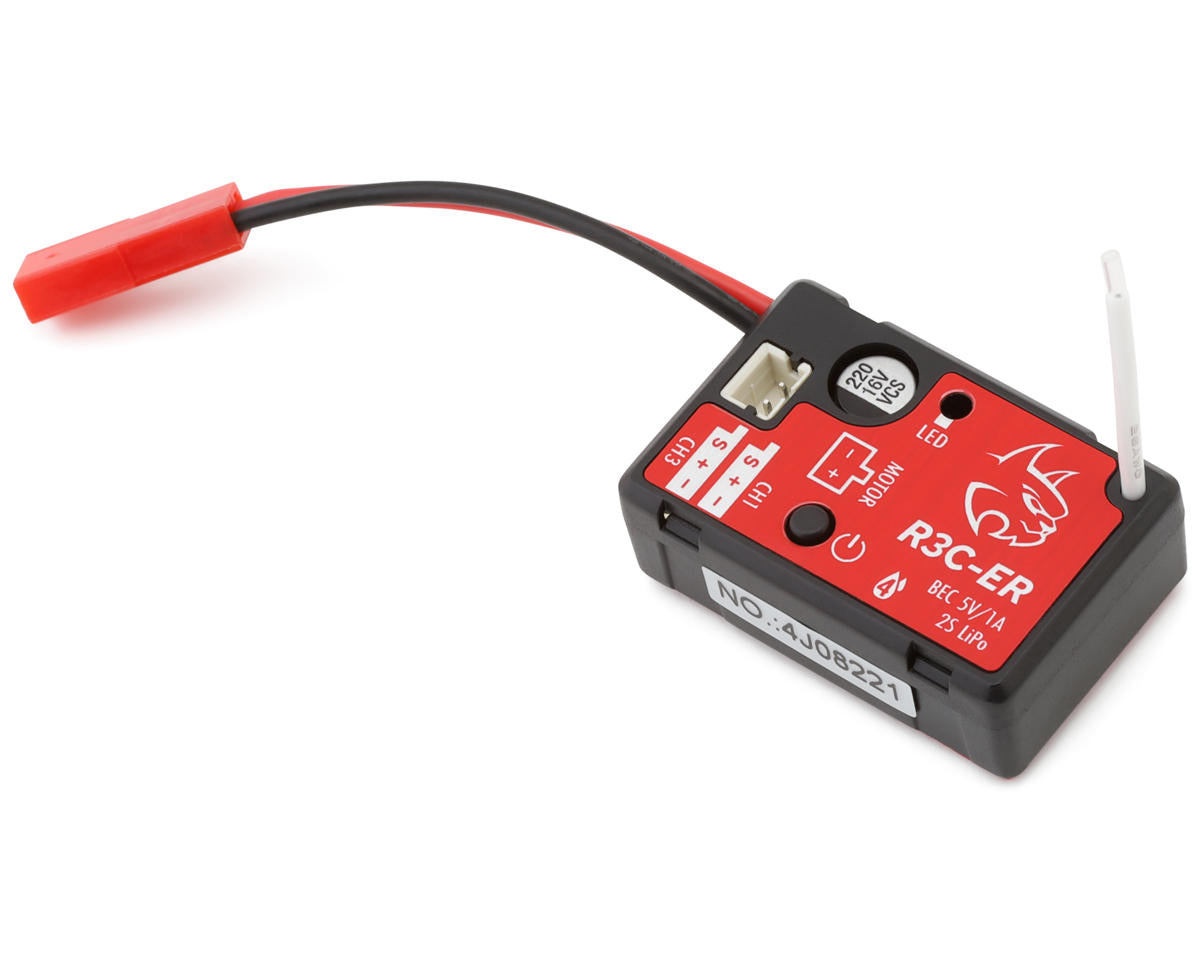

• (1) 3-Channel R3C-ER 2-in-1 ESC/Receiver Unit
• Product Manual

Transmitter Specifications

• Application: Surface
• Band: 2.4GHz
• Protocol: 2A-BS
• Channels: 4
• Input Voltage: 1.5V AA Batteries (4)
• Range: 984.25ft (300m)
• Dimensions: 6.30x7.60x3.82in (160x193x97mm)
• Weight: 7.76oz (220g)

Receiver Specifications

• Application: 1/18 Crawler
• Channels: 3
• Band: 2.4GHz
• Protocol: 2A-BS
• Input Voltage: 2S LiPo (7.4V)
• Connector Type: JST
• Range: 984.25ft (300m)
• Dimensions: 1.50x0.98x0.51in (38x25x13mm)
• Weight: 0.35oz (9.8g)

Needed to Complete

• (4) AA Batteries
