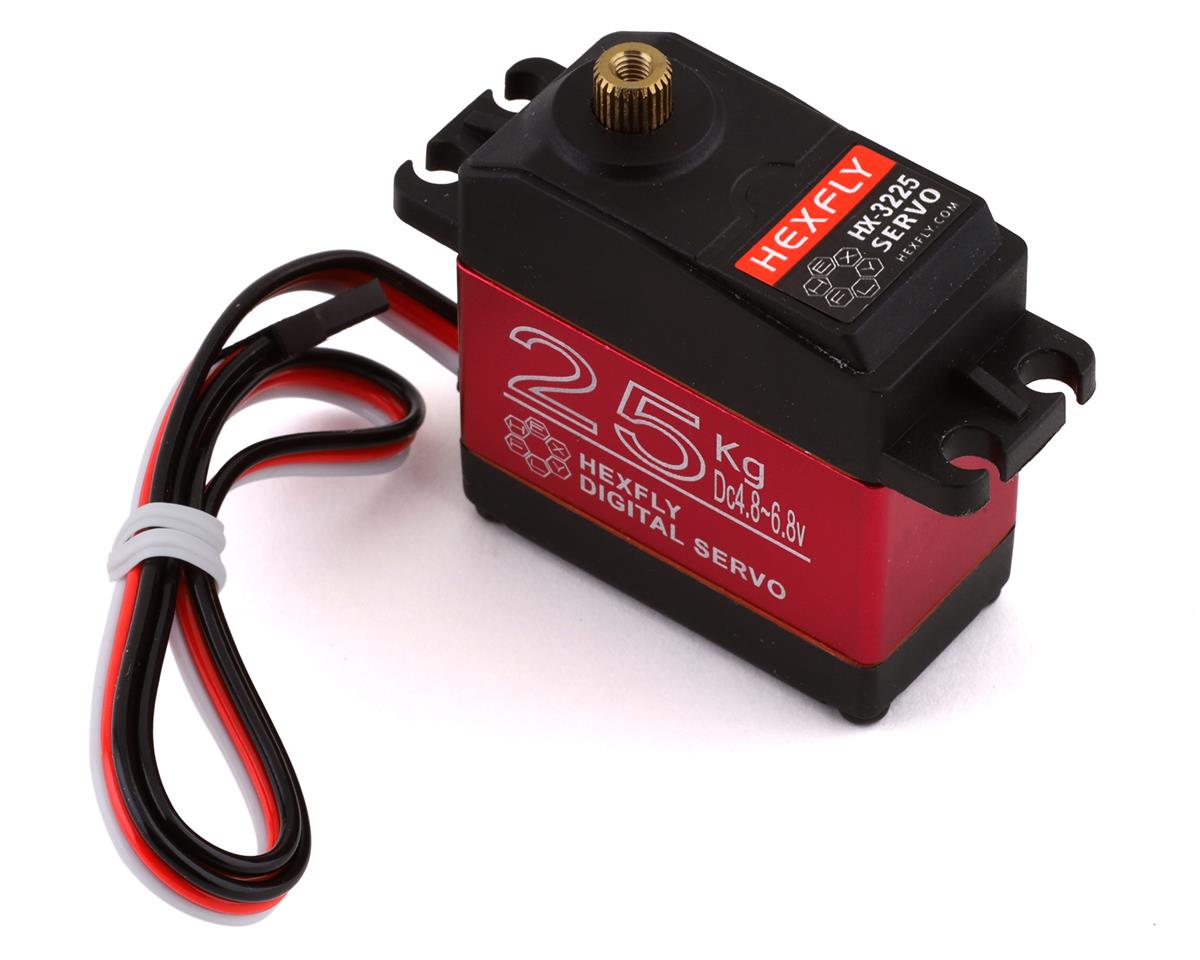

Redcat Hexfly HX-3225 High Torque Metal Gear Waterproof Servo

The Redcat Hexfly HX-3225 is a high-torque, waterproof servo with metal gears and a CNC aluminum center case designed to improve heat dissipation. It is suitable for RC trucks, boats, planes, and robots.

Features

• Maximum torque up to 347oz-in @6.8V (25kg.cm)
• High-precision metal gears with hard anodizing
• CNC aluminum middle shell for enhanced heat dissipation
• Waterproof construction
• 270° rotation

Specifications

• Operating voltage: 4.8 - 6.8V
• Operating speed (5.0V): 0.14 sec/60 degree
• Operating speed (6.8V): 0.13 sec/60 degree
• Stall torque (5.0V): 291.63oz-in (21kg/cm)
• Stall torque (6.8V): 347oz-in (25kg/cm)
• Working frequency: 50-333Hz
• Connector wire: 300mm (11.8")
• Gear type: Metal
• Motor type: DC motor
• Servo size: 40 x 20 x 40.5mm
• Weight: 67g

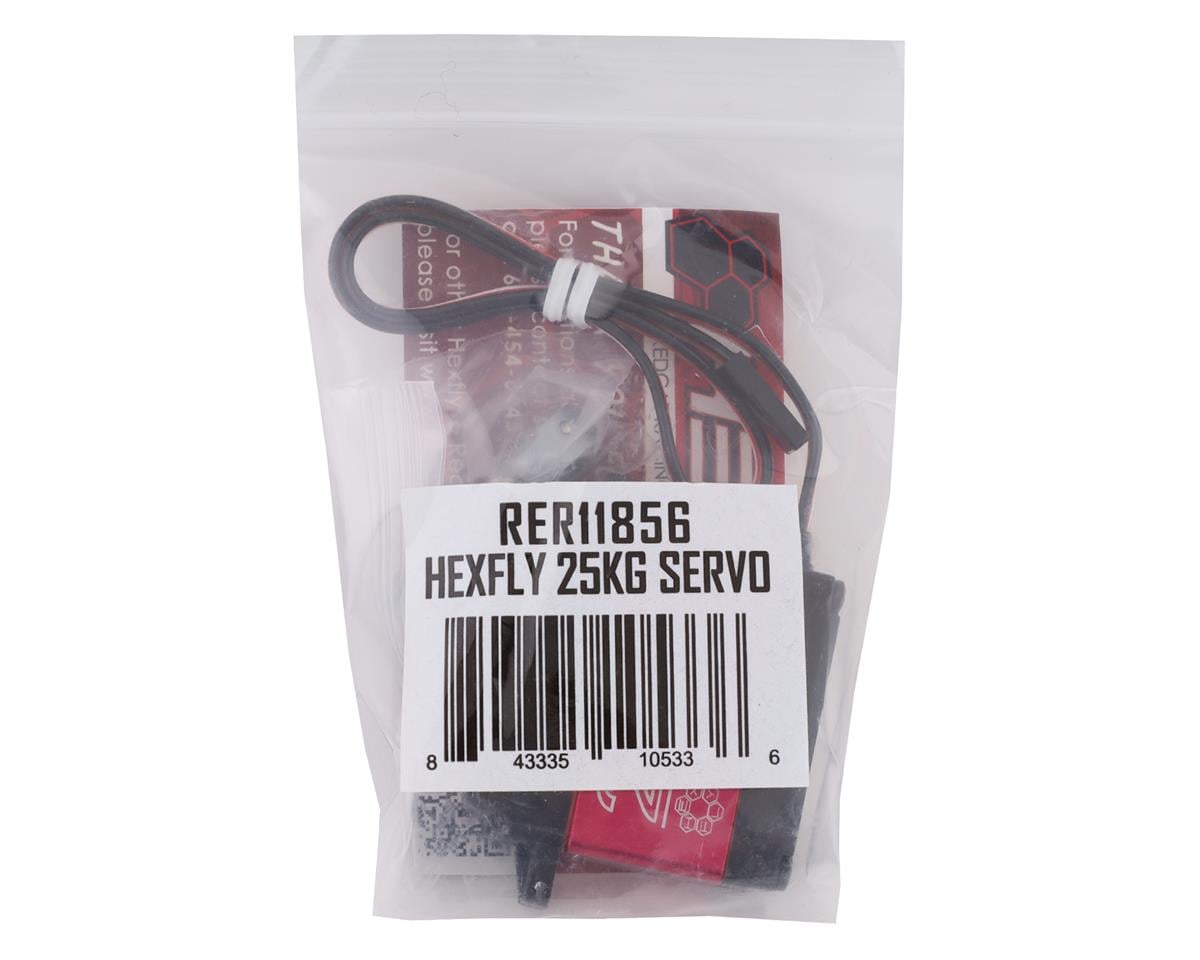

Package Contents

• Servo

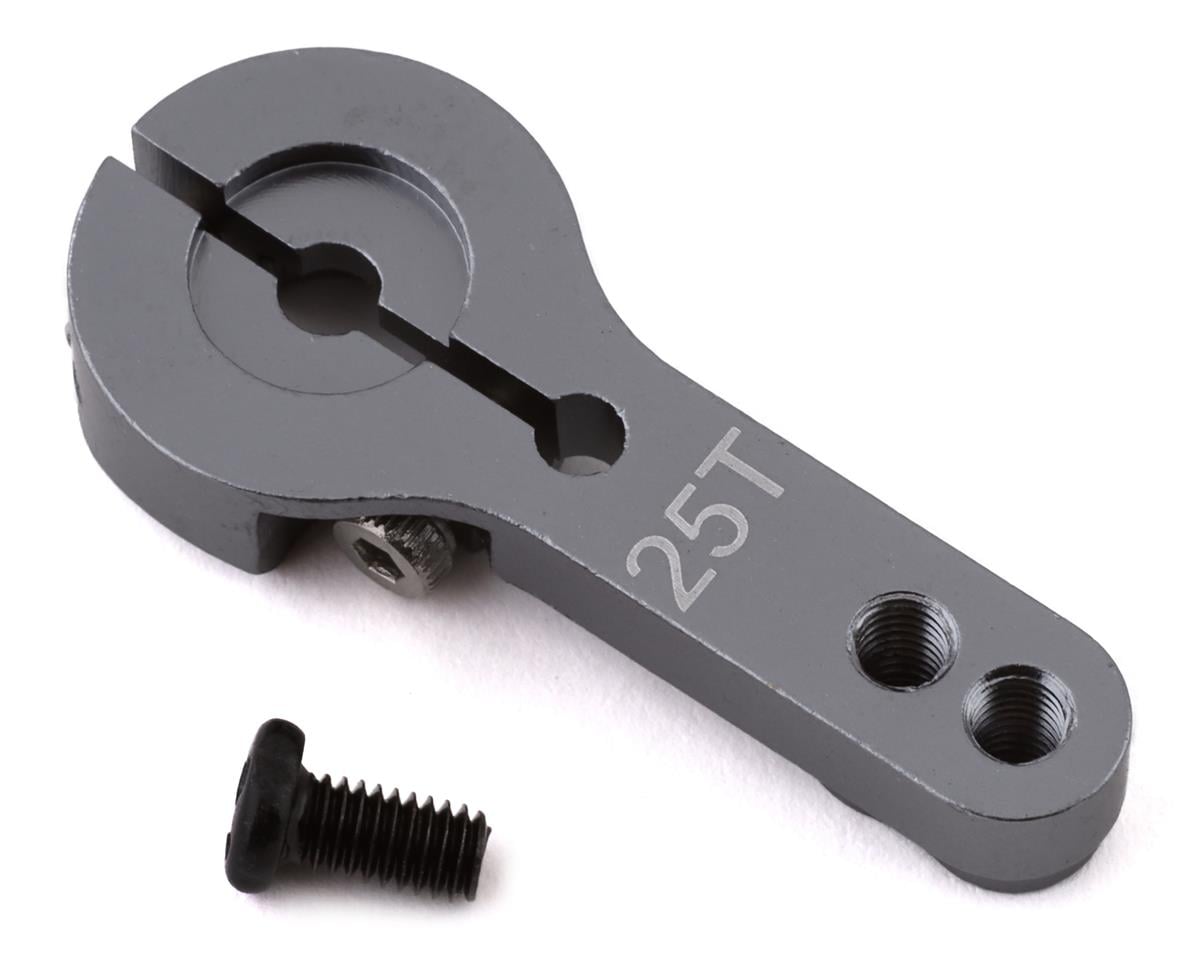

• Aluminum servo horn

Mounting hardware is not included.
