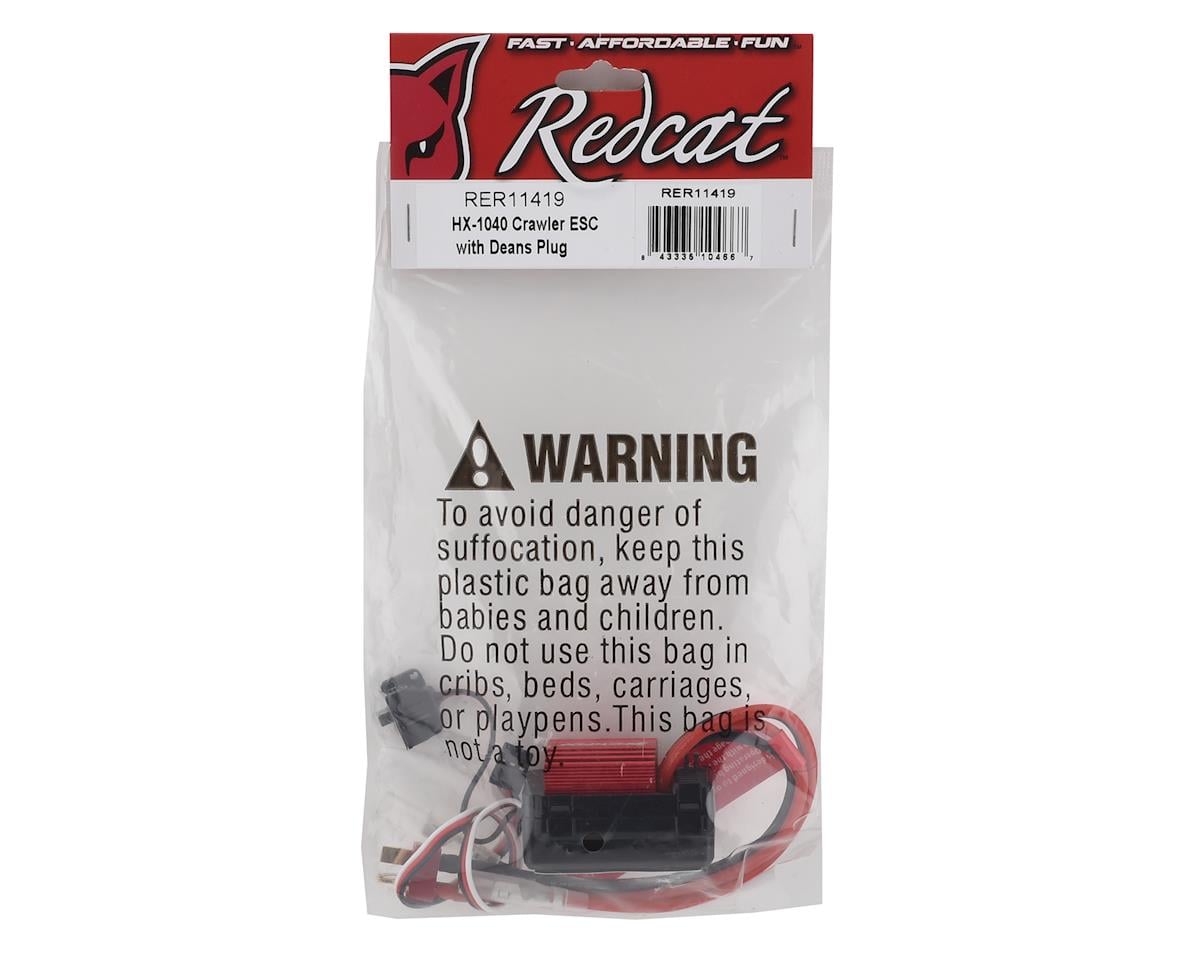

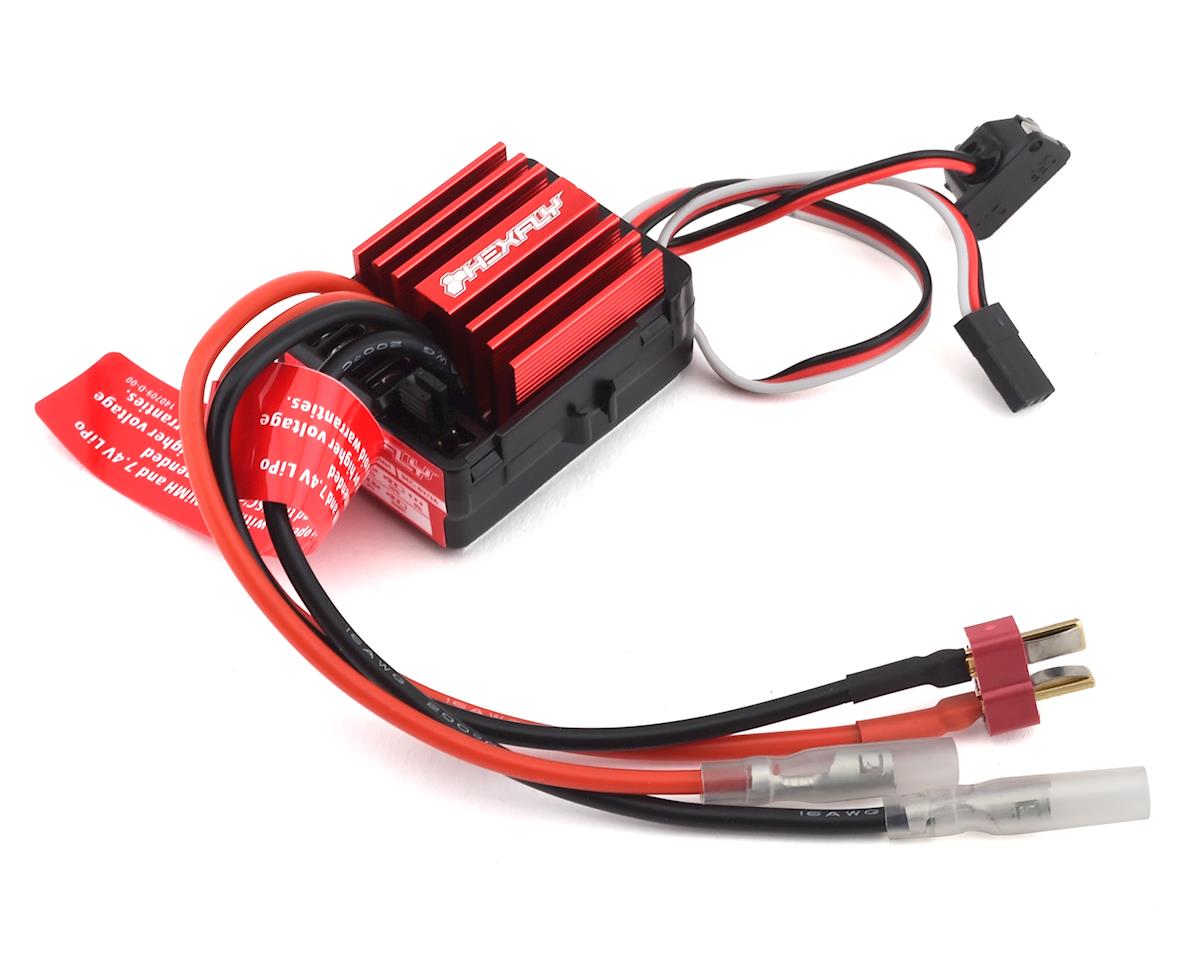

Redcat Hexfly HX-1040 Crawler ESC w/T-Plug

The Redcat Hexfly HX-1040 Crawler ESC is designed for 1/10 scale crawlers and features a T Plug battery connection, switch-mode BEC, and selectable drag brake settings.

Specifications

• Continuous/Peak Current: 40A / 180A
• Battery Cells: 2-3S LiPo / 5-9S NiMH
• Motor Limit, 2S LiPo / 5-6 Cells NiMH: 540/550 Size Brushed Motor ?12T
• Motor Limit, 3S LiPo / 7-9 Cells NiMH: 540/550 Size Brushed Motor ?17T
• Application: 1/10 Scale Crawlers
• Built-in BEC: 6V@3A (Switch-mode)
• Size: 46.5x37.5x27.5mm
• Weight: 67g
• Drag Brake Options: 100% - 50% - 0% (Set with jumper)
• Battery Connection: T Plug
