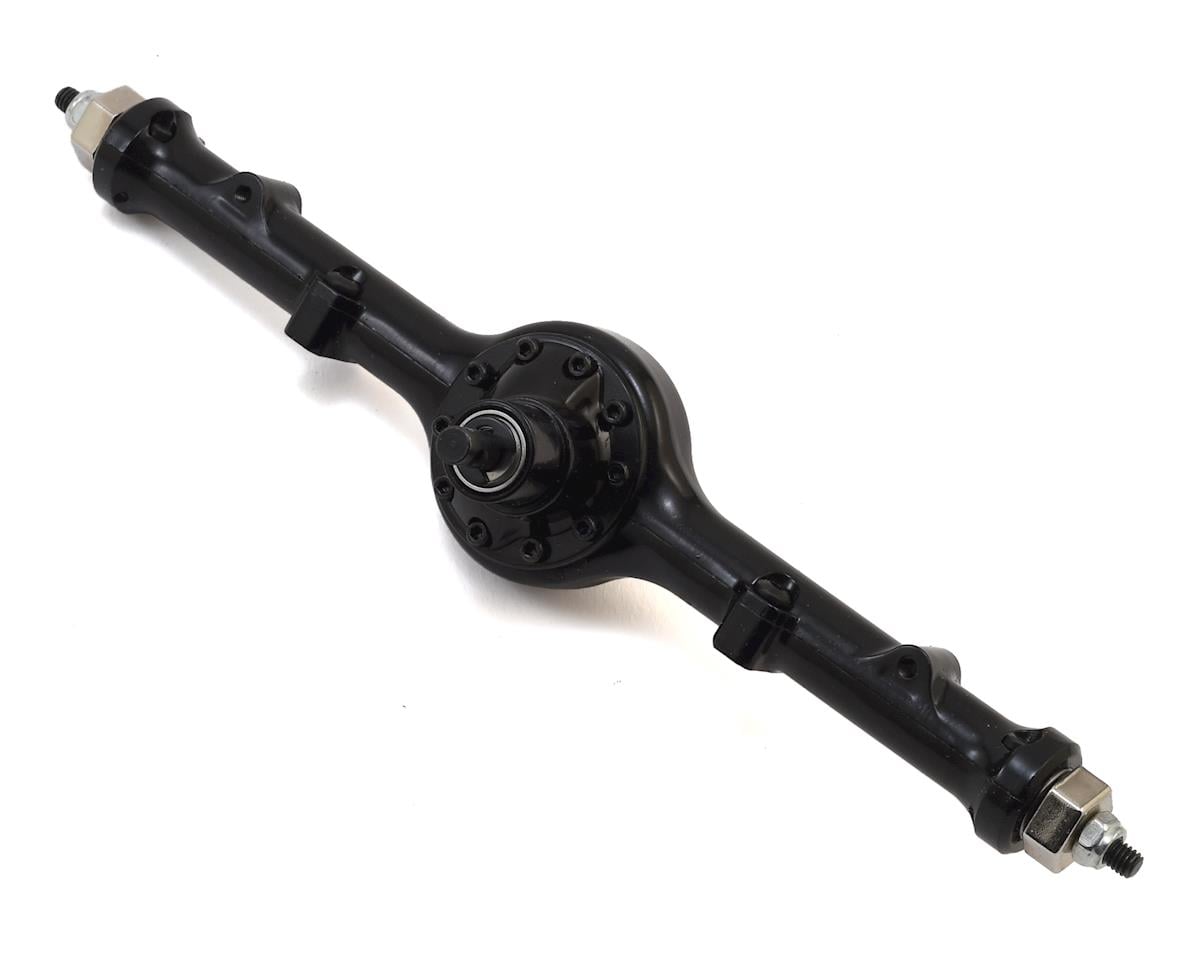

RC4WD Yota Ultimate Scale Cast Straight Axle (Rear)

The RC4WD Yota Ultimate Scale Cast Straight Axle (Rear) is designed for 1:10 scale trucks and features a detailed cast housing with a compact offset pumpkin, removable center cap and differential housing, plus lower mounts for front- or rear-mounted shocks.

Features

• Die-cast lightweight metal housing
• Hardened steel spool gears
• 5mm axle output shaft
• Full ball bearings
• Black powder-coated finish
• Engineered by Fracture in New Zealand
• Manufactured by RC4WD

Specifications

• Hex to Hex Width: 179 mm / 7.04″
• Pin to Pin Width: 168mm / 6.61″
• Total Width: 180mm / 7.09″
• Pumpkin Height: 35.8mm / 1.4″
• Leaf Mount Width: 78mm / 3.07″
• Gear Ratio: 2.67 : 1
• Output Shaft OD: 5mm / 0.19″
• Hex: 12mm Steel
• Weight: 1441g / 4.95oz
