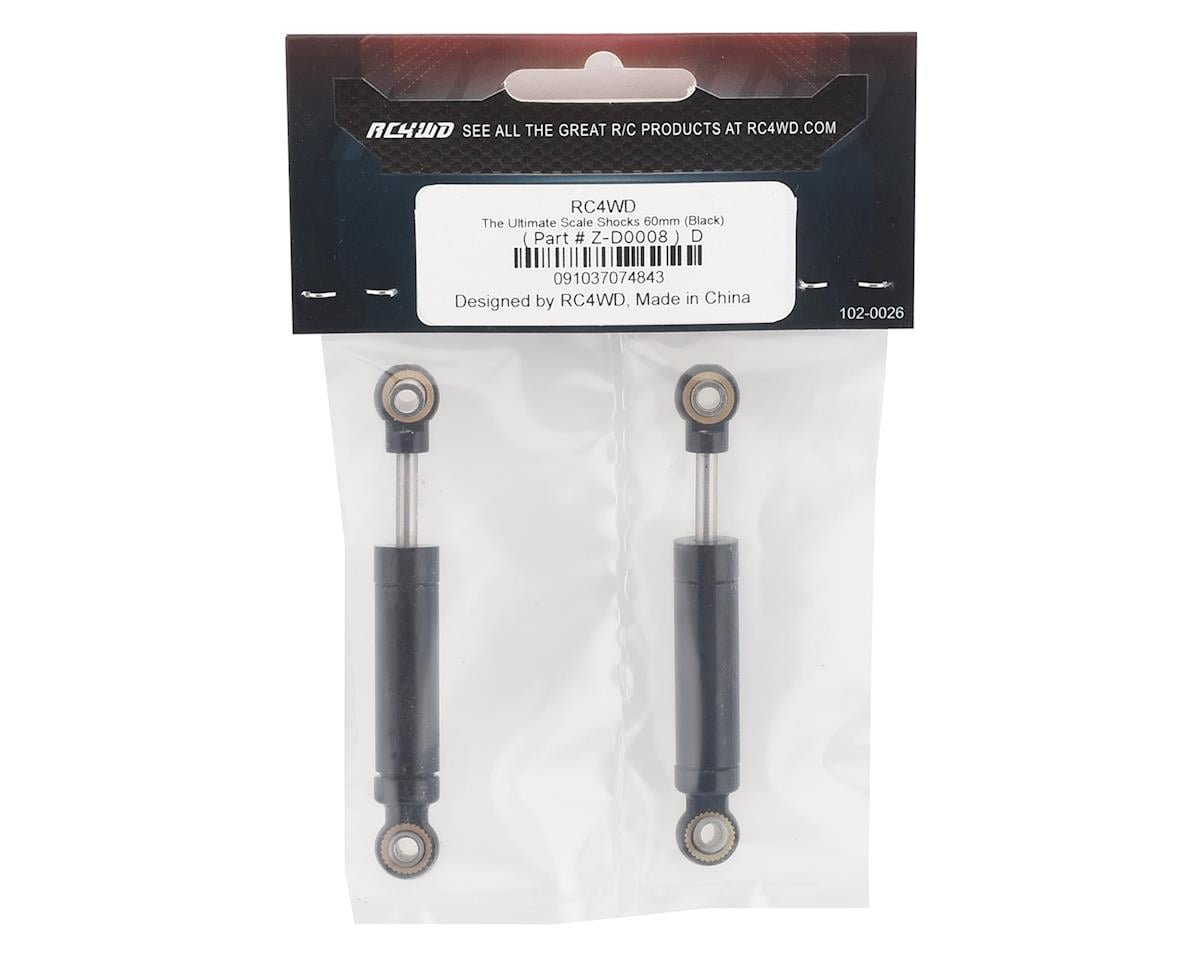

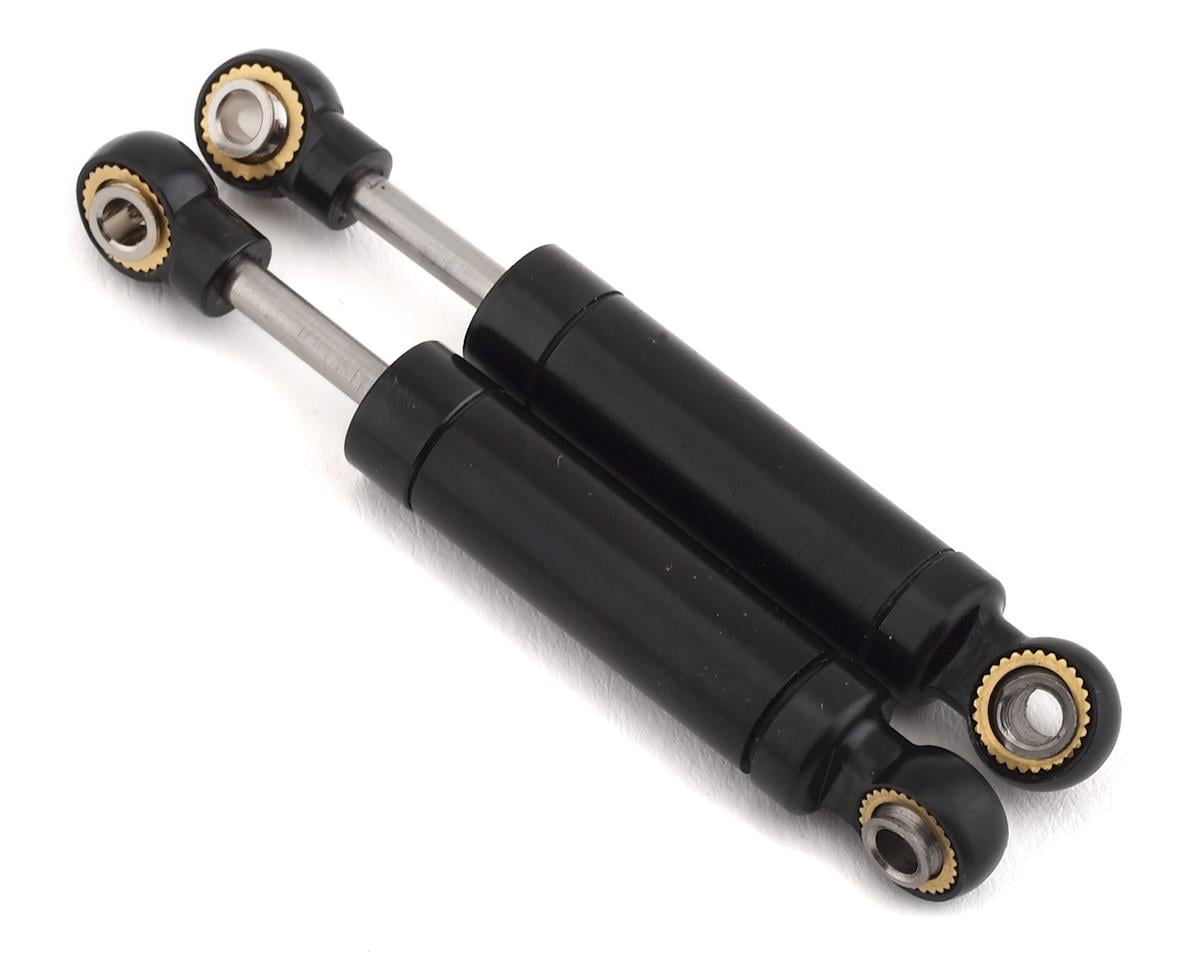

RC4WD Ultimate Scale Shocks (2) (Black) (60mm)

RC4WD Ultimate Scale Shocks provide a 60mm shock option in a black finish. This set includes two shocks with CNC machined aluminum, heat treated steel, an internal super soft coil spring, and a steel rod end ball.

Specifications

• Hole to Hole (Compressed): 1.96in / 50mm
• Hole to Hole (Uncompressed): 2.36in / 60mm
• Overall Length: 2.75in / 70mm
• Travel Length: 0.39in / 10mm
• Shock Body OD: 0.35in / 9mm
• Shaft OD: 0.11in / 3mm
• Weight: 0.31oz / 9g

Notes

• These shocks do not use oil. Use a small amount only to keep the shaft lubricated.
• The shock cap has very small threads. Pay careful attention when removing and installing the cap to avoid stripping the threads.
• Use blue (medium) thread lock on the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
• Fits Tamiya Sand Scorcher (Rear).
• RC4ZS1343 is the spring assortment that fits these shocks.
