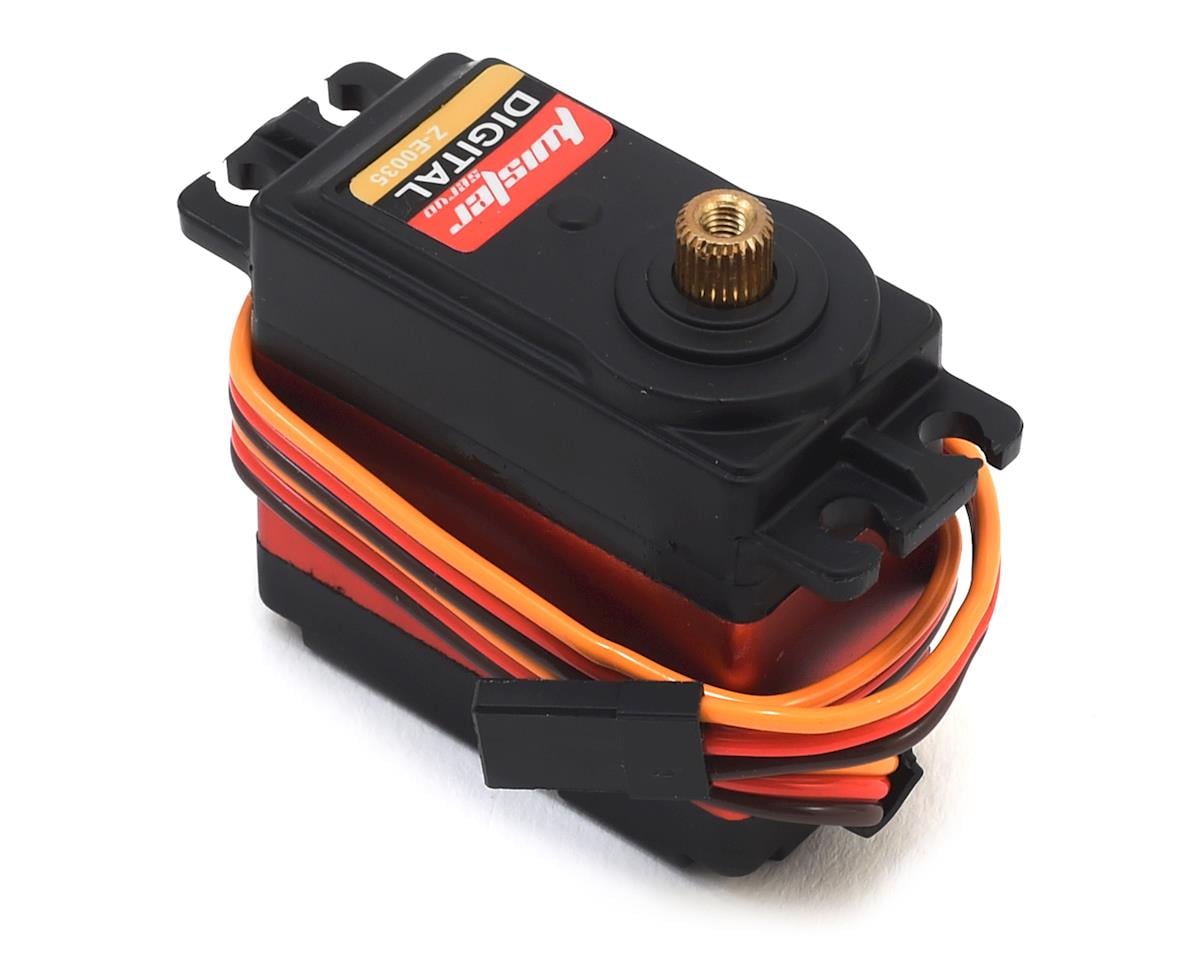

RC4WD Twister High Torque Metal Gear Digital Servo

The RC4WD Twister High Torque Metal Gear Digital Servo is designed for steering, throttle, winch, and other RC applications. It features metal gears, an aluminum center case, motor lock-rotor protection, and waterproof 4.8-6.0V operation.

Features

• Aluminum center case
• Motor lock-rotor protection
• High efficiency and low power consumption
• Metal gears for long life and durability
• Waterproof 4.8-6.0V operation

Specifications

• Dimensions: 40.8 x 20.1 x 40.0 mm; 1.6 x .80 x 1.57 in
• Weight: 62 g; 2.18 oz
• Speed at 4.8V: .15 sec/60
• Speed at 6.0V: .13 sec/60
• Torque at 4.8V: 118 oz-in
• Torque at 6.0V: 153 oz-in
• Unload current: 300mA / 4.8V; 400mA / 6V
• Full load current: 1000mA / 4.8V; 1200mA / 6V
• Gear: Metal
• Bearing: 2BB

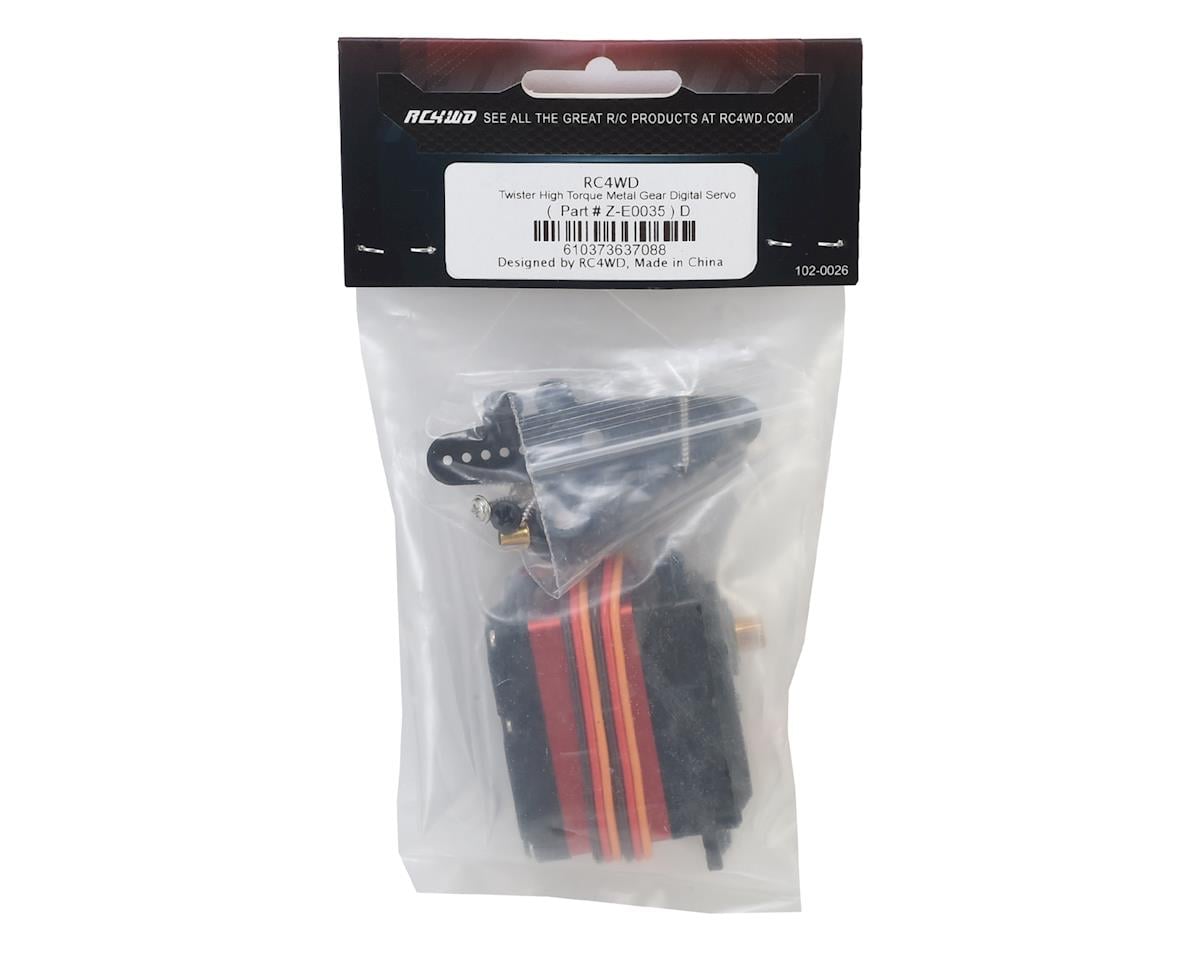

Includes

• Twister High Torque Metal Gear Digital Servo

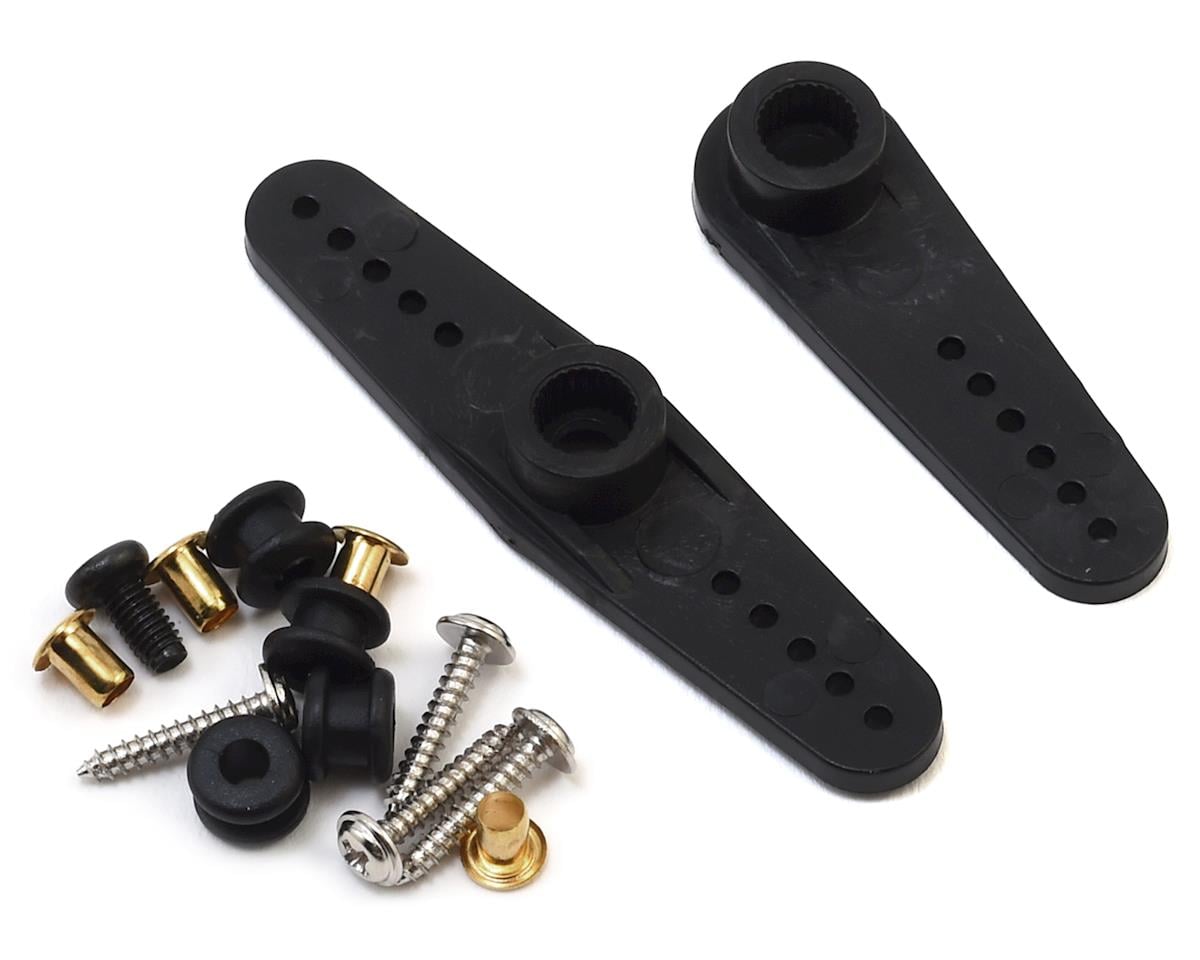

• 2 Servo arms
• 4 Mounting screws
• Servo horn screw
• 4 Brass mount bushings
• 4 Rubber mounting tabs
