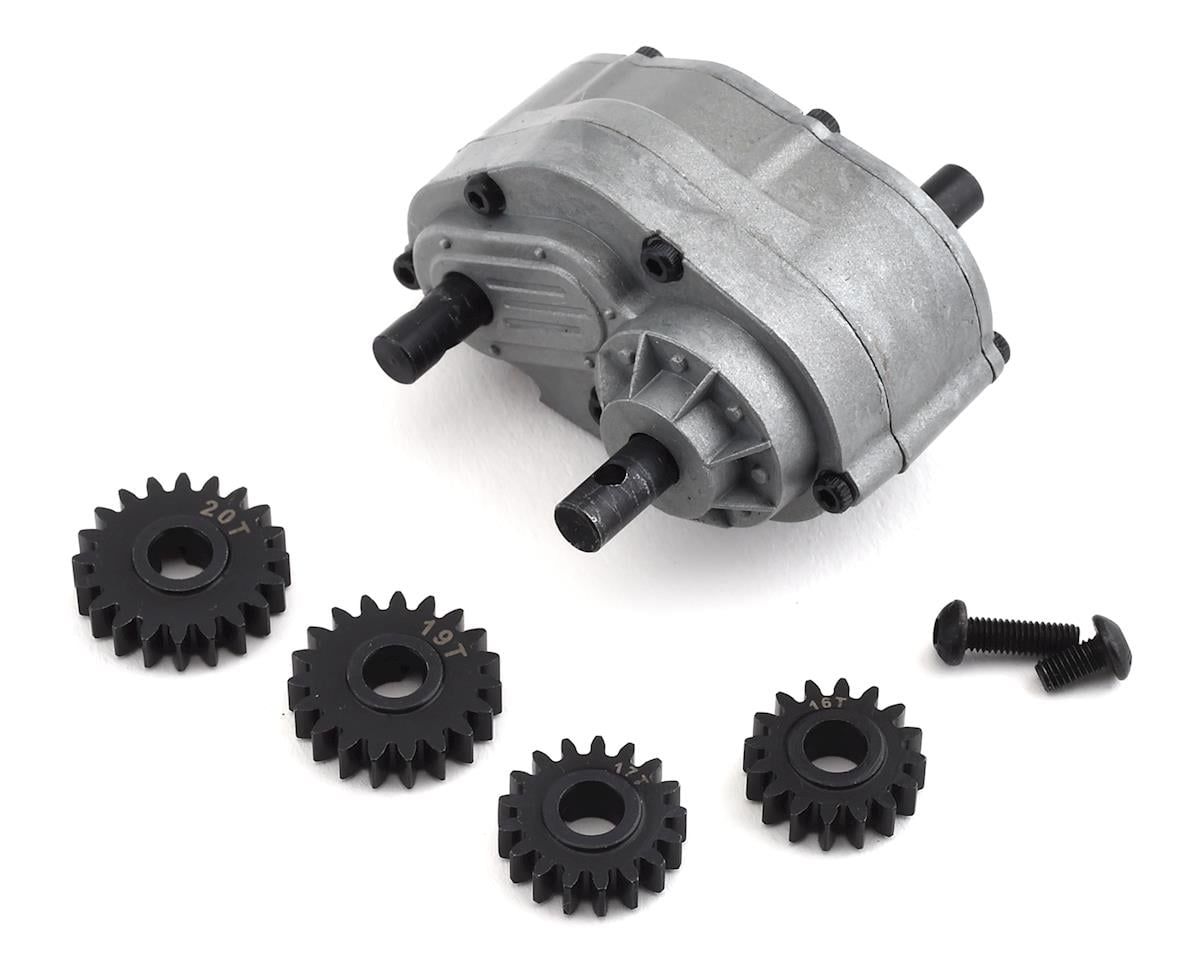

RC4WD Trail Finder 2/Gelande II Over/Underdrive Transfer Case Set

The RC4WD Trail Finder 2/Gelande II Over/Underdrive Transfer Case Set features hardened steel gears, a cast casing, wide gears, and 1.47 / 1 gearing with .8 Mod gears. It uses the same mounting pattern as the Hammer Transfer Case.

Features

• Six gearing options available
• 15T/22T stock gearing: 1:1.47 gear ratio; front axle rotates at the same speed as the rear
• 17T / 19T: 1:1.27; front axle rotates 27% faster than rear
• 16T / 20T: 1:1.33; front axle rotates 33% faster than rear
• 19T / 17T: 1:1.42; front axle rotates 42% faster than rear
• 20T / 17T: 1:1.57; front axle rotates 57% faster than rear
• 20T / 16T: 1:1.67; front axle rotates 67% faster than rear
• Remove the cover on the side with the two shafts to change the gear ratio

Specifications

• Output Shaft OD: 0.19in / 5.0mm
• Total Weight: 6.21oz / 176g

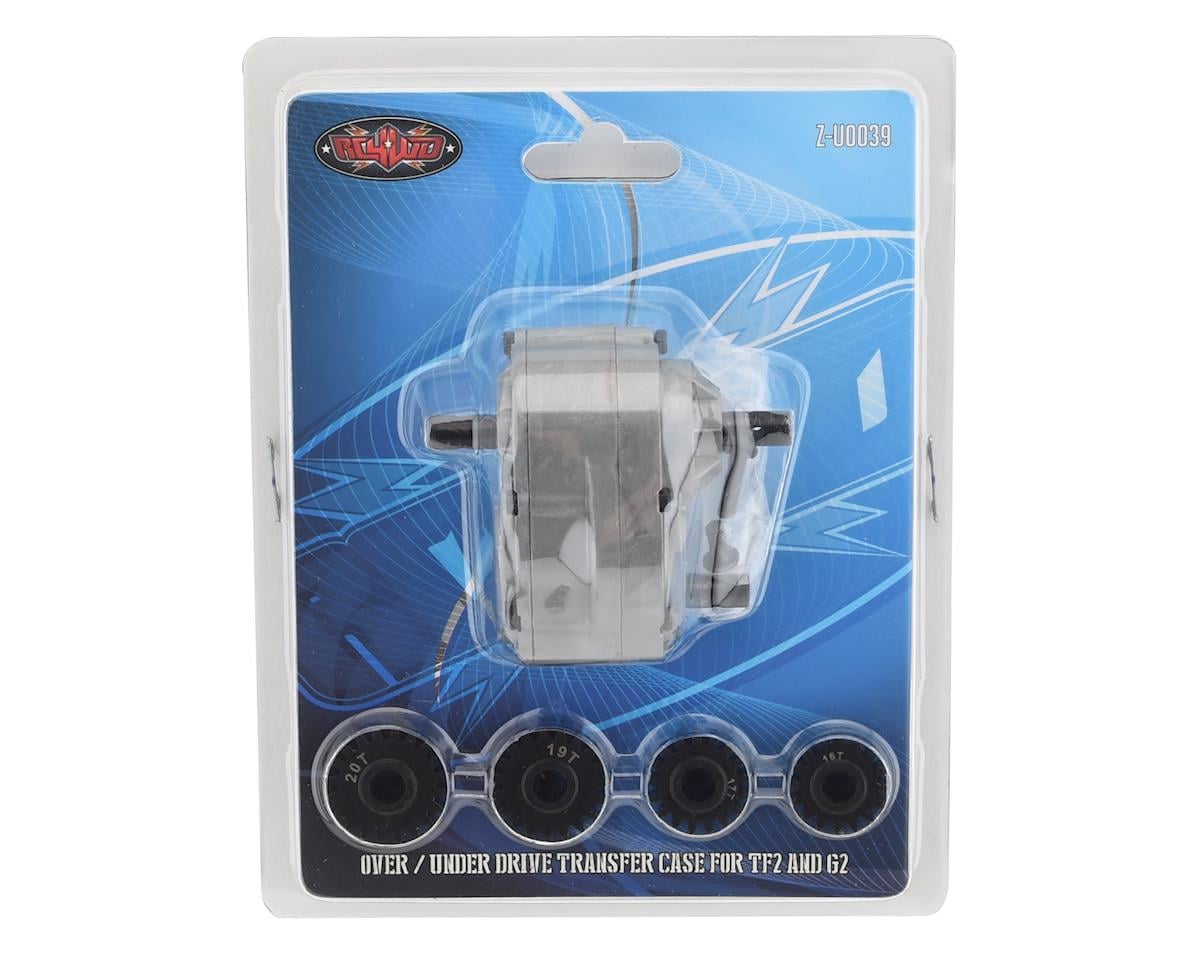

Includes

• RC4WD Over/Under Drive Transfer Case
• 16T Gear
• 17T Gear
• 19T Gear
• 20T Gear
• M3 x 6mm Steel Button Head Cap Screws (Black)
• M3 x 10mm Steel Button Head Cap Screws (Black)
