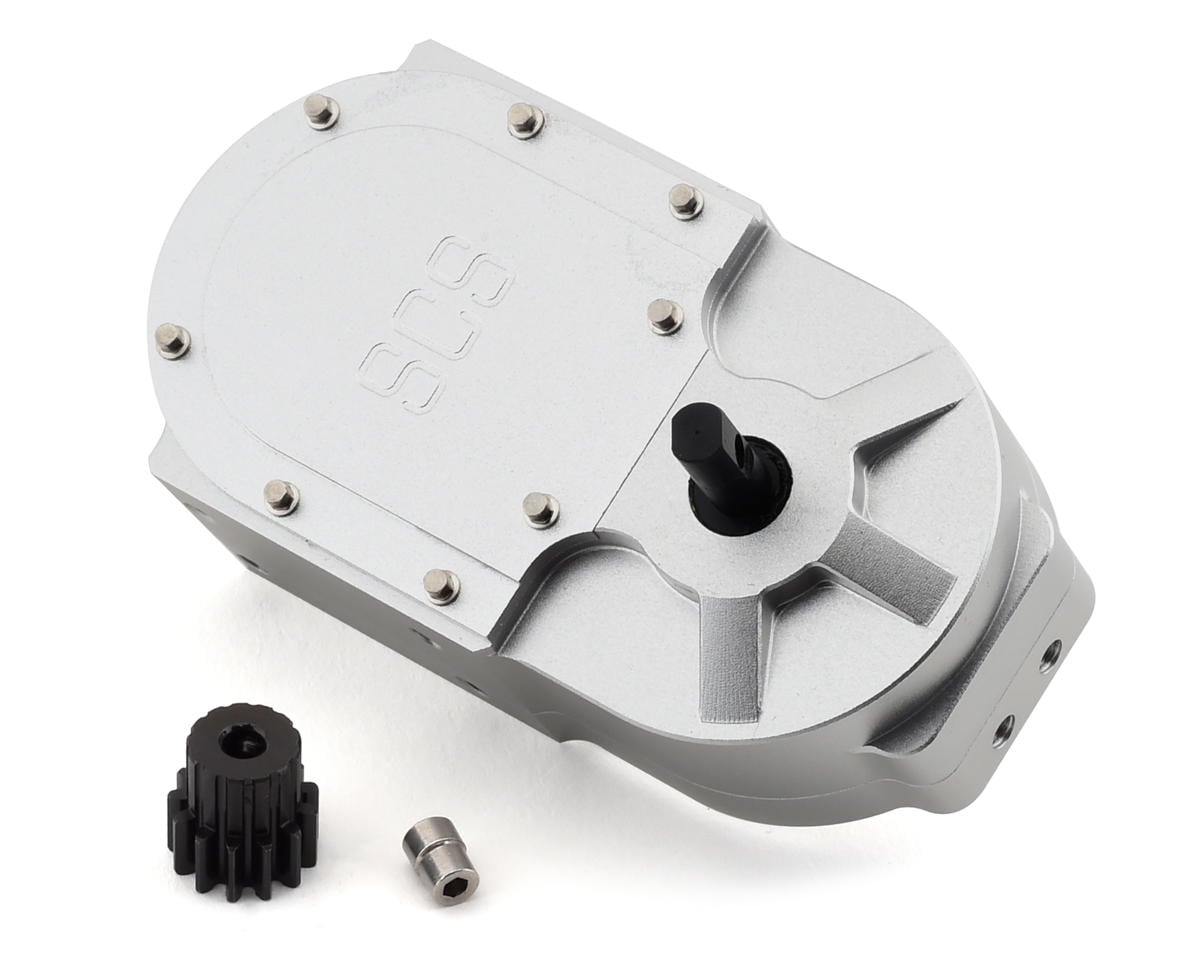

RC4WD SCS Gearbox Monster Drop Transmission

The RC4WD SCS Gearbox Monster Drop Transmission is an officially licensed scale replica of the SCS Gearbox, featuring a CNC machined billet aluminum construction and a 9.1:1 gear ratio.

Specifications

• Body Width: 1.65in / 41.9mm
• Body Length: 2.99in / 76.1mm
• Body Height: 2.36in / 60mm
• Output Shaft Length: 0.47in / 12.0mm
• Output Shaft OD: 0.19in / 5mm
• Gear Ratio: 9.1:1
• Weight: 4.69oz / 132.9g

Important Gear Information

Do not use a pinion larger than 17t 32p. A larger pinion can damage the interior of the case. RC4WD recommends using RC4WD 32p gears with this transmission. The pitch of gears from other brands is not guaranteed and may cause damage to the spur gear.

Includes

• RC4WD SCS Gearbox Monster Drop Transmission
• Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)
• 13 Tooth 32 Pitch Steel Pinion Gear (Black)
• SCS Decal Sheet
