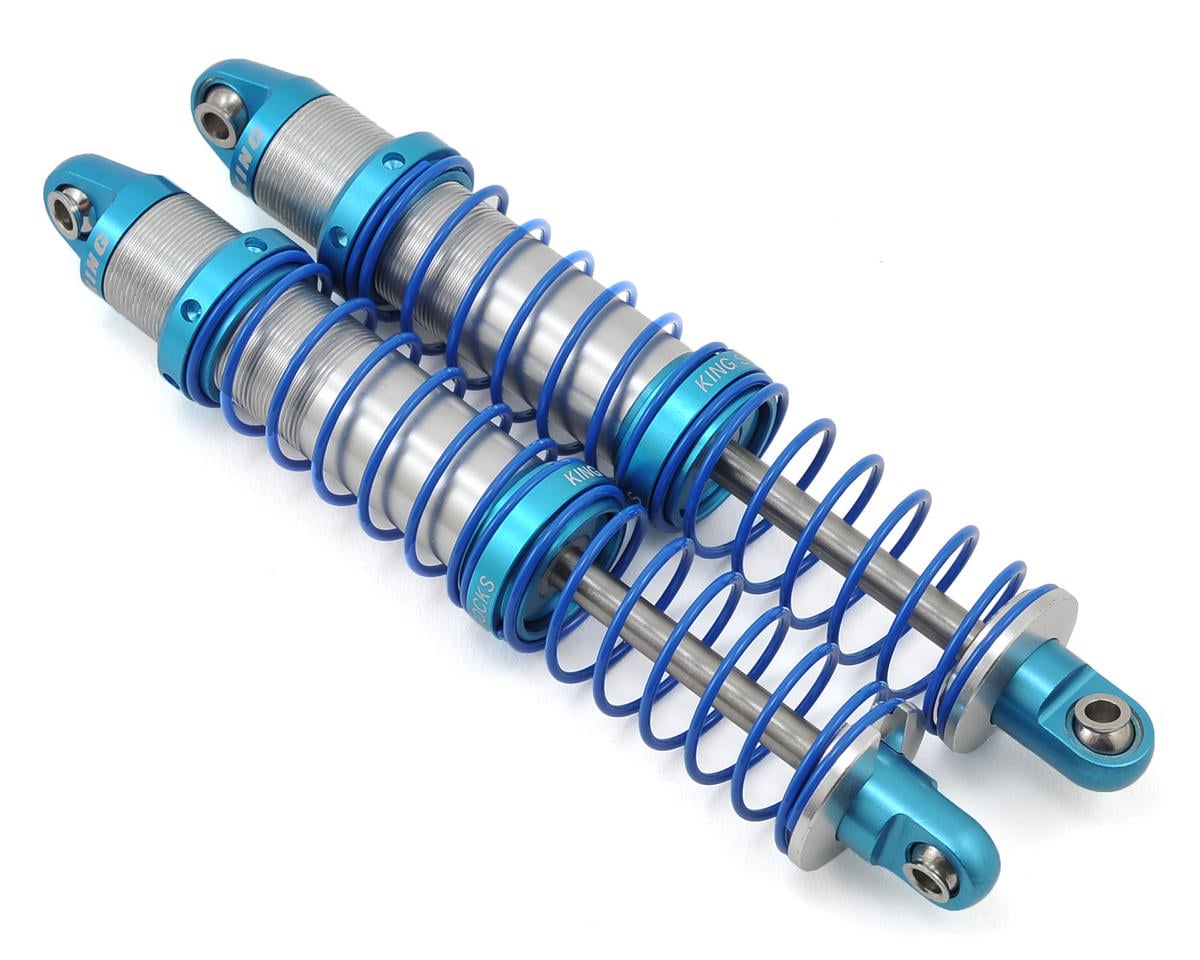

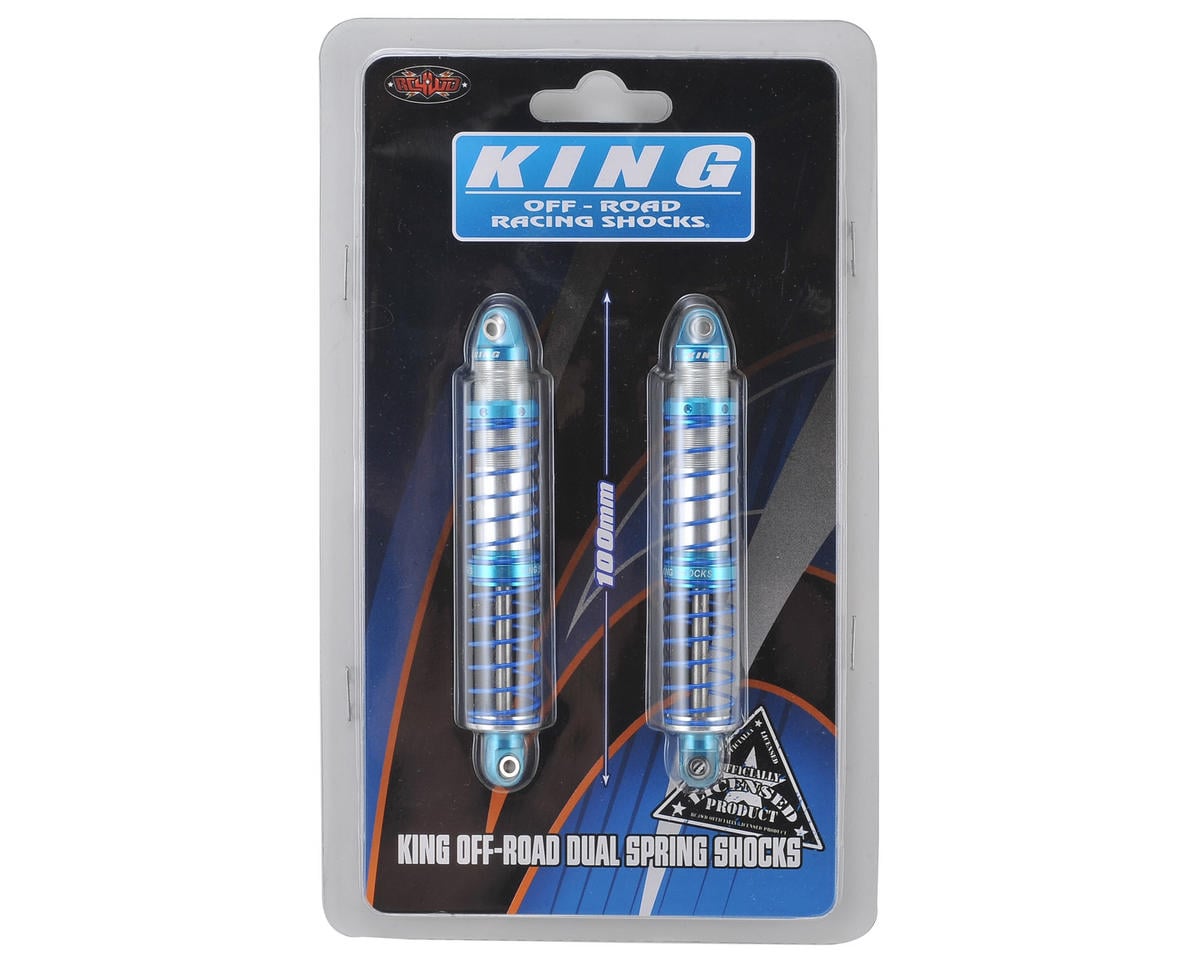

RC4WD King Off-Road 1/10 Scale Dual Spring Shocks (100mm)

RC4WD King Off-Road 1/10 Scale Dual Spring Shocks are fully licensed King replicas designed for scale projects using a 100mm-long shock. They feature a dual spring design, a machined billet aluminum King logo on the top and retainer ring, plus steel rod end balls. The shocks are pre-built and ready to fill with the oil of your choice.

Specifications

• Ball Width: 0.25in / 6.3mm
• Ball Lip Diameter: 0.19in / 4.8mm
• Ball ID: 0.12im / 3mm
• Hole to Hole (Compressed): 2.75in / 70mm
• Hole to Hole (Uncompressed): 3.93in /100mm
• Overall Length: 4.3in / 109.3mm
• Travel Length: 1.18in / 30mm
• Shock Body OD: 0.49in / 12.6mm
• Shaft OD: 0.15in / 3.97mm
• Spring Body OD: 0.66in / 16.98mm
• Spring Body ID: 0.58in / 14.8mm
• Each Weight: 0.91oz / 26g
