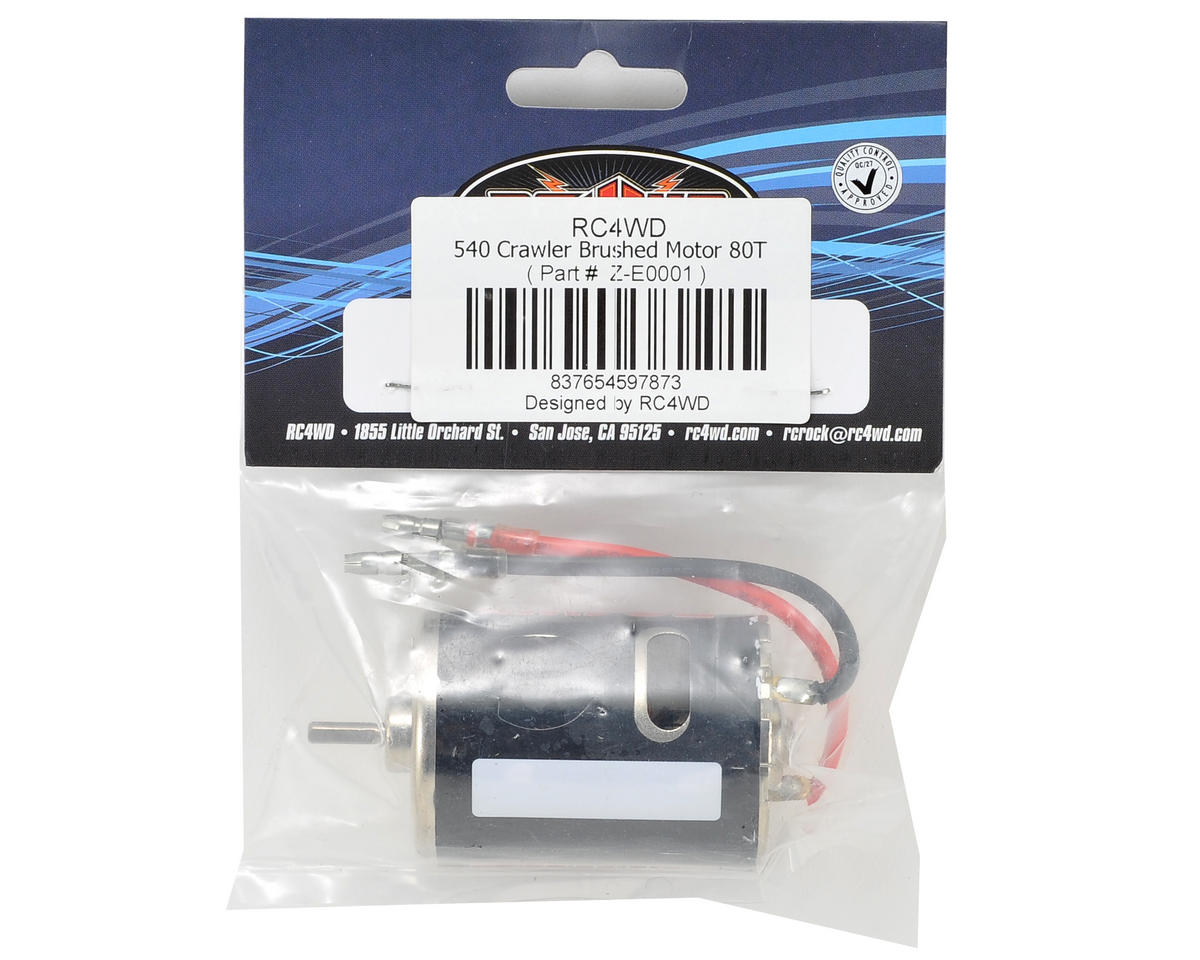

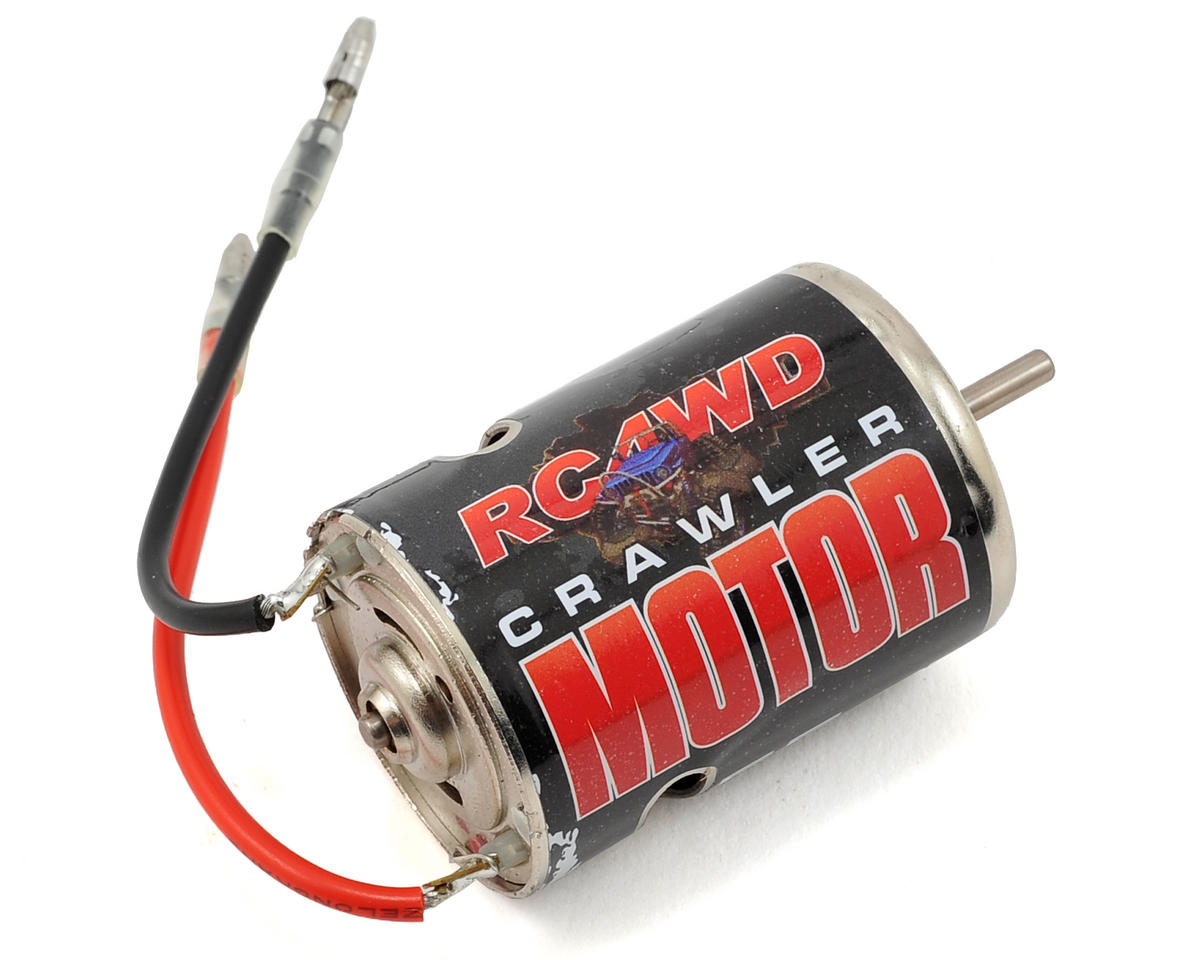

RC4WD 540 Crawler Brushed Motor (80T)

The RC4WD 540 Crawler Brushed Motor features an 80-turn setup tuned for rock climbing and scale driving. It was custom made to fit popular crawler trucks and scale rigs, including Bully, AX10, and Trail Finder vehicles.

Features

• Custom made chrome plated steel 540 can
• Built-in capacitor for minimizing glitches
• High torque magnet and rotor
• Polished bushings
• Small footprint, 50mm long

Specifications

• RPM @ 7.2V (no load): 5500 (±10%), .45Amp current
• RPM Max Efficiency @ 7.2V: 4450 (±10%), 1.38Amp current
• Designed operating temperature range: -30°C to +80°C
• Motor end play: .50mm max
• Noise level: < 60db
