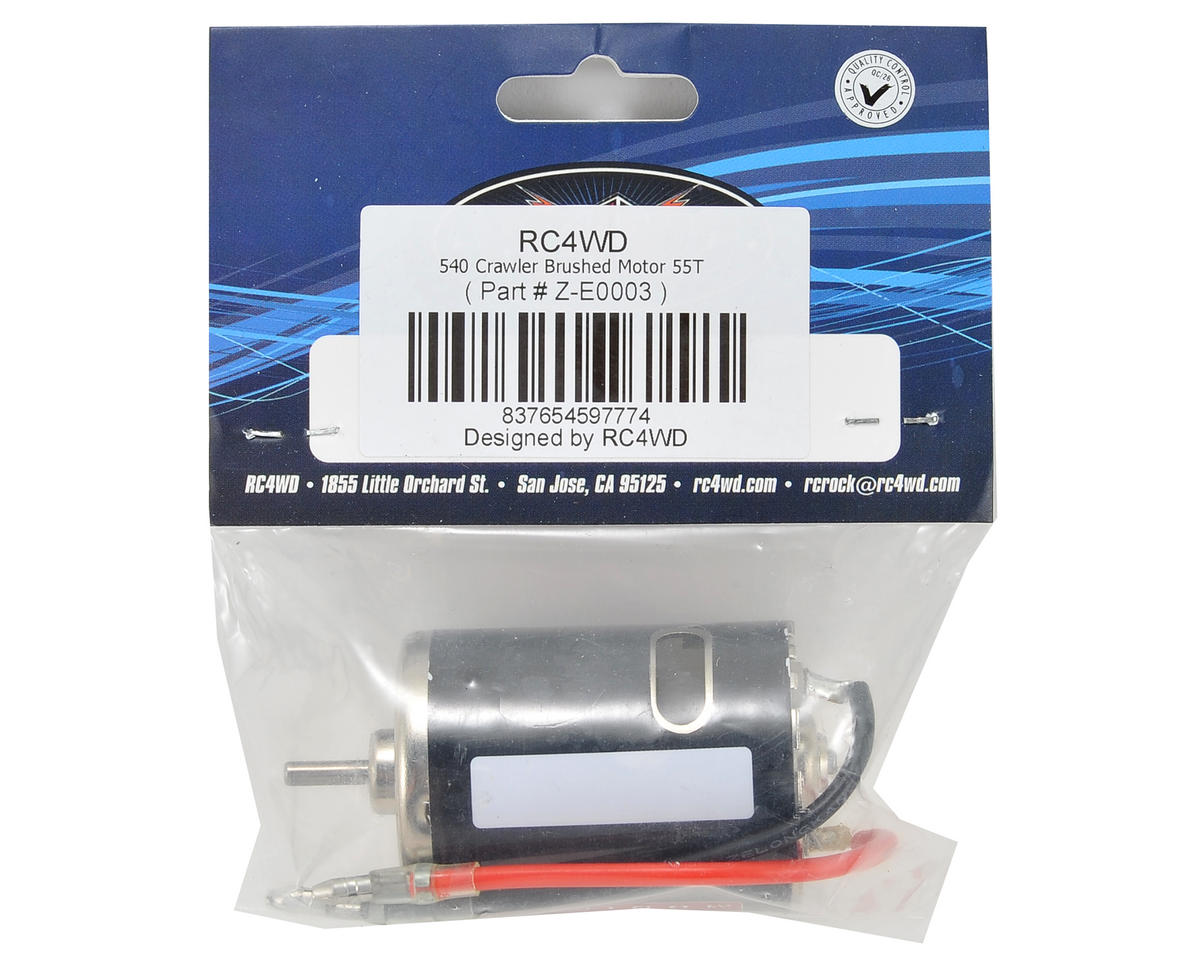

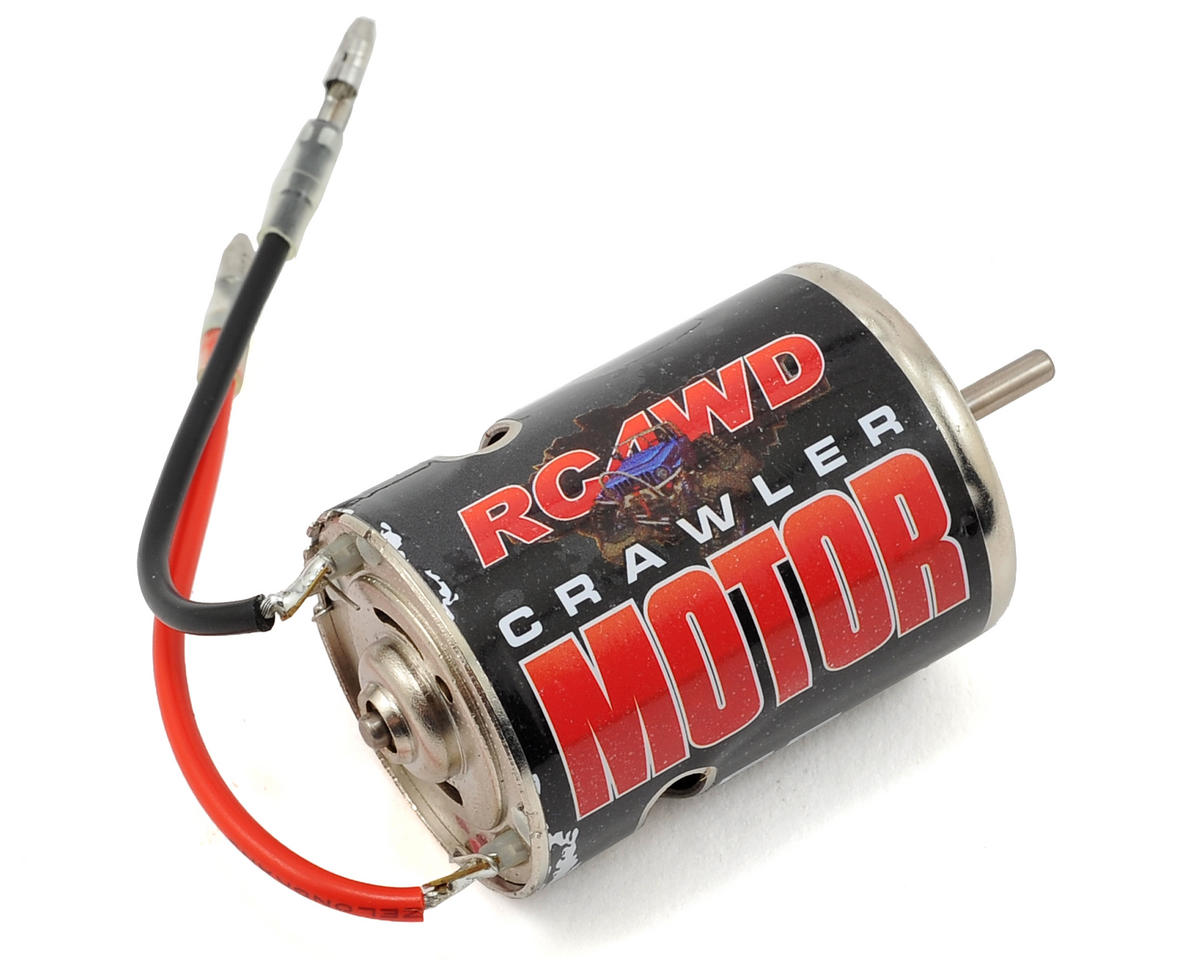

RC4WD 540 Crawler Brushed Motor (55T)

The RC4WD 540 Crawler Brushed Motor features a 55-turn design tuned for rock climbing and scale driving. It includes a chrome-plated steel 540 can, built-in capacitor, high-torque magnet and rotor, and polished bushings.

Features

• Custom-made chrome-plated steel 540 can
• Built-in capacitor for minimizing glitches
• High-torque magnet and rotor
• Polished bushings
• Small footprint: 50mm long

Specifications

• RPM @ 7.2V (no load): 8000 (±10%), .75Amp current
• RPM Max Efficiency @ 7.2V: 6800 (±10%), 3.35Amp current
• Designed operating temperature range: -30°C to +80°C
• Motor end play: .50mm max
• Noise level: < 60db

Custom made to fit popular crawler trucks and scale rigs, including Bully, AX10 and Trail Finder vehicles.
