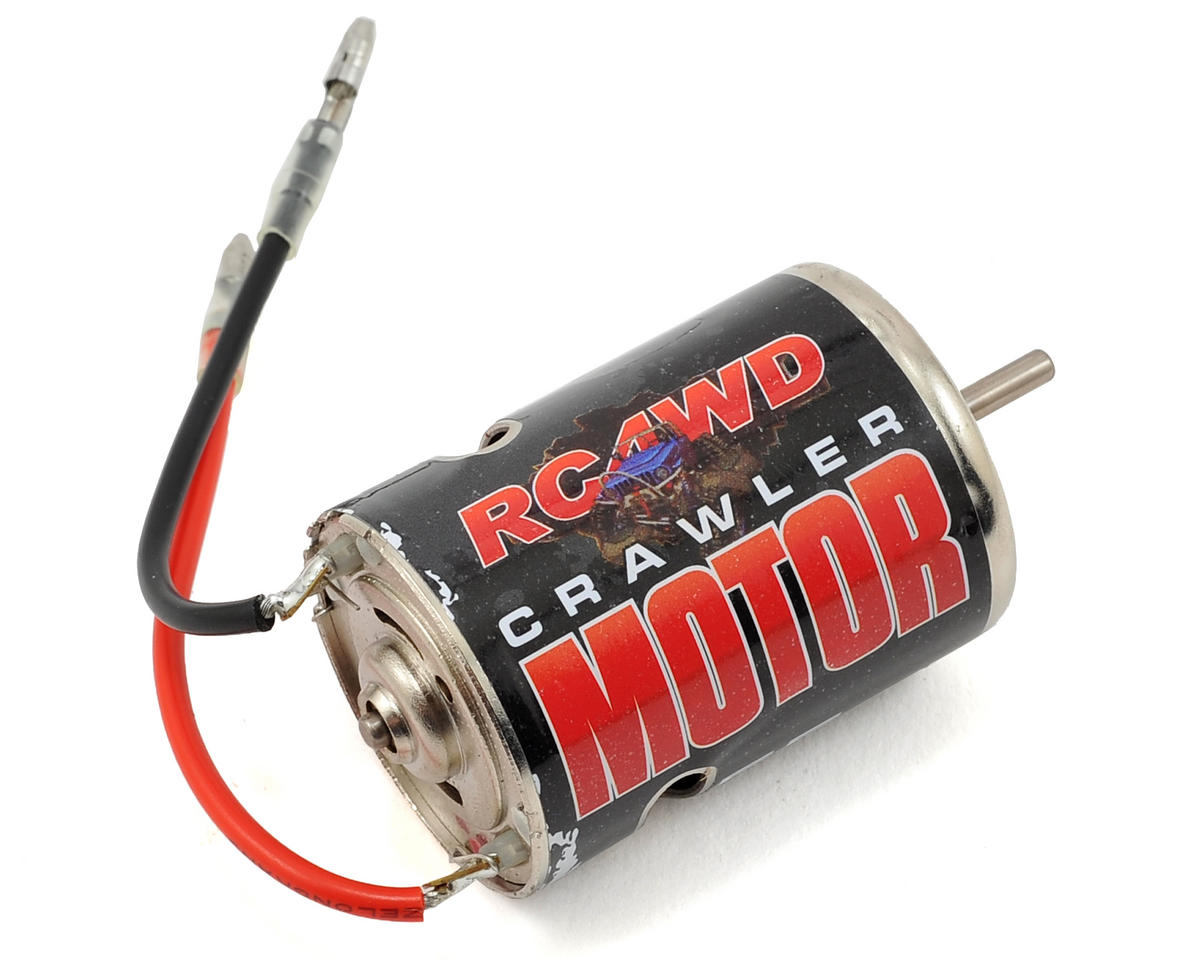

RC4WD 540 Crawler Brushed Motor (45T)

The RC4WD 540 Crawler Brushed Motor (45T) is tuned for rock climbing and scale driving. It features a chrome plated steel 540 can, high torque magnet and rotor, polished bushings, and a built-in capacitor for minimizing glitches.

Features

• Custom made chrome plated steel 540 can
• Built-in capacitor for minimizing glitches
• High torque magnet and rotor
• Polished bushings
• Small footprint: 50mm long
• Custom made to fit popular crawler trucks and scale rigs, including Bully, AX10 and Trail Finder vehicles

Specifications

• RPM @ 7.2V (no load): 9500 (±10%), .95Amp Current
• RPM Max Efficiency @ 7.2V: 81000 (±10%), 4.29Amp Current
• Designed operating temperature range: -30°C to +80°C
• Motor end play: .50mm max
• Noise level: < 60db
