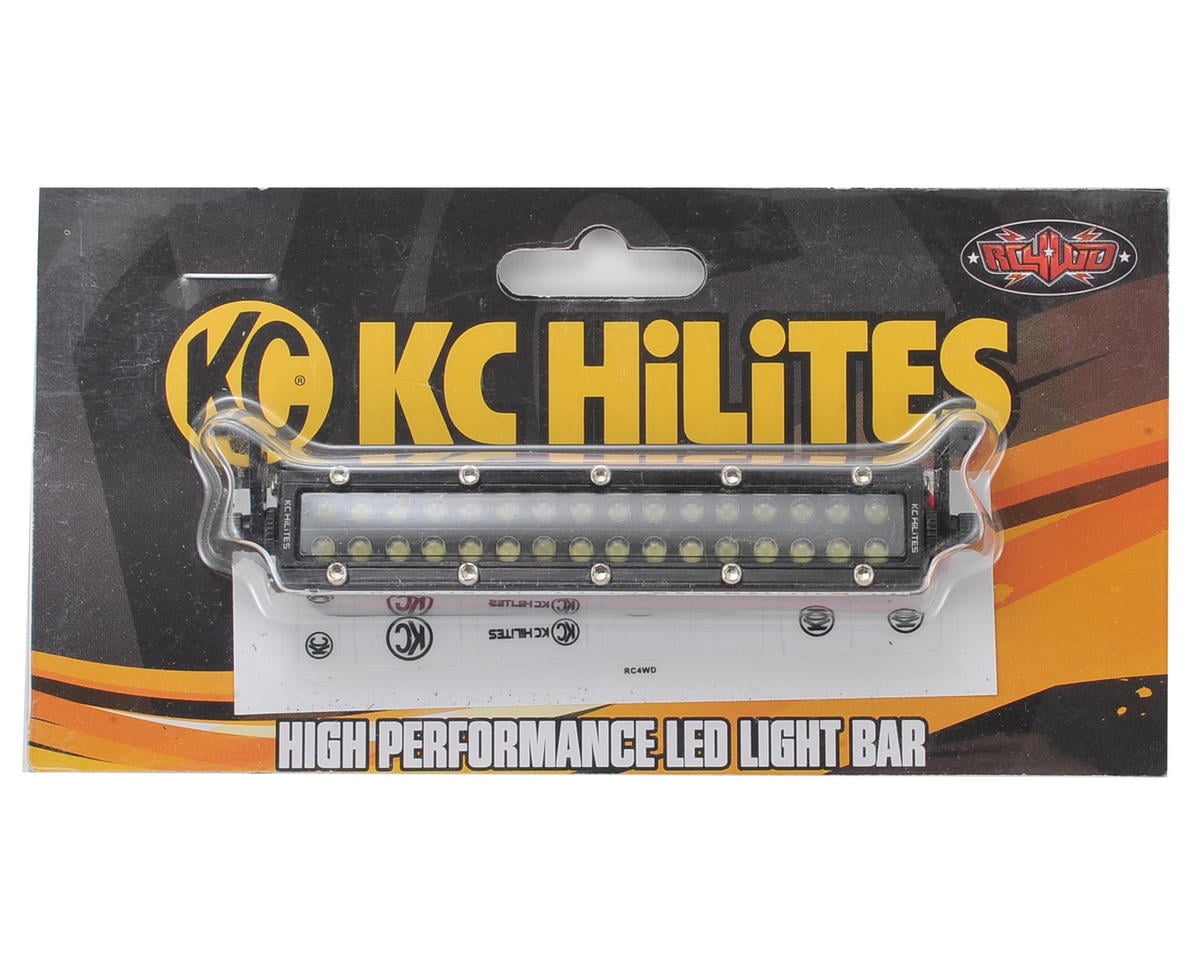

RC4WD 1/10 KC HiLiTES C Series High Performance LED Light Bar (75mm/3")

The RC4WD 1/10 KC HiLiTES C Series High Performance LED Light Bar is an officially licensed 75mm replica designed to add lighting and visibility to your project. It features 32 individual LED bulbs, a cast molded housing, adjustable reversible “L” brackets, and side vents for heat dissipation.

Features

• 32 individual LED bulbs
• Super bright lighting with 32 Lumen output
• Cast molded housing
• Reversible “L” brackets for multiple applications
• Adjustable “L” brackets for rotating the light
• Side vents to dissipate heat
• Standard receiver plug
• 2mm mounting holes

Specifications

• Overall Length: 3.76in / 95.5mm
• Light Bar Width: 2.95in / 75mm
• Overall Height: 0.82in / 21mm
• Light Bar Height: 0.63in / 16.2mm
• Weight: 1.2oz / 34g

Power Notes

• Compatible with a standard 2S LiPo.
• Can be used with an 11.1V/3S LiPo when a BEC is used to regulate voltage below 7.4 volts.
• The unit needs to be directly connected to a 7.4 volt battery.
• The standard receiver plug is provided for ease of use; the receiver will not provide enough power for full brightness.
• Use medium grade thread lock on the “L” bracket nut to prevent loss and keep the light in position.
• Uses 2mm mounting hardware.

Includes

• (1) RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3")
• (2) Light Mounts
• (1) KC HiLiTES Decal Sheet
