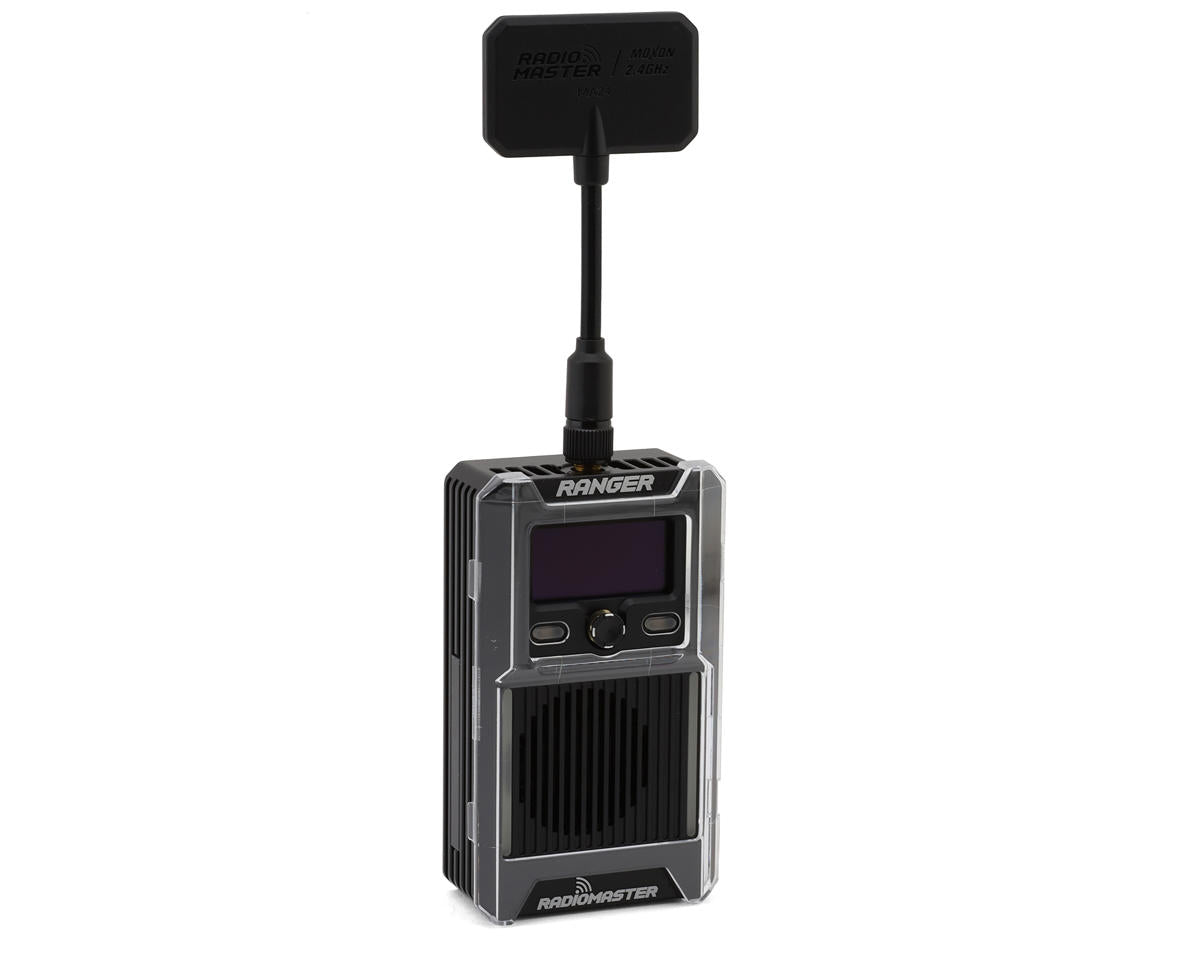

RadioMaster Ranger 2.4GHz ExpressLRS (ELRS) Transmitter Module

The RadioMaster Ranger 2.4GHz ExpressLRS (ELRS) Transmitter Module combines a rugged CNC aluminum case with an OLED display, built-in ExpressLRS Backpack, and high-efficiency cooling system. WiFi and Bluetooth support enable configuration and updates, while customizable shortcut buttons and a built-in accelerometer add convenience.

Features

• Built-in ExpressLRS Backpack
• 64x128px OLED display
• Rugged CNC aluminum case
• High-efficiency cooling system
• Customizable shortcut buttons
• Micro and Nano adapters
• Moxon and T antennas included
• Built-in accelerometer
• WiFi and Bluetooth support
• CRSF cable for compatible Futaba radios

Specifications

• Frequency Range: 2400 MHz - 2480 MHz
• Maximum Packet Rate: 500Hz/F-1000Hz
• RF Output Power: Default 100mW
• Weight: 138g (with Moxon antenna)
• Dimensions: 3.74x2.01x0.98in (95x51x25mm)
• OLED Screen: 64x128px
• Power Supply Voltage: DC 6-16.8V
• Adapters: JR and Nano standard sockets
• Connectivity: WiFi and Bluetooth

Includes

• (1) Ranger Module

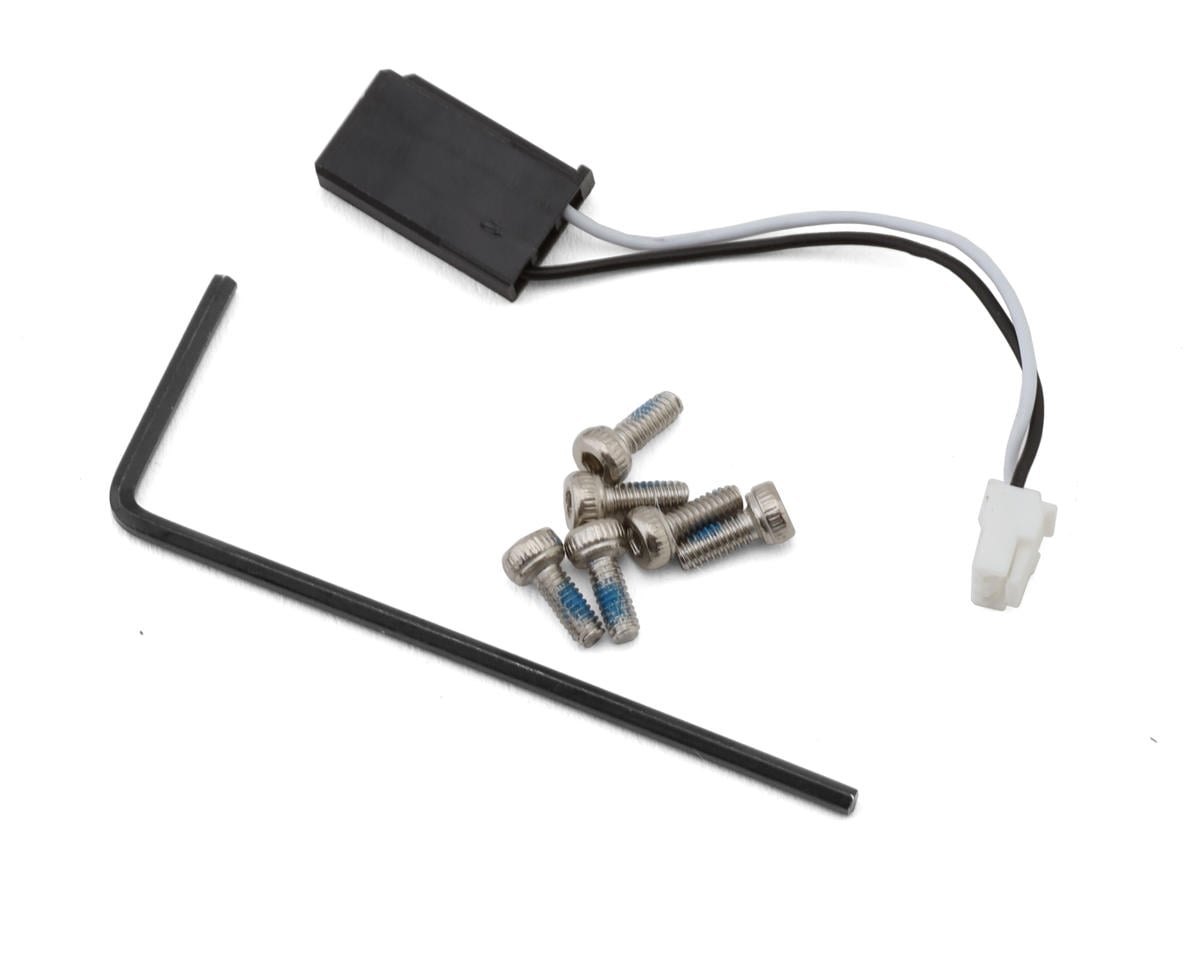

• (1) Futaba CRSF socket cable

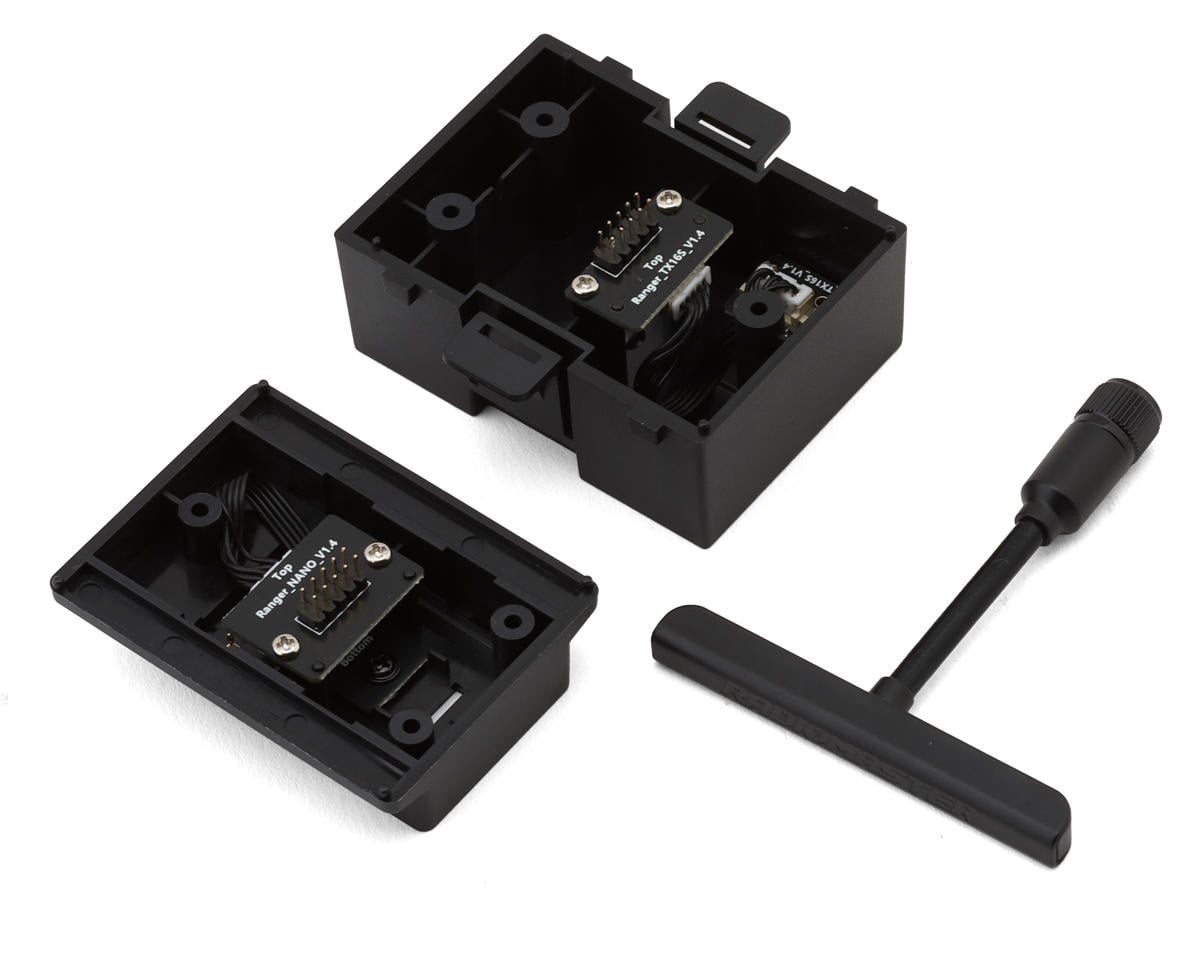

• (1) JR Adapter
• (1) Nano Adapter
• (1) T Antenna
• (1) Moxon Antenna
• (1) Hexagon socket screwdriver
• (3) 2x5mm screws
• (1) Assembly Manual
