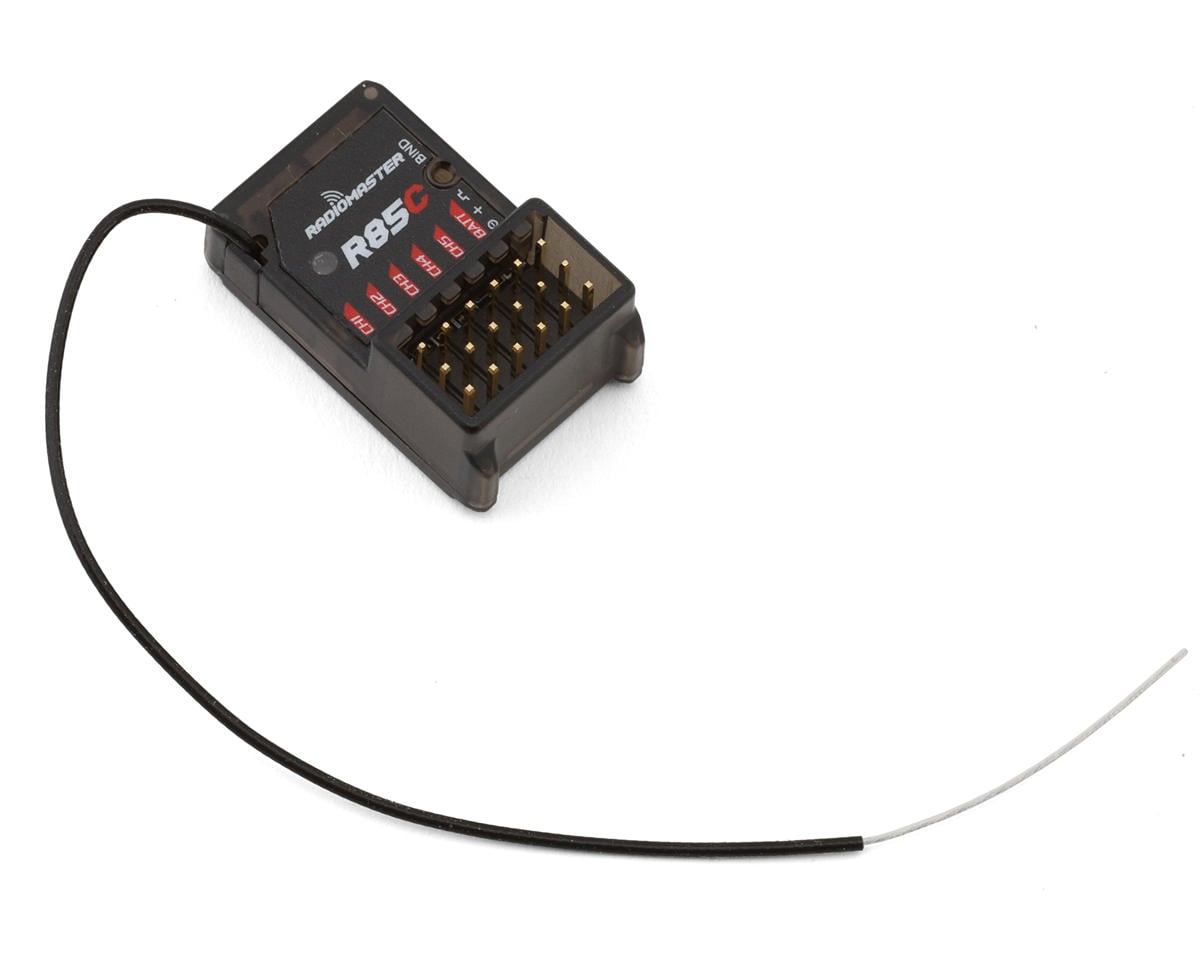

RadioMaster MT12 4-in-1 16-Channel 2.4GHz Radio System w/R85C Receiver

Dimensions (LxWxH): 31.0x18.5x13.0mm
Weight: 5.7g
Power Supply: DC 4.5-8.4V
Antenna Type: High-sensitivity 2.4G antenna
Frequency Range: 2400-2483.5Mhz
Wireless Protocol: D8/D16/SFHSS
Output Channel: 5CH PWM
Telemetry Power: 100mW/20dbm

Name: RadioMaster MT12 4-in-1 16-Channel 2.4GHz Radio System w/R85C Receiver
Brand: RadioMaster
SKU: RM-HP0157.0068.5A2S
Price: 179.99 USD
Availability: InStock

$179.99 USD

Sale Sold out

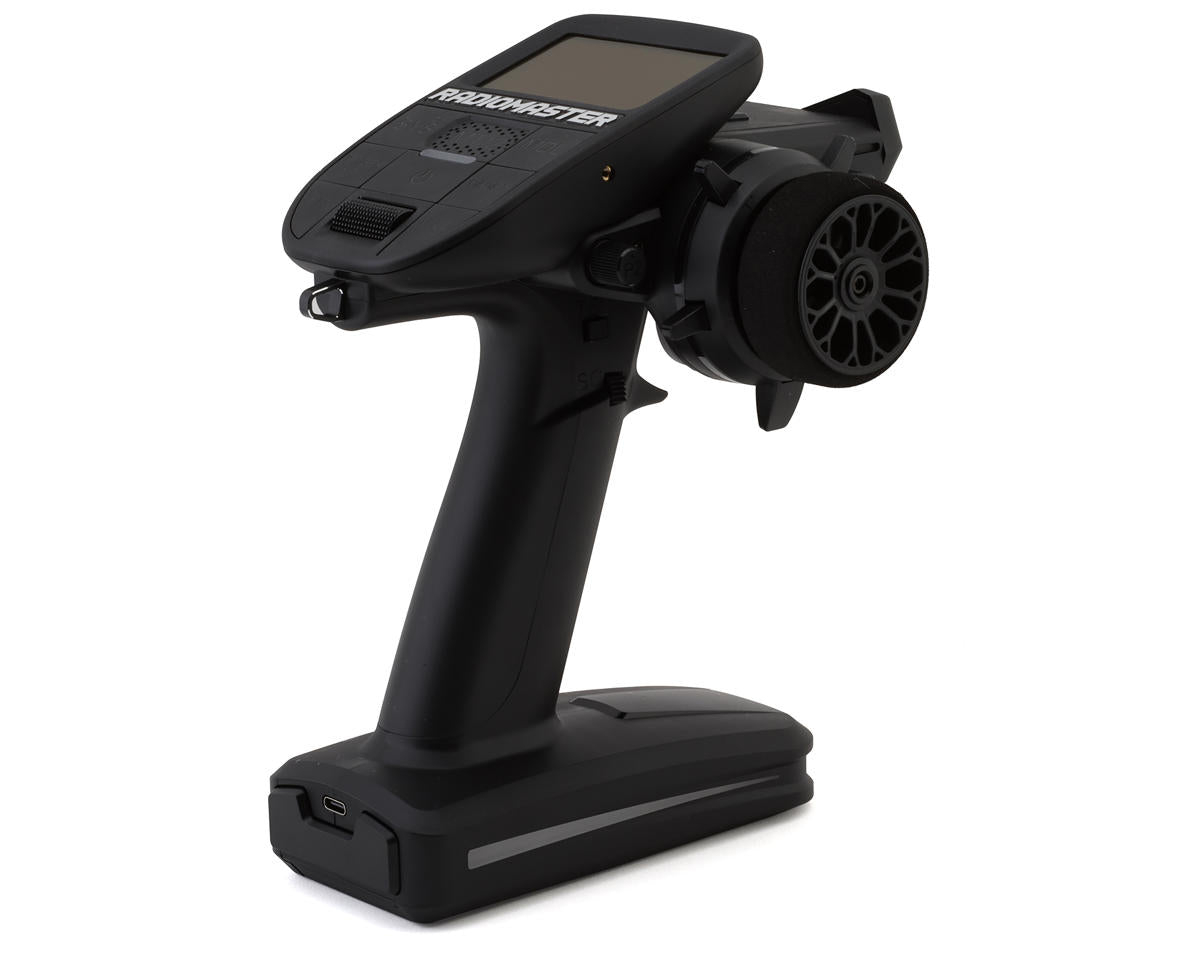

The RadioMaster MT12 is a 16-channel 2.4GHz surface radio system with a 4-in-1 multi-protocol module and an included R85C receiver. Built around EdgeTX, it offers customizable configurations for cars, trucks, boats, and other surface models.

Features

Supported by the EdgeTX, ExpressLRS, and Multi-module projects
16 channels as standard, with expansion to 32 channels on the 4-in-1 version
Preinstalled EdgeTX operating system
4-in-1 multi-protocol internal RF module
STM32F407VGT6 processor with 1MB Flash
Compact ergonomic design with a rotatable antenna
Adjustable trigger and wheel tension and positions
Contactless Hall Sensors with ball bearings

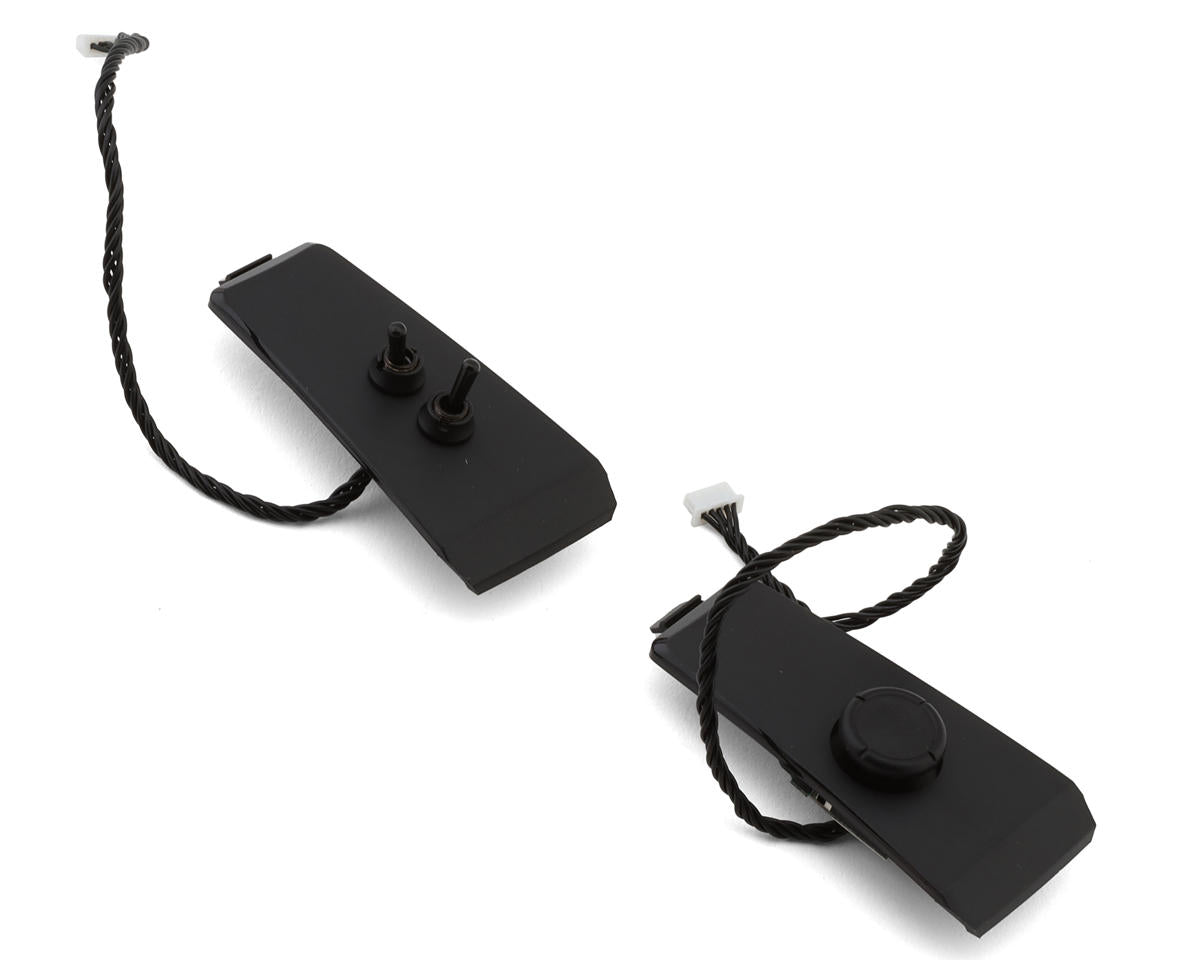

10 physical inputs
Customizable RGB LED lighting

MT12 Transmitter Specifications

Operating Frequency: 2.400GHz-2.480GHz
Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz
Supported Protocols: Module dependent
Operational Current: 160mA for 4-in-1 / 320mA for ELRS
Operational Voltage: DC 6.6-8.4V
Operating System: EdgeTX
Channels: 16 as standard, ability for expansion 32 Channels (4-in-1 only)

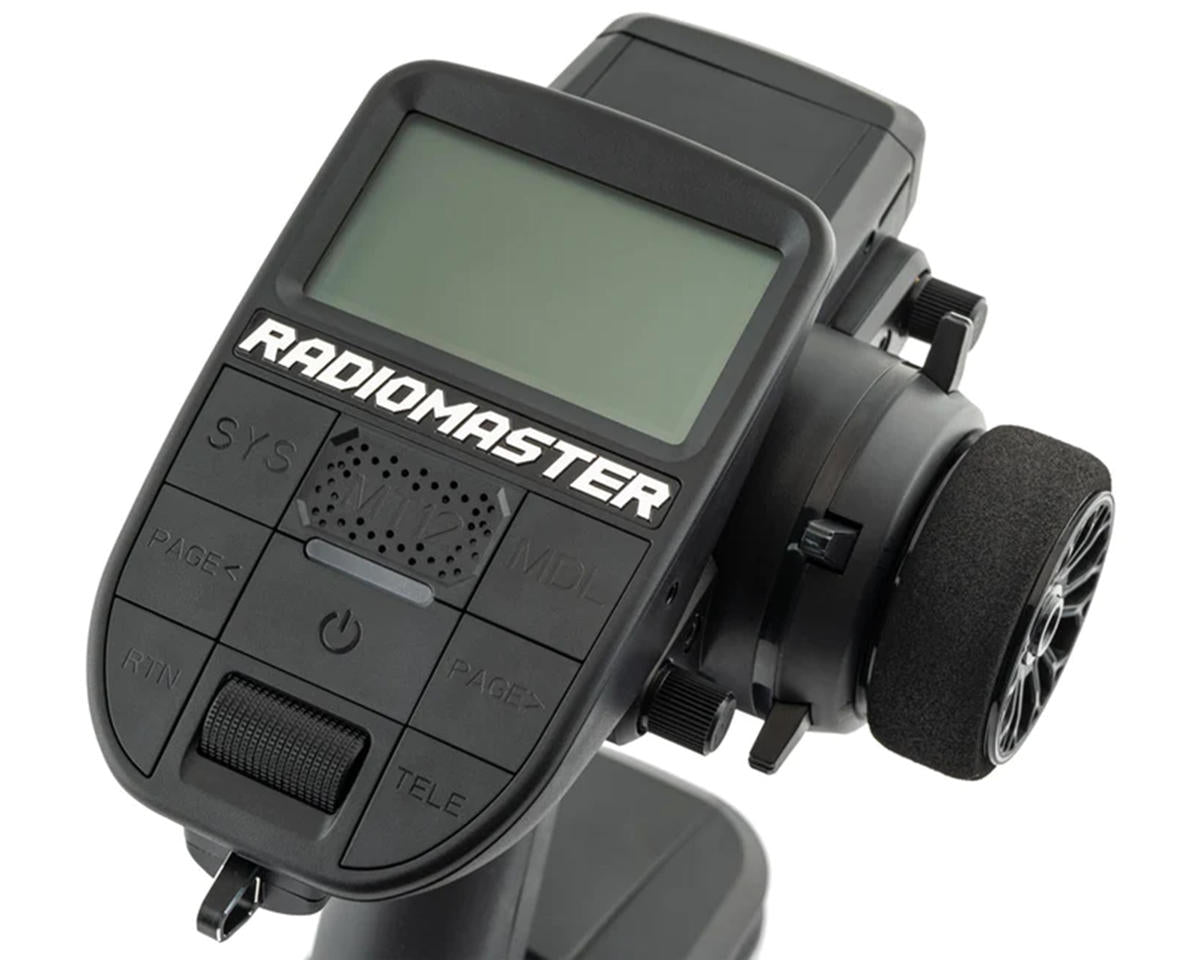

Display: 128x64 Monochrome LCD

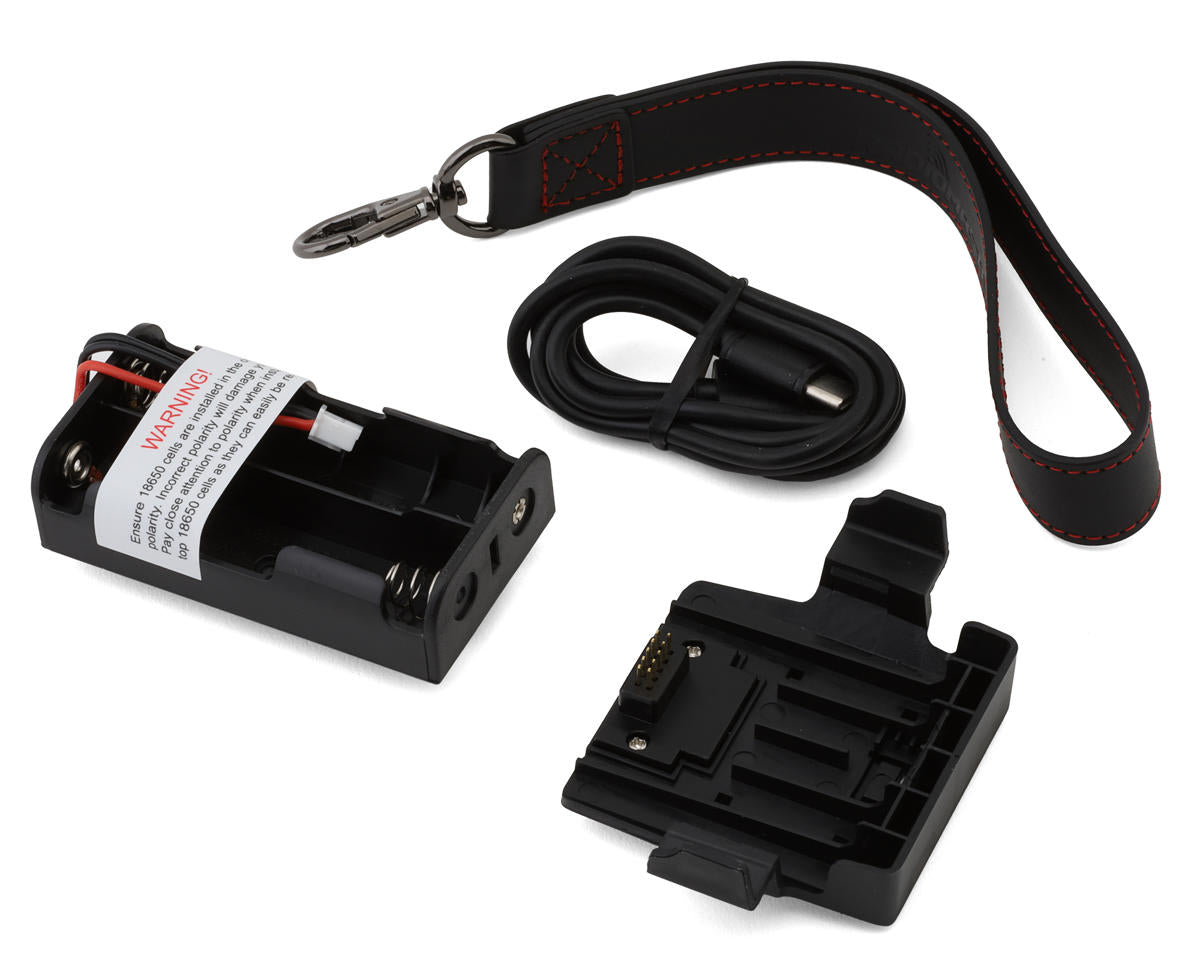

Battery: 2x18650 cells or a 2S 7.4v 5000mAh battery pack
Charging: Built-in USB-C Charging
Firmware Upgrade Method: Via USB or SD card
Wheel and Trigger Sensor: Hall-effect
Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4-in-1 module / TBS Crossfire Nano module)
