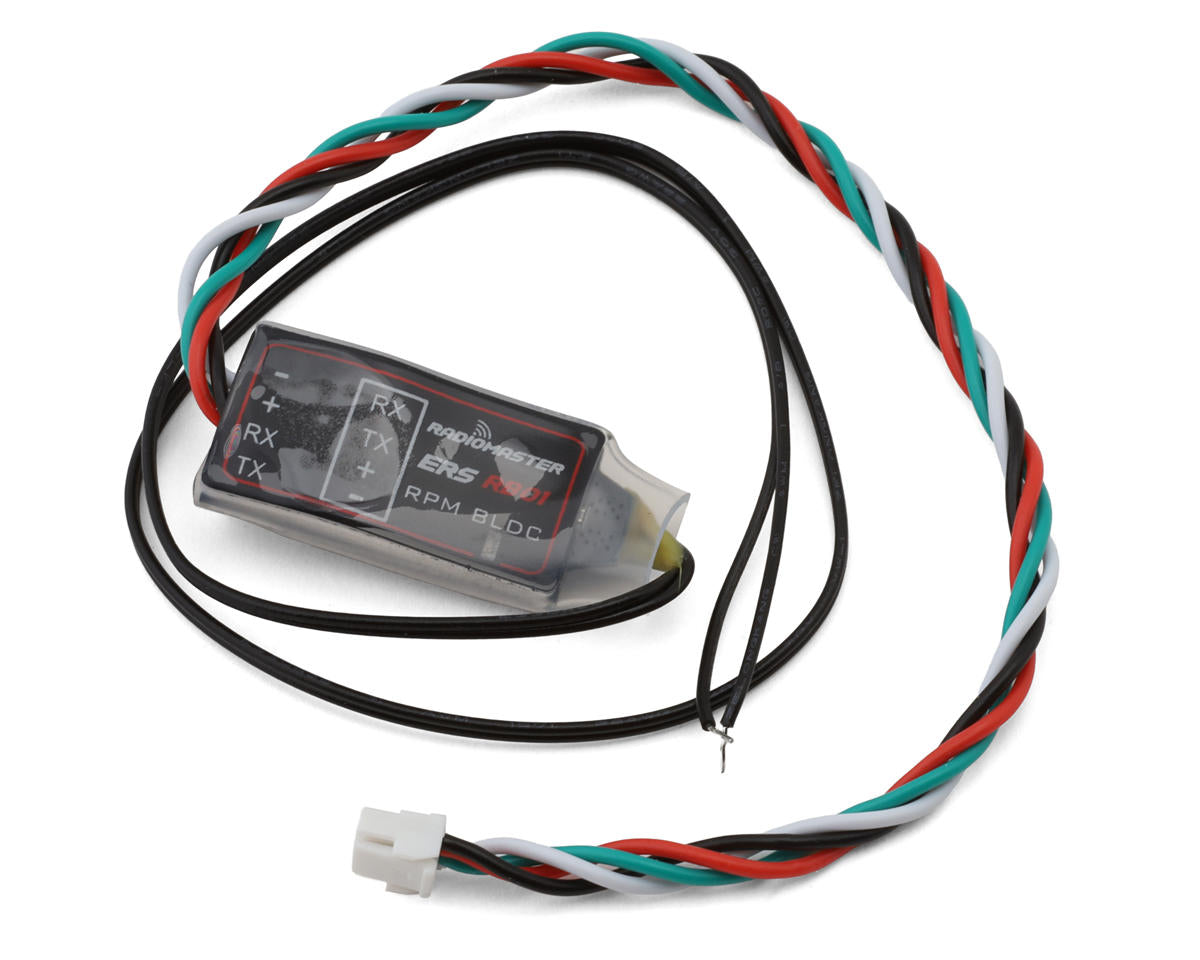

RadioMaster ERS-RB01 RPM-BLDC Telemetry Sensor

The RadioMaster ERS-RB01 RPM-BLDC Telemetry Sensor monitors brushless motor speed in real time and sends RPM data through a CRSF interface to a compatible ExpressLRS receiver for relay to an EdgeTX radio.

It connects directly to two ESC output wires for RPM sensing. Pass-through ports support multi-sensor daisy chains, while the compact design provides plug-and-play installation for RC and robotics applications.

Features

• Real-time brushless RPM monitoring
• Direct ESC wire connection sensing
• CRSF telemetry data transmission
• ExpressLRS receiver compatibility
• Multi-sensor daisy-chain support
• Compact and lightweight design
• Plug-and-play installation
• High-precision RPM measurement

Specifications

• Voltage Range: 5-8.4V DC
• Dimensions (LxWxH): 1.1x0.47x0.31in (28x12x8mm)
• Weight: 0.17oz (4.8g)

Includes

• (1) ERS-RB01 RPM-BLDC Telemetry Sensor
