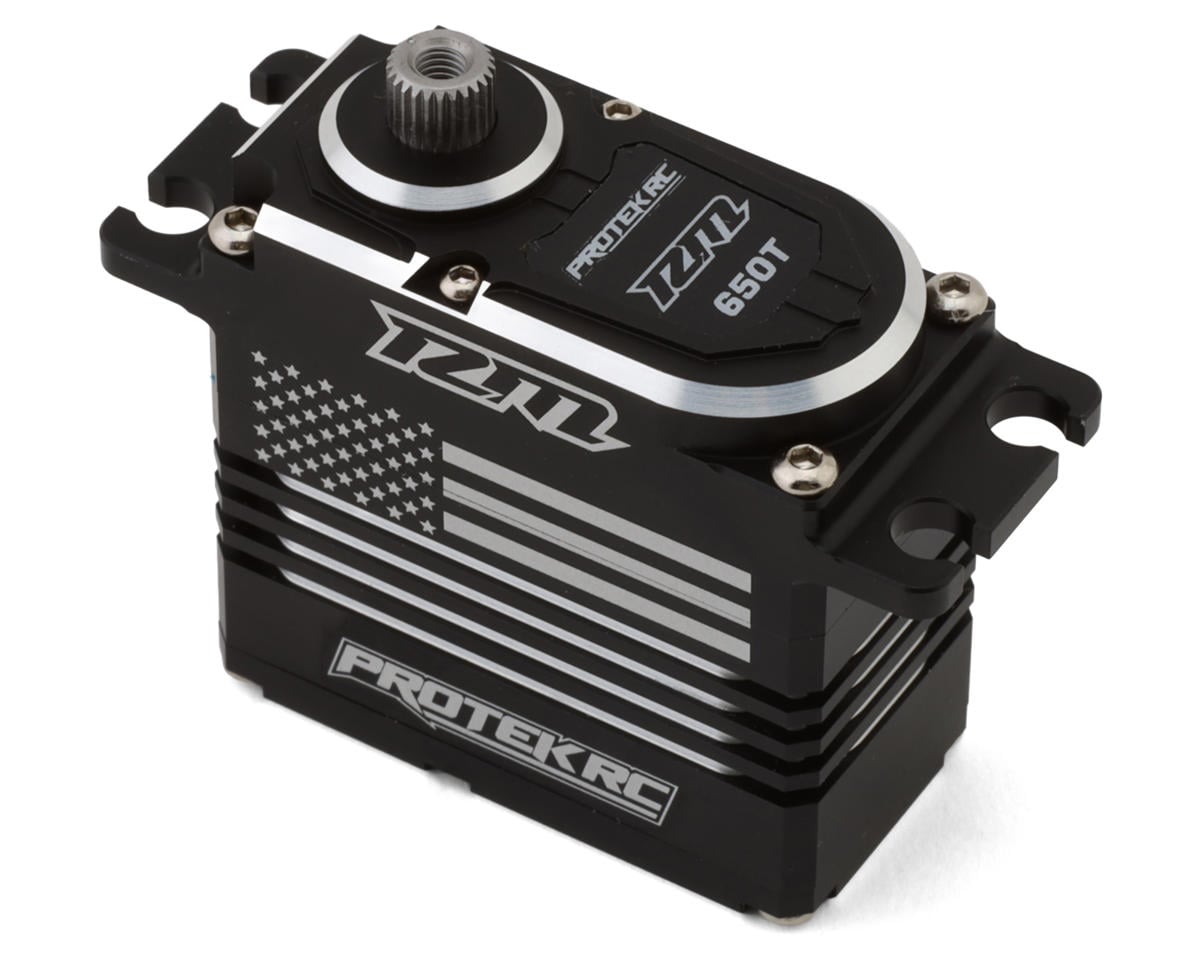

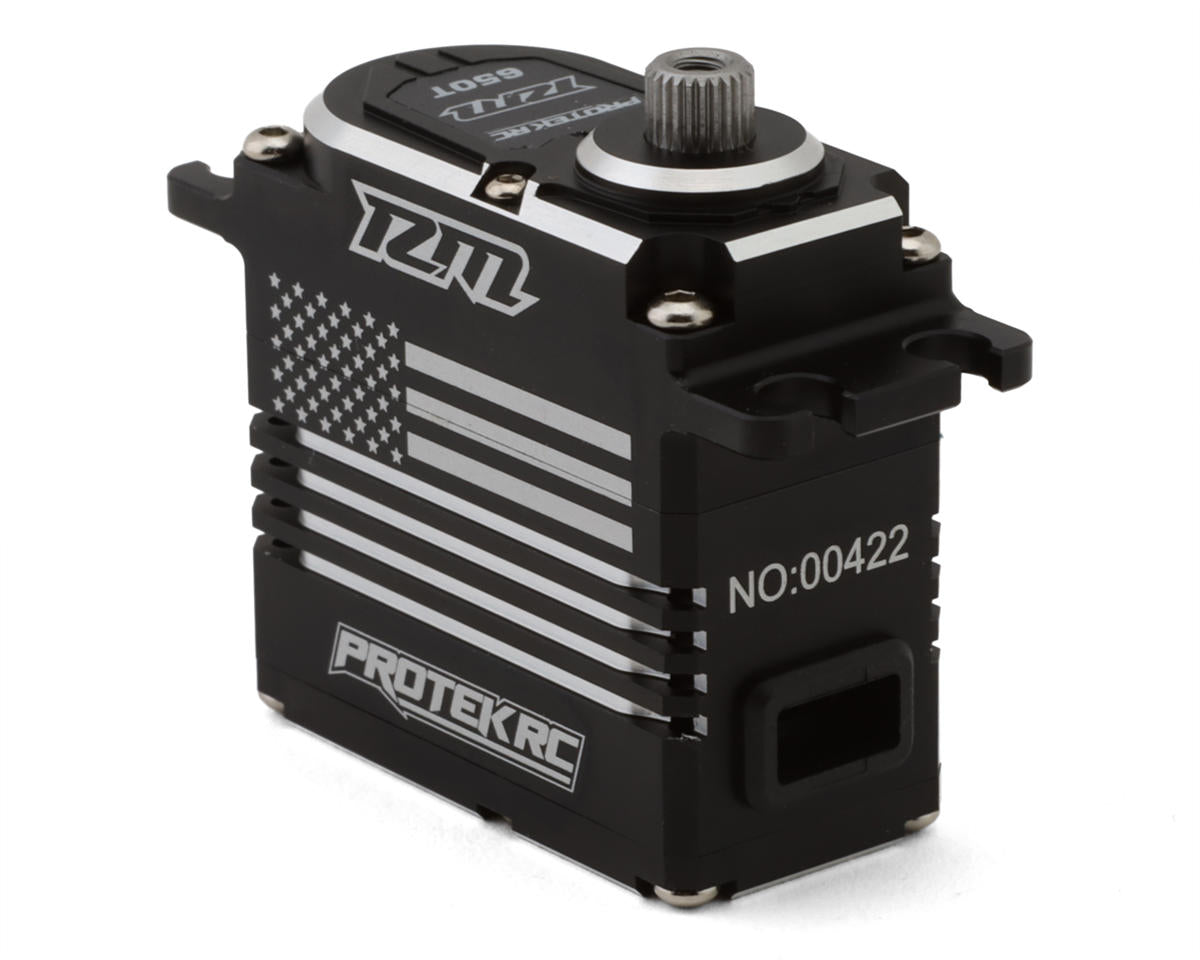

ProTek RC RM650T "Maifield Edition" High Torque Brushless Servo

The ProTek RC RM650T “Maifield Edition” High Torque Brushless Servo combines a brushless motor, high-voltage operation, metal gears, and an anodized aluminum case for 1:10 and 1:8 scale applications. Its USA flag laser-etched case features Ryan Maifield’s initials.

Features

• High-torque Ryan Maifield signature race servo
• Brushless motor for smooth, precise steering
• Dynamic torque up to 650oz-in (46.8 kg-cm) at 7.4V
• Operating speed of 0.11/60° sec at 7.4V
• Operating voltage from 6.0V - 8.4V
• Black anodized aluminum case with heat-sink center section
• Metal gears with Lifetime Gear Warranty
• Dual ball bearings
• Detachable 150mm and 300mm servo leads with gold-plated connectors
• Designed for 1/8 nitro and electric off-road racing

Specifications

• Application: 1:10/1:8 Scale
• Operating Voltage: 6.0V - 8.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 6.0V: 0.13/60° sec
• Operating Speed @ 7.4V: 0.11/60° sec
• Dynamic Torque @ 6.0V: 600oz-in (43.2 kg-cm)
• Dynamic Torque @ 7.4V: 650oz-in (46.8 kg-cm)
• Motor Type: Brushless Digital
• Output Shaft: 25T
• Gears: Metal w/Lifetime Gear Warranty
• Weight: 2.53oz (72g)
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.57x0.79x1.48in (40x20x37.8mm)
• Length (Bottom to Mount): 1.11in (28.4mm)

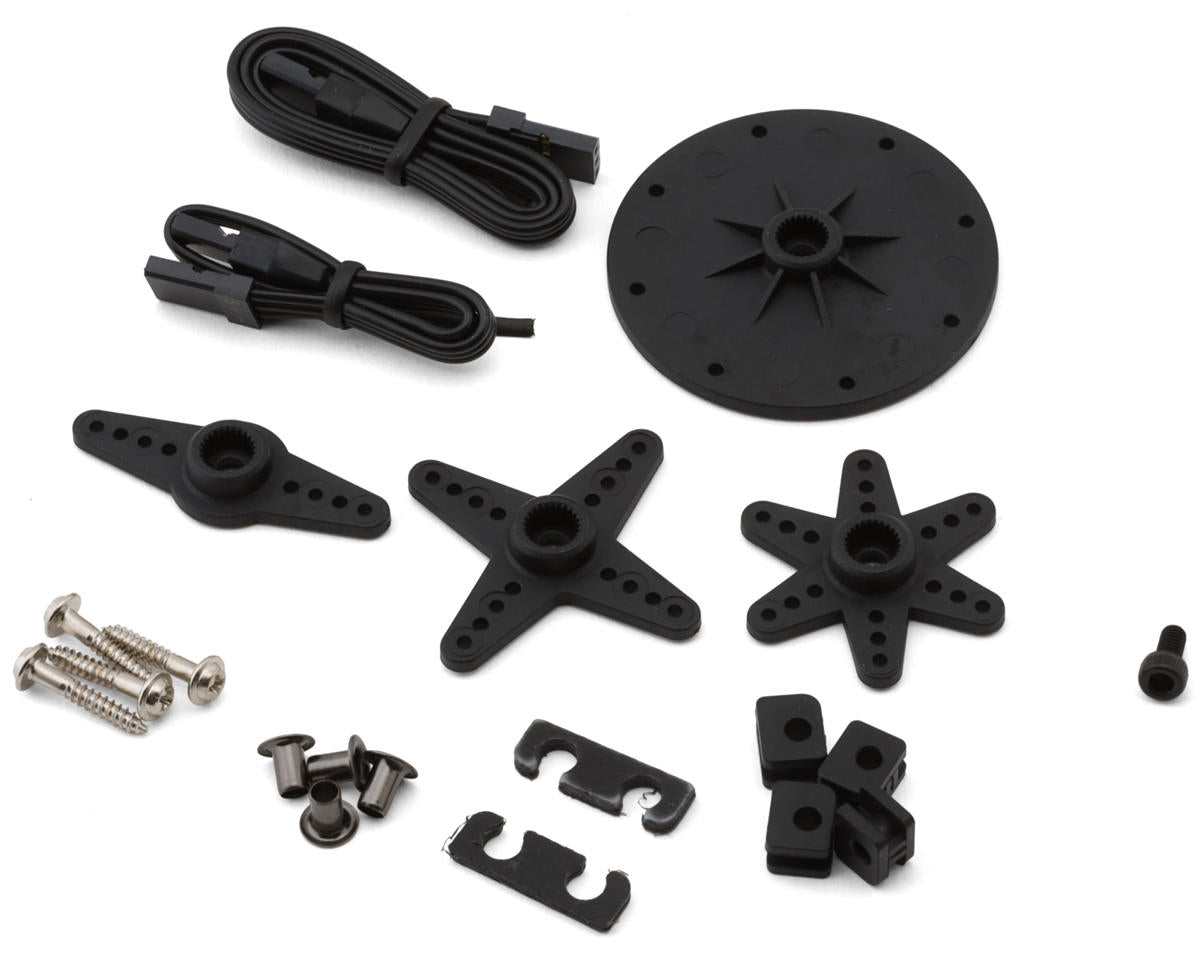

Includes

• (1) Lifetime Gear Warranty
• (1) RM650T “Maifield Edition” High Torque Brushless Servo
• (1) Composite Servo Horn Assortments

Tech Note

If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
