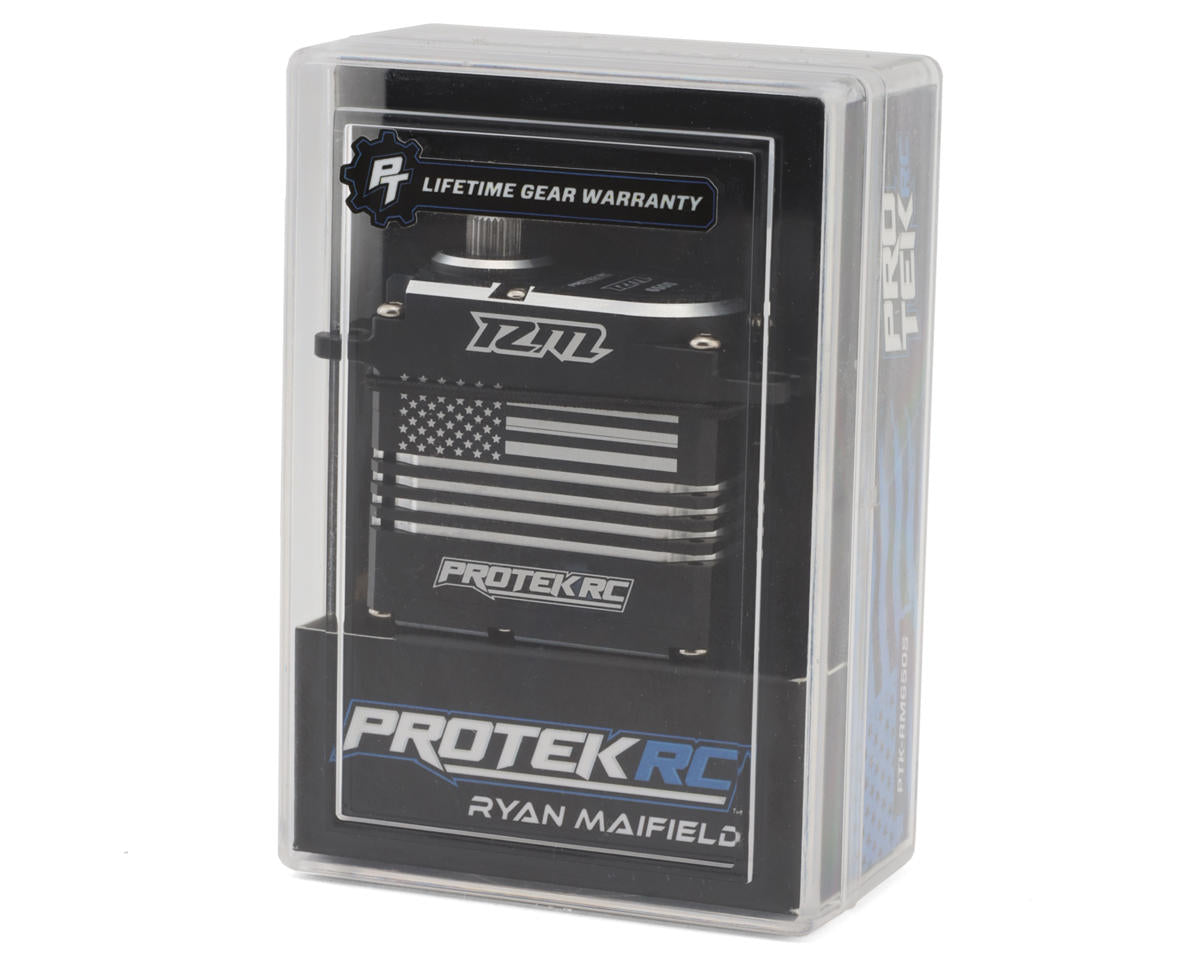

ProTek RC RM650S "Maifield Edition" High Speed Brushless Servo

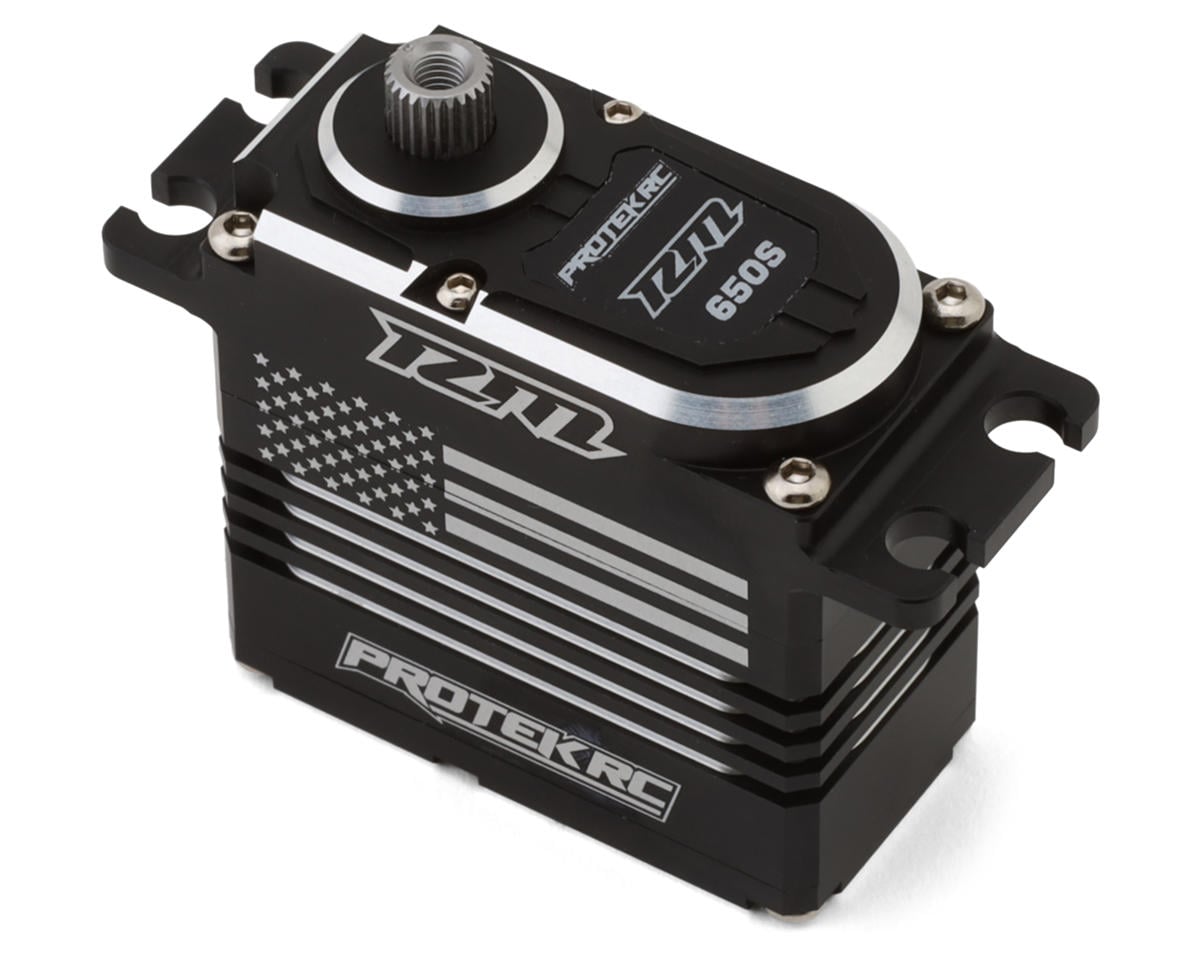

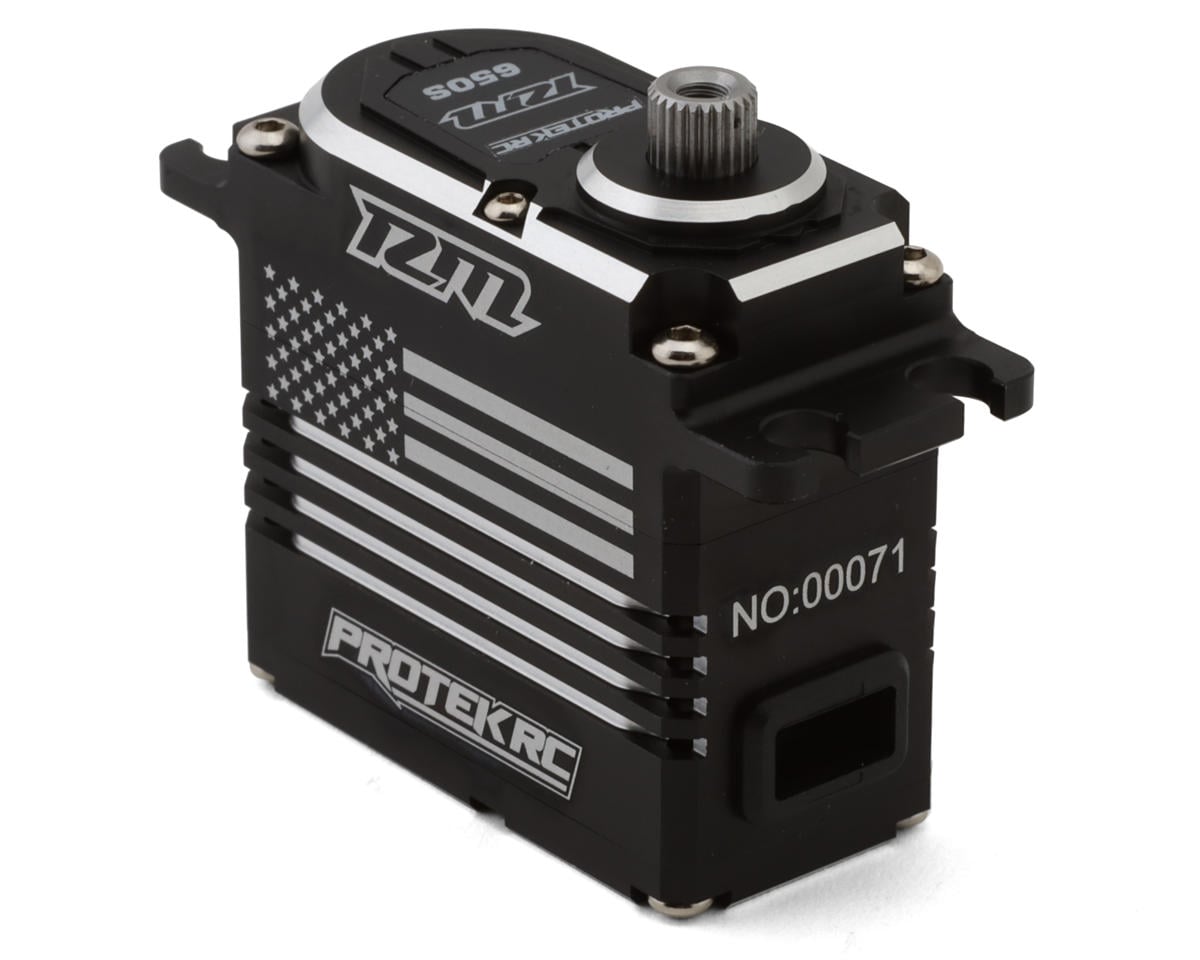

The ProTek RC RM650S "Maifield Edition" is a high-speed brushless digital servo for 1:10 and 1:8 scale applications. It features a black anodized aluminum case with a heat-sink center section, metal gears, dual ball bearings, and a 25T output shaft.

High-voltage operation provides speeds down to 0.08/60° sec at 7.4V and dynamic torque up to 535 oz-in (38.5 kg-cm). The servo includes detachable 150mm and 300mm servo leads with gold-plated connectors, plus an aluminum clamping servo horn.

Features

• Ryan Maifield signature high-speed race servo
• Brushless motor with precise steering response
• Operating voltage: 6.0V - 8.4V
• Special anodized aluminum case with USA flag laser-etched design and Ryan Maifield initials
• Full metal gears with Lifetime Gear Warranty
• Dual ball bearings and heat-sink center section
• 25T output shaft
• Operating speed: 0.09/60° sec at 6.0V; 0.08/60° sec at 7.4V
• Dynamic torque: 458 oz-in (32.9 kg-cm) at 6.0V; 535 oz-in (38.5 kg-cm) at 7.4V

Specifications

• Application: 1:10/1:8 Scale
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Motor Type: Brushless Digital
• Weight: 2.53oz (72g)
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.57x0.79x1.48in (40x20x37.8mm)
• Length (Bottom to Mount): 1.11in (28.4mm)

Includes

• Lifetime Gear Warranty
• RM650S "Maifield Edition" High Speed Brushless Servo
• Aluminum Clamping Servo Horn
• Servo Hardware and Grommets
• Detachable 150mm and 300mm servo leads with gold-plated connectors

Tech Note: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
