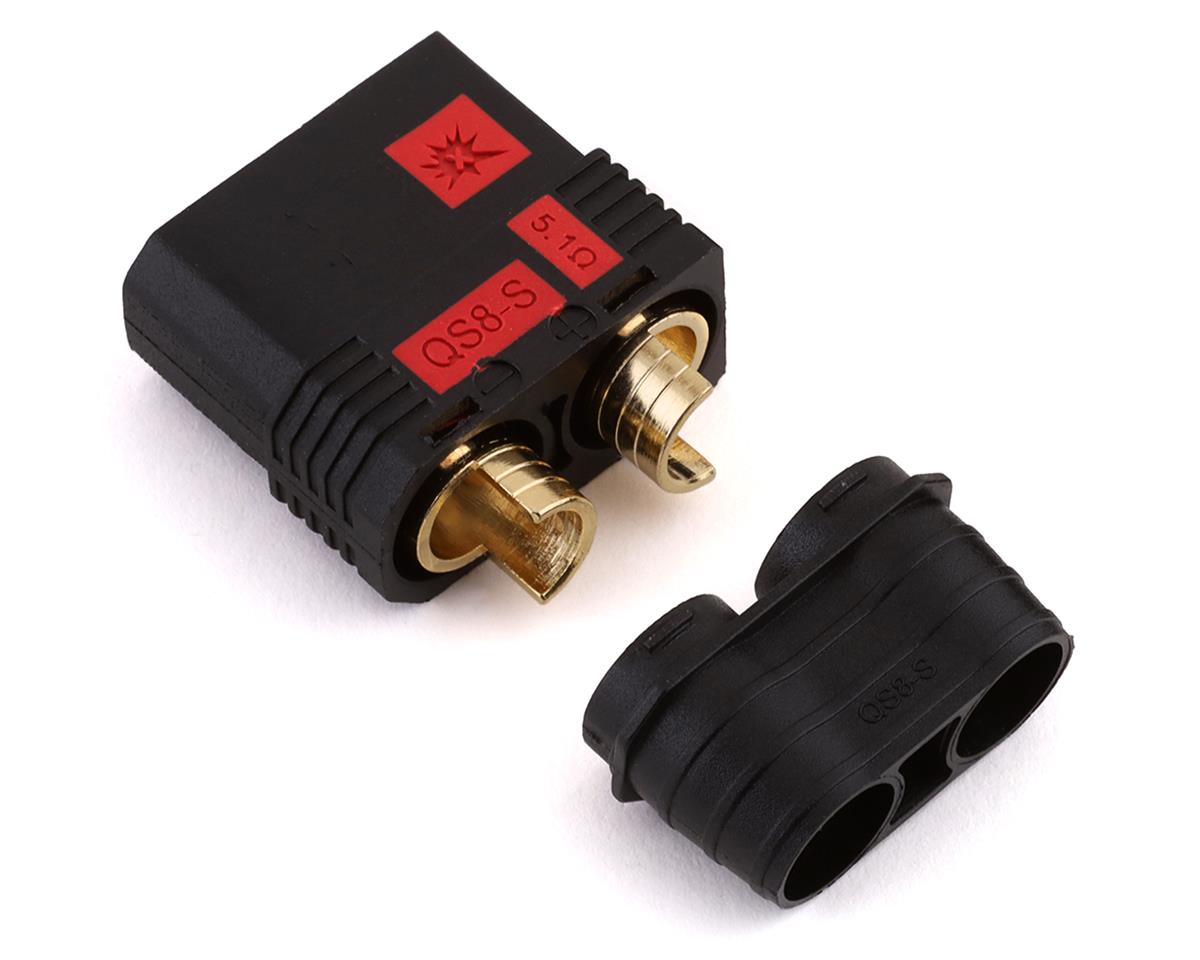

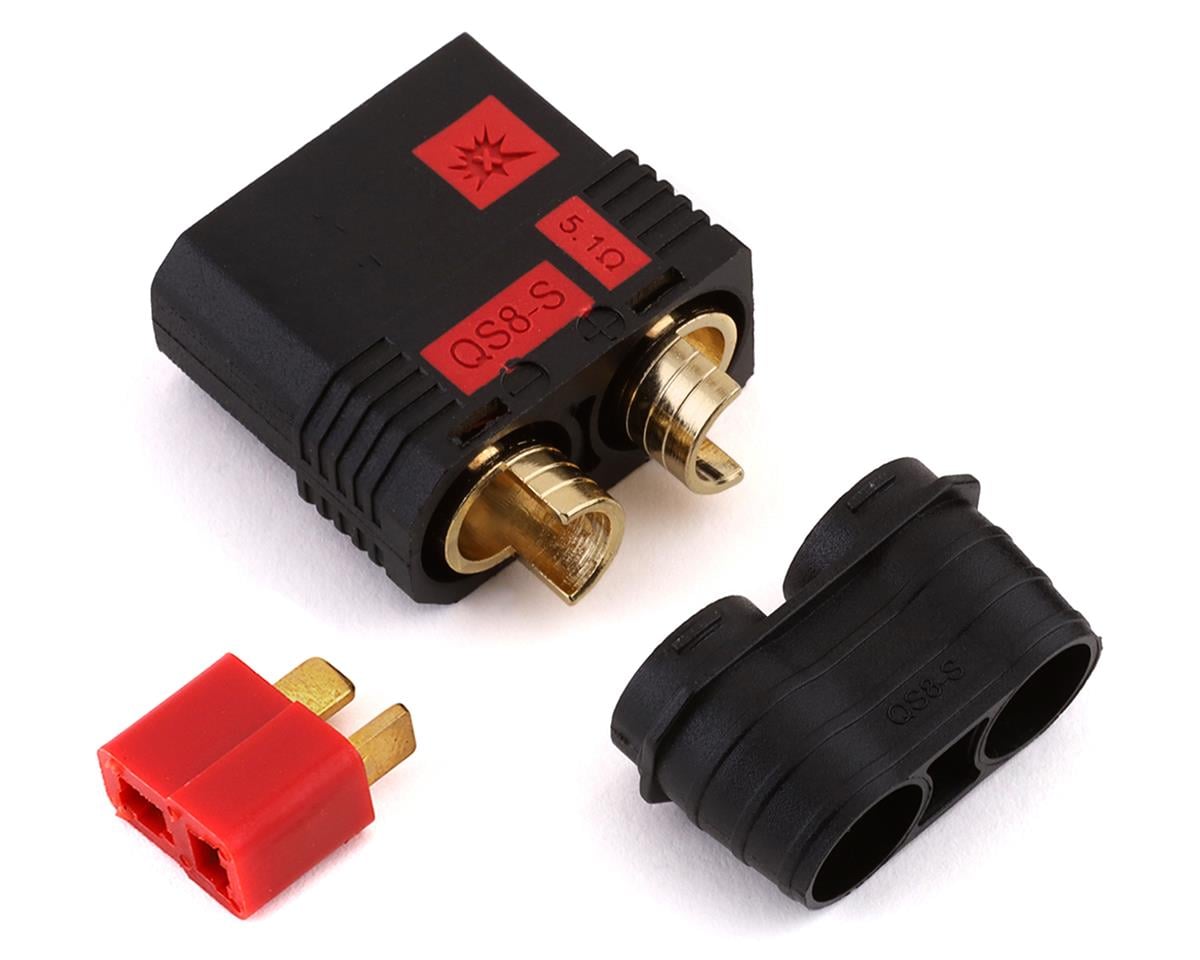

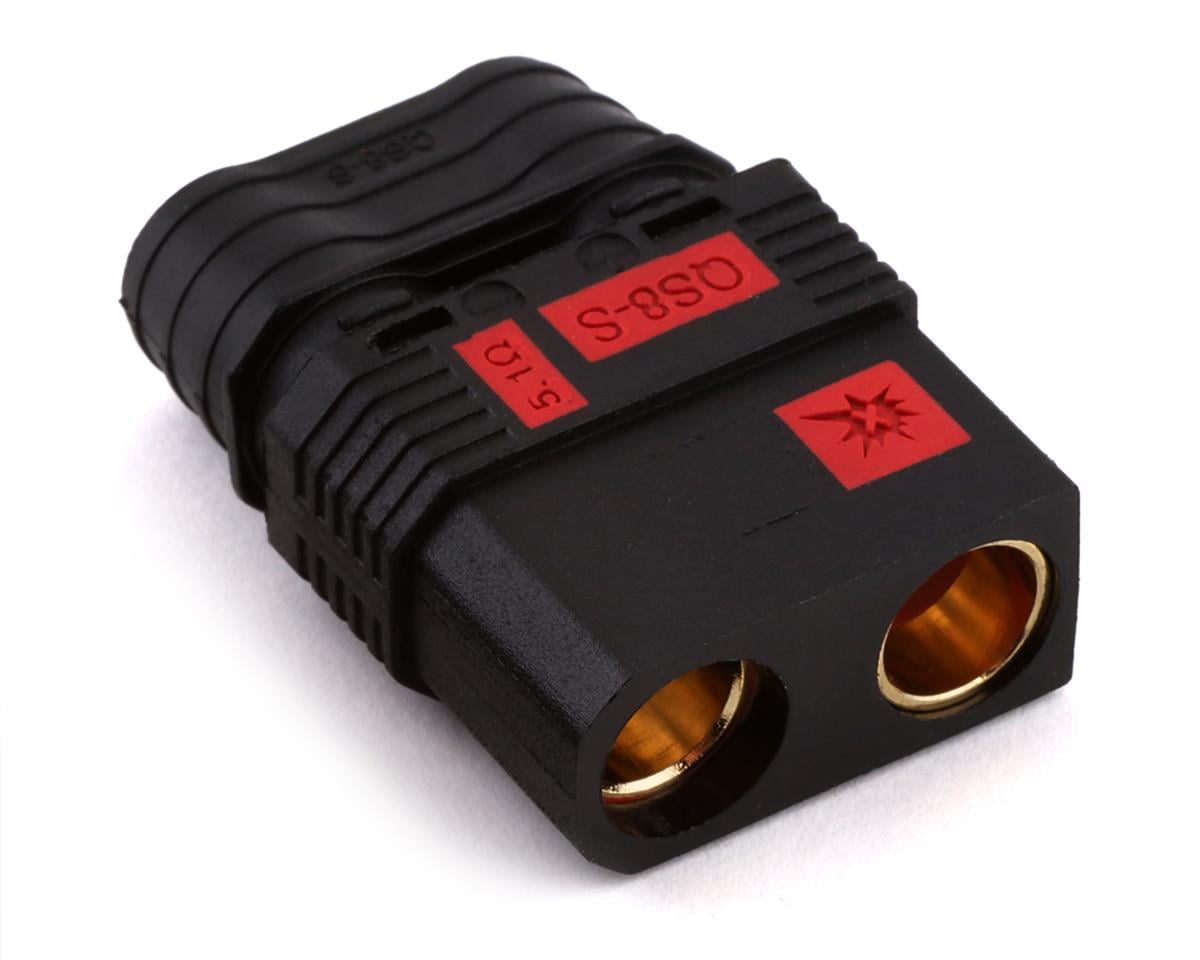

ProTek RC QS8 Anti-Spark Connector (1 Female)

The ProTek RC QS8 Anti-Spark Connector is a female 8.0mm connector designed for high-voltage applications. Its anti-spark technology helps eliminate the connection pop when plugging in the battery, while the 110A continuous and 300A peak current ratings support demanding applications.

Features

• Anti-spark technology
• 8.0mm gold-plated brass bullet
• Nylon/fiber composite housing
• 110A continuous current rating
• 300A peak current rating
• Wire cap covers the soldered connection

Specifications

• Connector diameter: 8.00mm
• Metal material: Gold-plated brass
• Plastic material: Fiber nylon composite
• Flame-retardant rating: UL94 V2
• Temperature range: 200C max
• Rated voltage: 600V DC
• Max wire gauge: 6awg
• Weight: 20g each
• Length: 37.5mm with end cap
• Width: 28mm

Package Includes

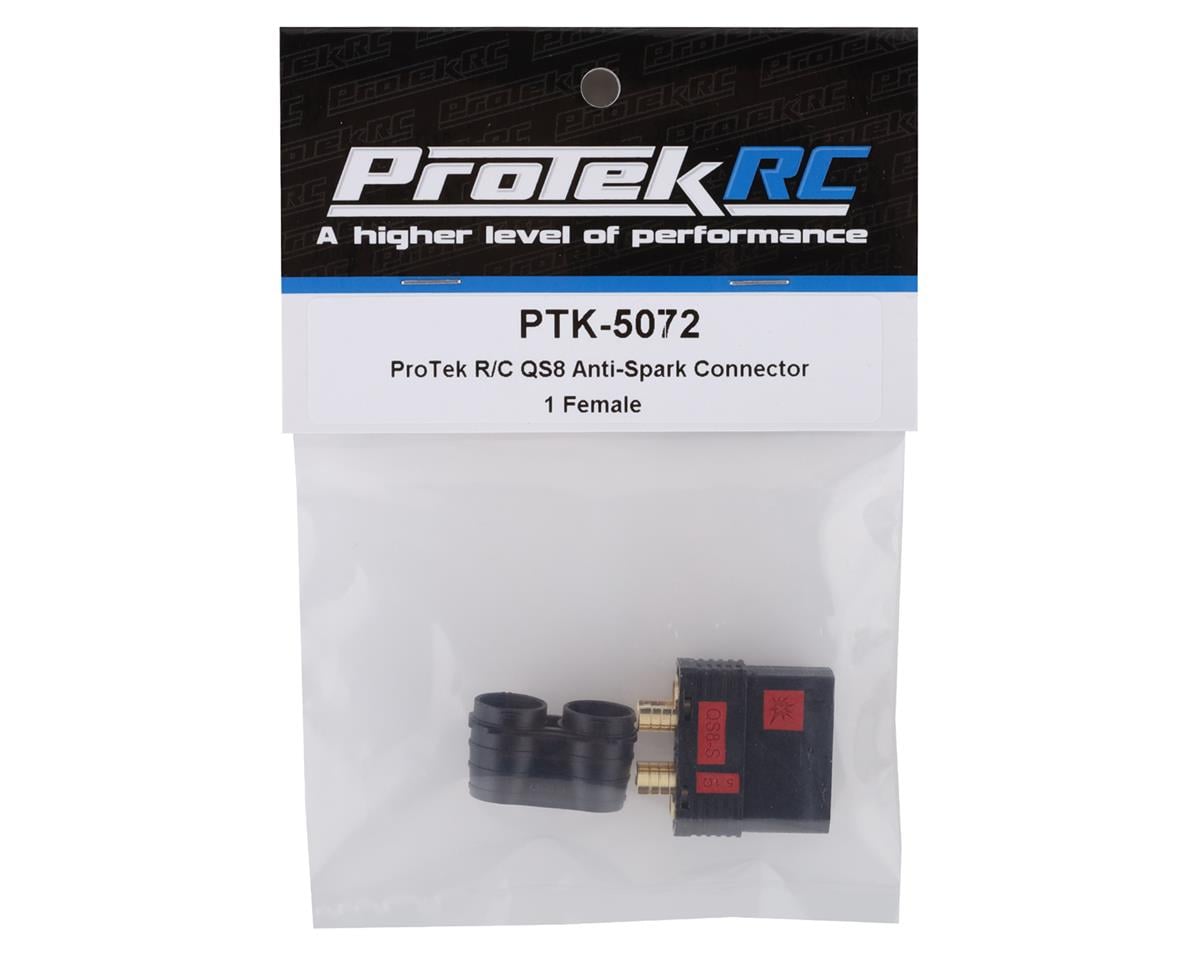

• (1) QS8 female anti-spark connector
• (1) wire cap
