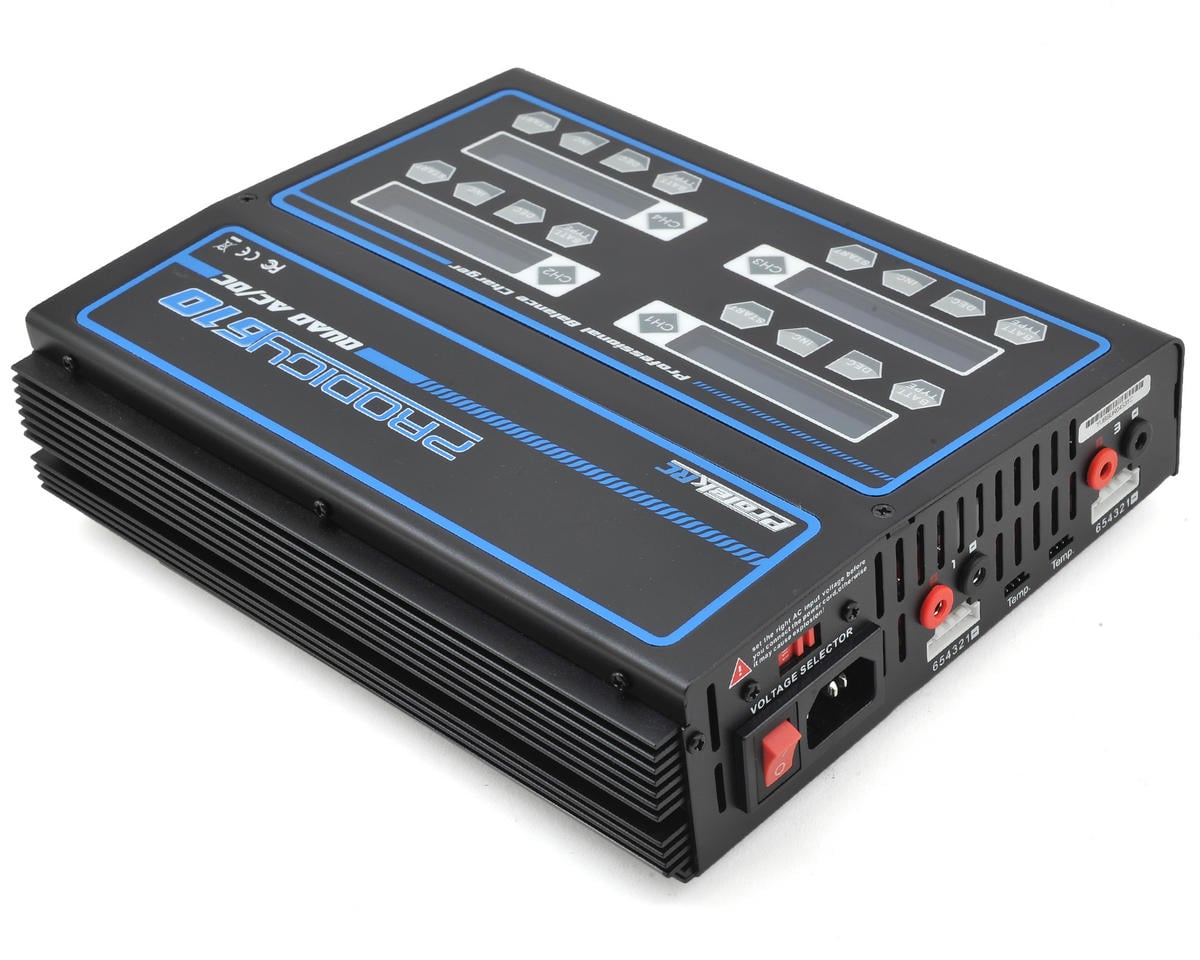

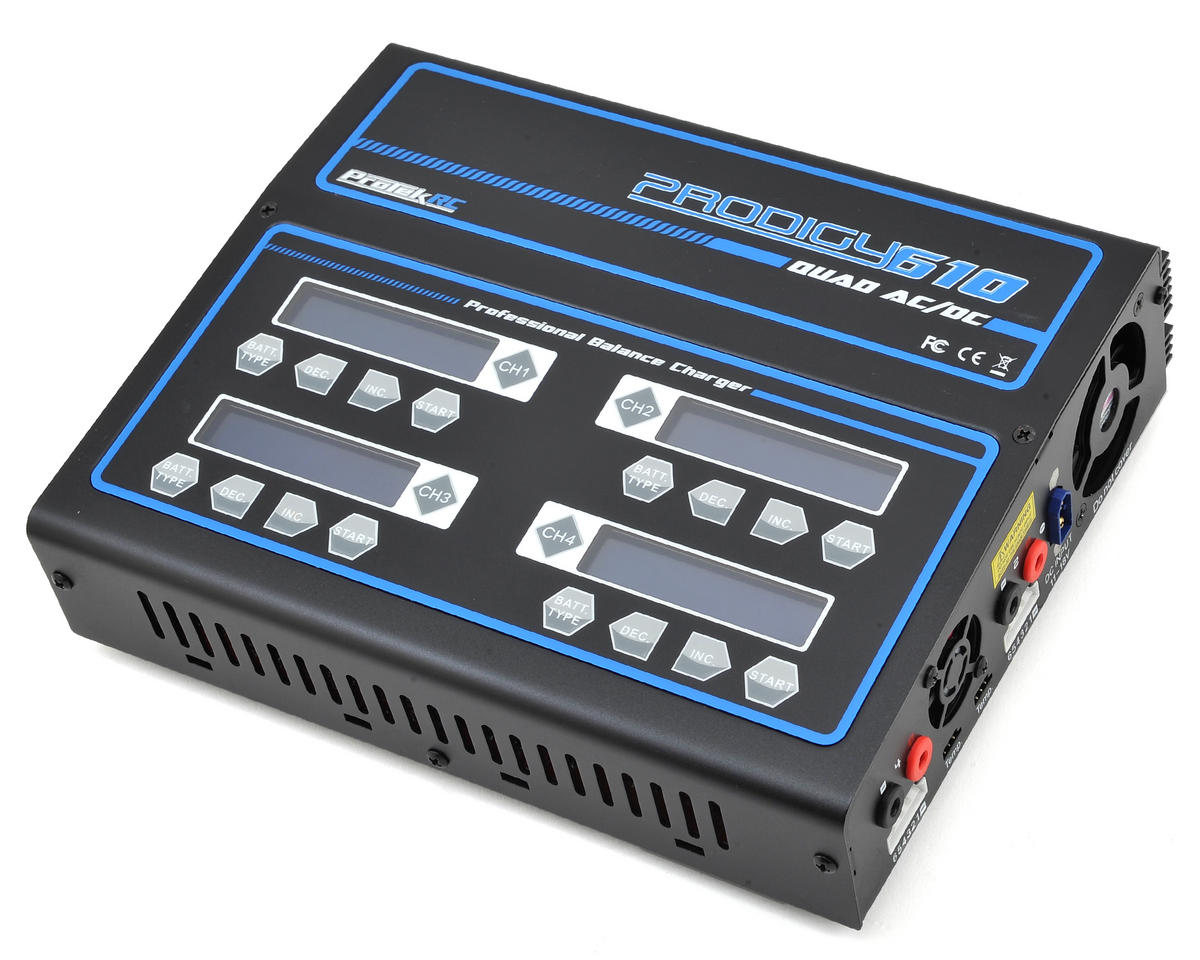

ProTek RC "Prodigy 610 QUAD AC" LiHV/LiPo AC/DC Battery Charger

The ProTek RC "Prodigy 610 QUAD AC" is a quad-channel AC/DC balance charger for LiHV, LiPo, LiFe, NiCd, NiMH and lead-acid batteries. It supports up to 6S lithium or 15-cell nickel packs, with up to 100W of charge power per channel and 10A maximum charge current.

Features

• Quad-channel digital AC/DC balance charger
• 110V or 220V AC input; DC input range of 11.0V - 18.0V
• Charge current range of 0.1 - 10.0A
• Maximum charge power of 100W x4
• Discharge current range of 0.1 - 5.0A and maximum discharge power of 10W x4
• Supports LiHV, LiPo and LiFe batteries from 1 - 6 cells
• Supports NiCd/NiMH batteries from 1 - 15 cells
• Pb battery voltage range of 2 - 20V
• LiHV charging end voltage adjustable up to 4.40V per cell
• Pre-charge function for lithium packs with cells below 3.0V
• Digital Power program delivers 3 - 24V for other DC devices
• 10 charge/discharge profiles
• Maximum balance current of 250mA with a balance tolerance of ±0.01V
• Heavy Duty XT60 DC input connector, metal case and back-light screen
• Multiple safety functions

Specifications

• Model: Prodigy 610 QUAD AC
• Weight: 1750g
• Dimensions: 240x220x68mm

Because each channel is limited to 100W, the maximum charge current depends on battery voltage. For example, a 6S LiPo battery at 22.2V can be charged at a maximum of 4.5A based on 100W / 22.2V. The available current gradually reduces as battery voltage increases during the charge cycle.

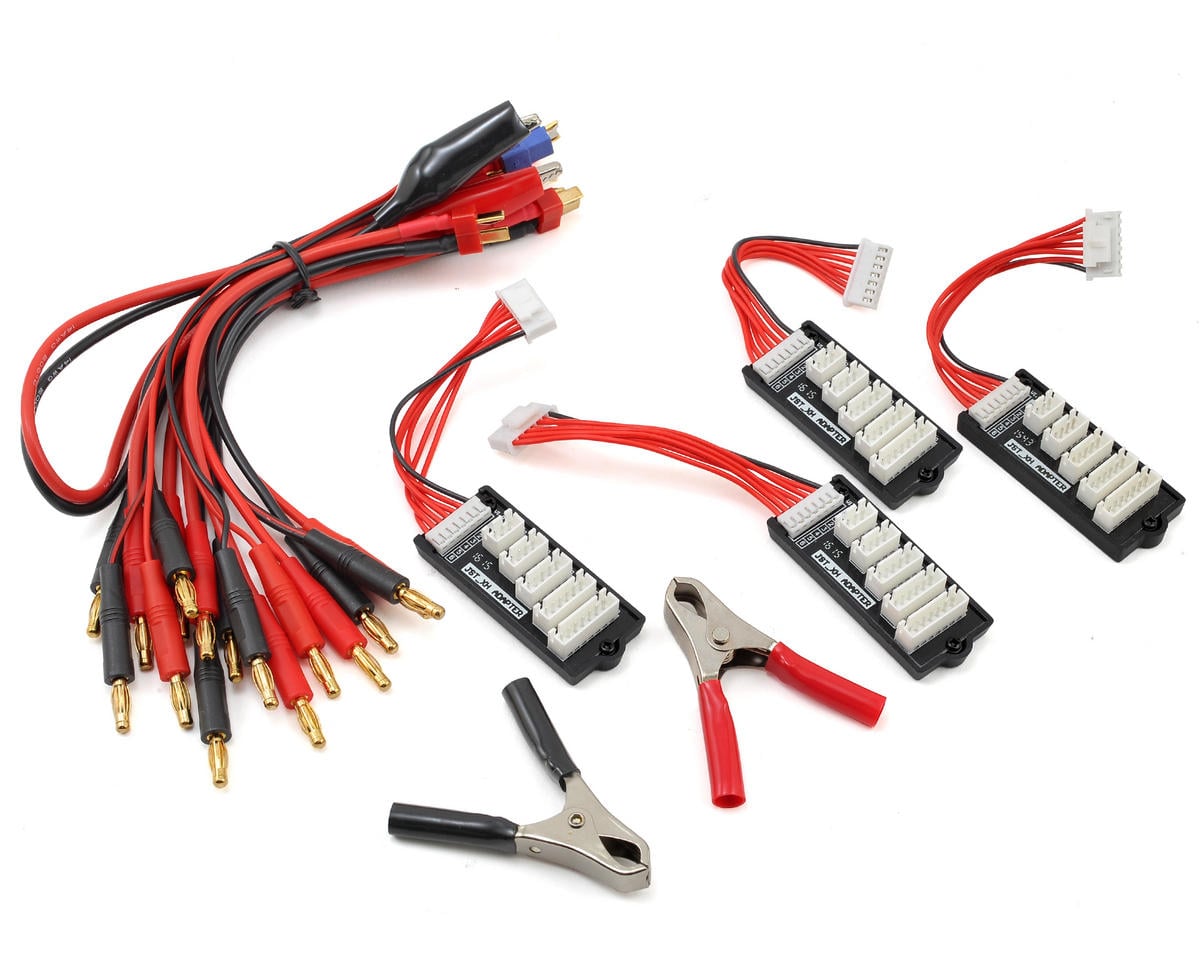

Included

• Prodigy 610 QUAD AC Charger
• DC power input cable with XT60 connector

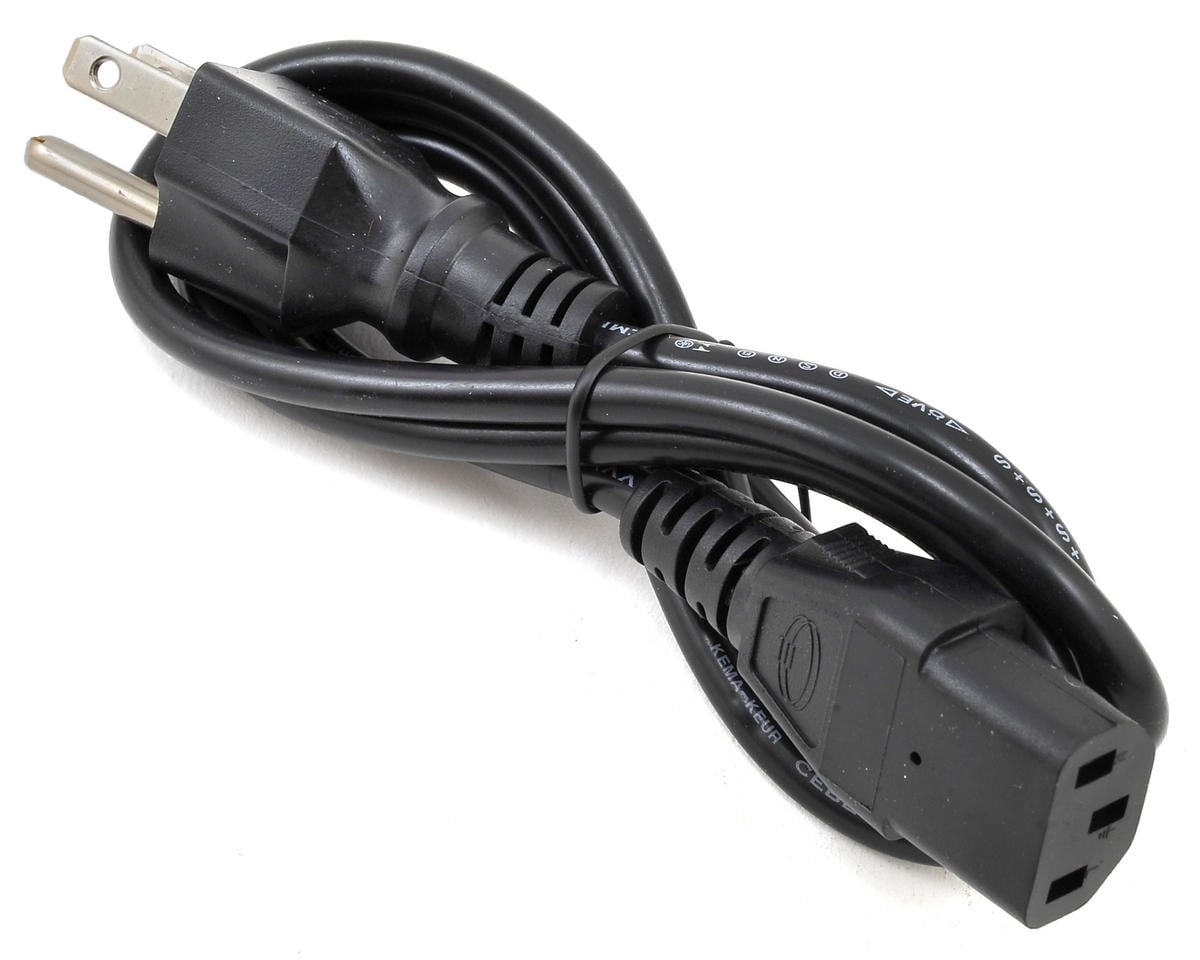

• AC power input cable
• JST connector charge lead
• Futaba connector charge lead
• Four T-Plug charge leads
• Alligator clip charge lead
• Two battery clamps
• Four XH-type LiPo balance boards

The included power cord is compatible with Type B 110V outlets. Type E/F (PTK-5316), Type G (PTK-5317) and Type I (PTK-5318) power cords are available separately. This charger is not recommended for Traxxas batteries with ID connectors or Spektrum Smart batteries with IC connectors. Always balance charge batteries, use a LiPo charging bag, follow the battery and charger instructions, and never leave charging batteries unattended.
