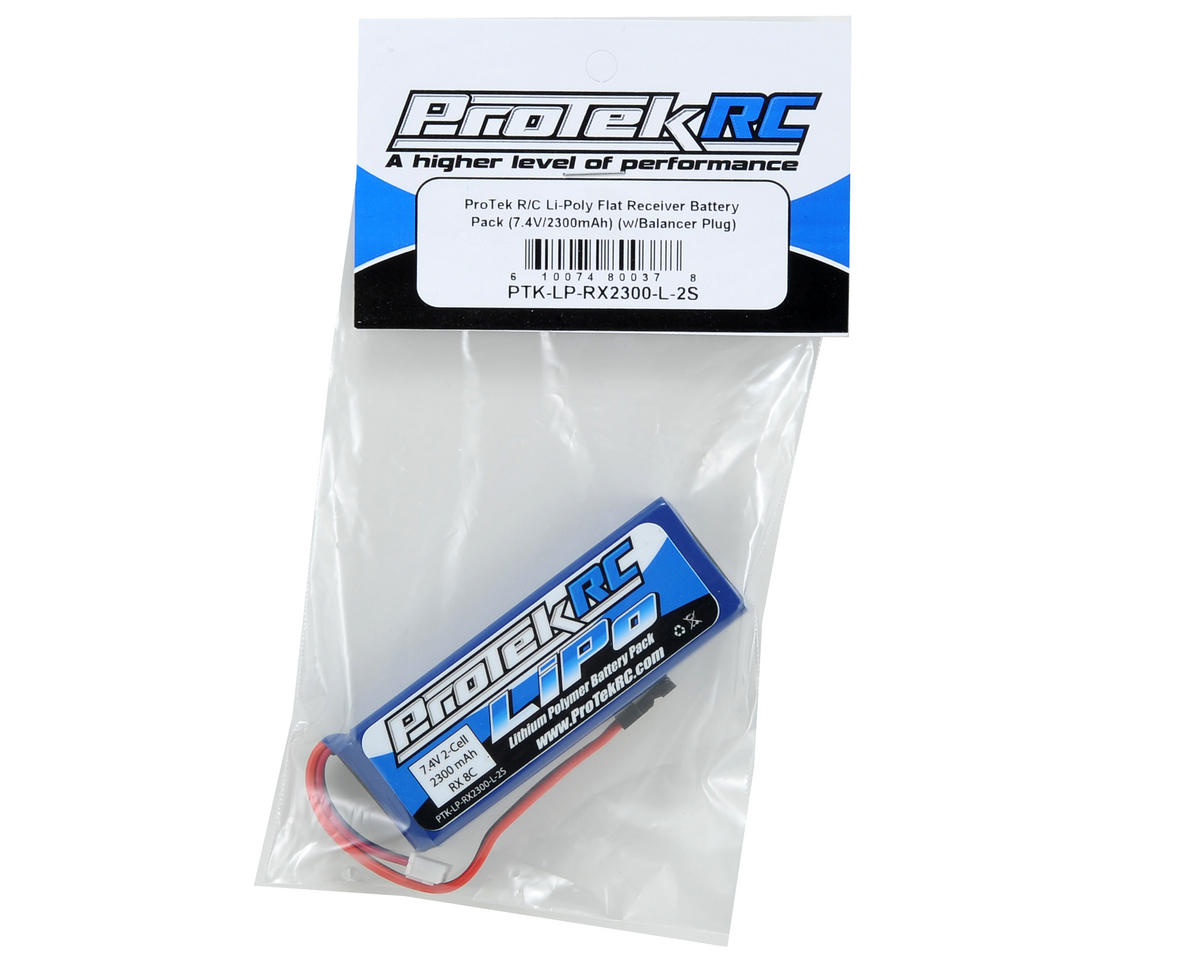

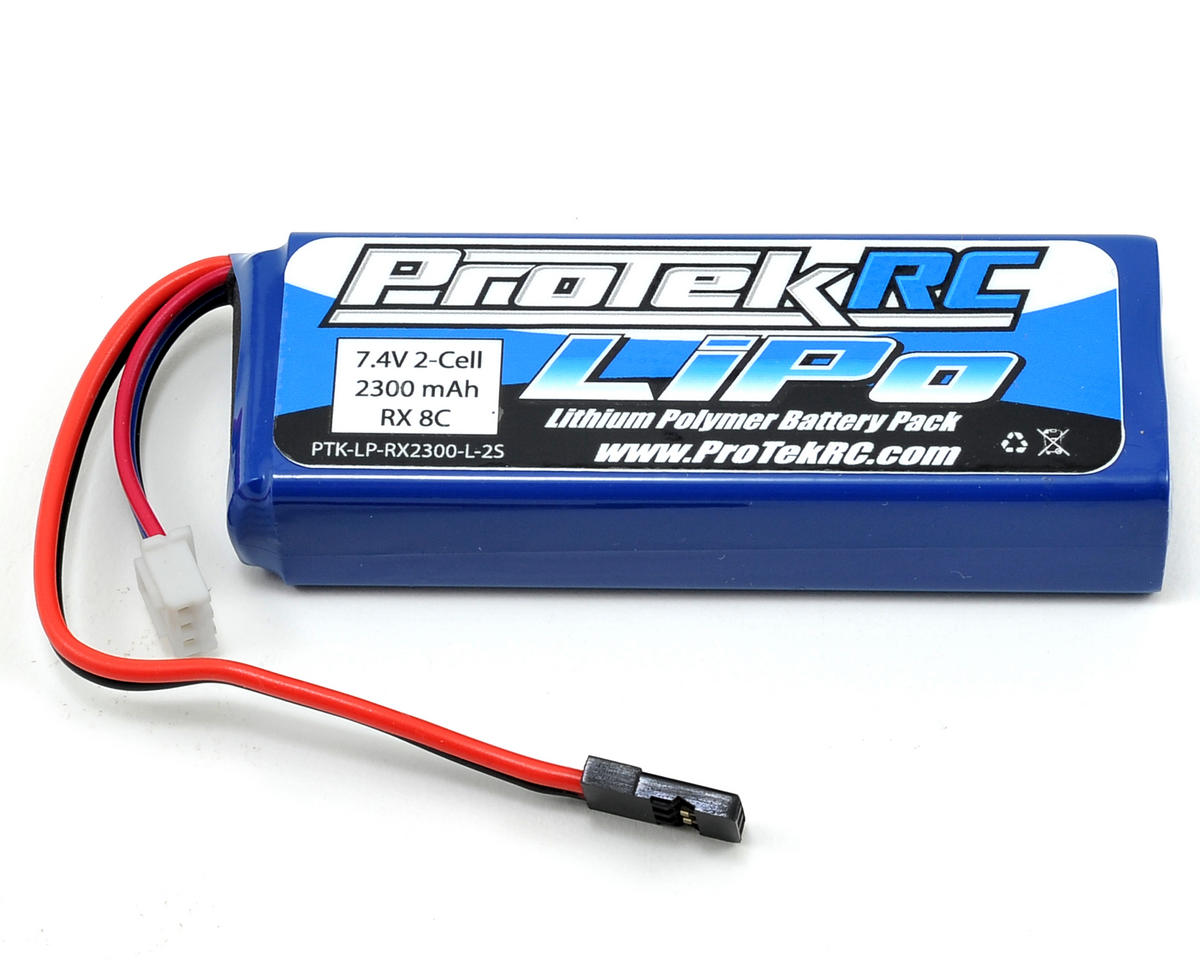

ProTek RC LiPo Receiver Battery Pack (Mugen/AE/8ight-X) (7.4V/2300mAh)

The ProTek RC LiPo Receiver Battery Pack delivers 7.4V and 2300mAh capacity in a 2S1P configuration. Designed for 1/10th and 1/8th scale vehicles that use a flat stick pack receiver battery, it features a protective lexan shell, blue heat shrink and thick 20AWG silicone wire.

Product Details

• Capacity: 2300 mAh
• Nominal voltage: 7.4 Volts
• Cell arrangement: 2S1P
• Weight: 87 grams, including wire and connector
• Dimensions: 85 x 30 x 17mm
• Discharge capability: 8C continuous (18.4A), 16C max (36.8A)
• Connector: JR Style with thick 20AWG Silicone Wire
• Balancer plug: ProTek R/C XH style (Align, E-Flite compatible)

Applications

Recommended for 1/10th and 1/8th scale vehicles, helicopters and airplanes. This pack is also suited to Airtronics M11X and M12 transmitters, which require a 2S Li-Poly battery for operation.

A voltage regulator is required when powering receivers and servos. The pack must be charged with a Li-Poly-specific charger using a balance charge procedure.

Charging and Storage Safety

• Do not leave the battery in your model or unattended while charging.
• Always use a LiPo charging bag.
• Do not over-charge or over-discharge the battery.
• Discharging capacity cannot exceed 80% of the pack's maximum capacity after full charging.
• Charge a brand-new battery fully before use and discharge it only 50% for the first 5 cycles.
• Do not use a battery with too low a voltage; end voltage cannot be lower than 3.2v per cell.
• Do not expose the battery to sunshine or store or charge it above 35°C or in a closed car.
• If the battery becomes hot, allow it to cool completely, wait about 20 minutes, and inspect it before recharging.
