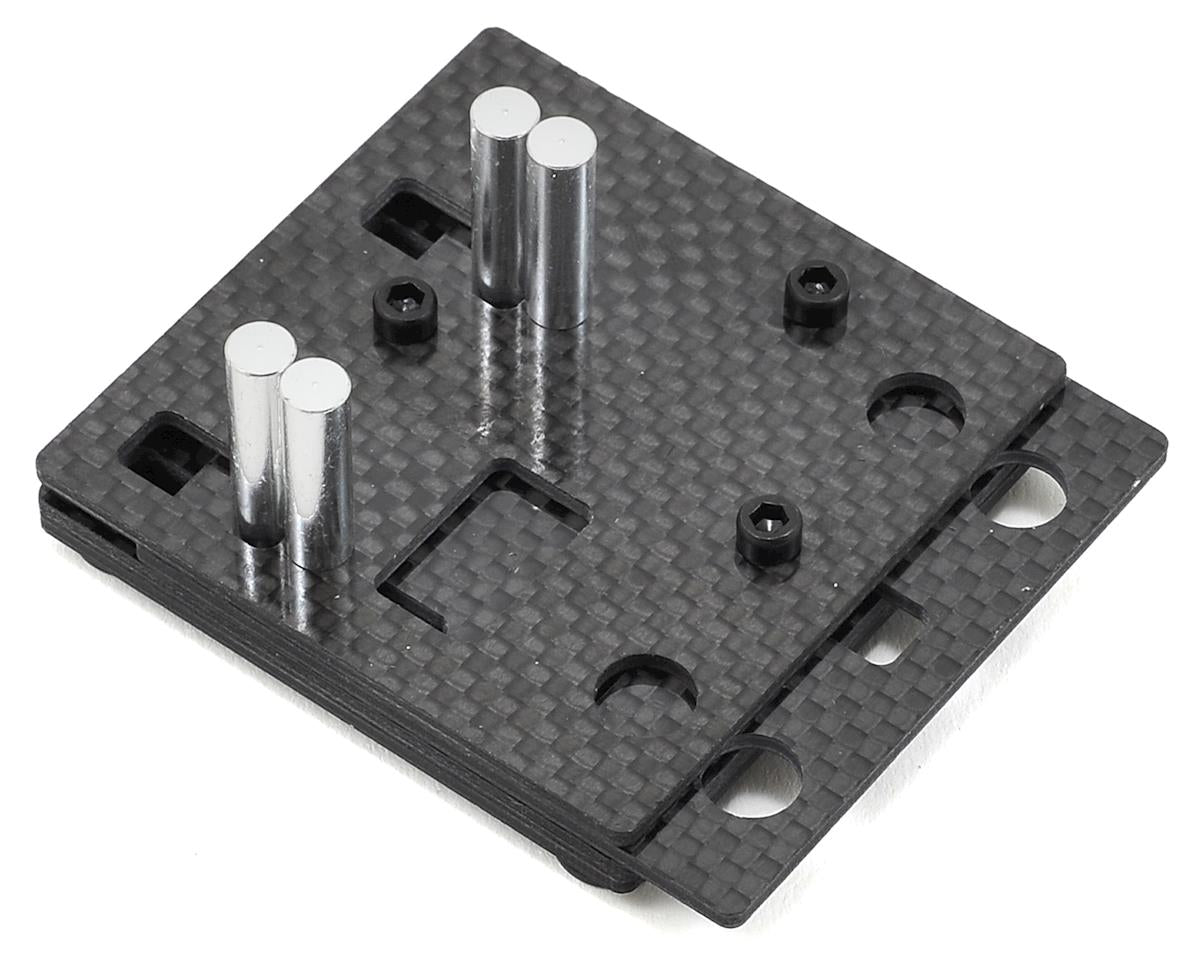

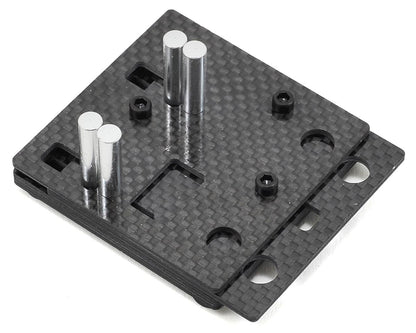

ProTek RC Carbon Fiber Soldering Jig

The ProTek RC Carbon Fiber Soldering Jig holds wires, Deans/T-Style, XT60 and bullet connectors in place for soldering. Its spring-loaded sliding movement opens for insertion, then applies clamping force when released.

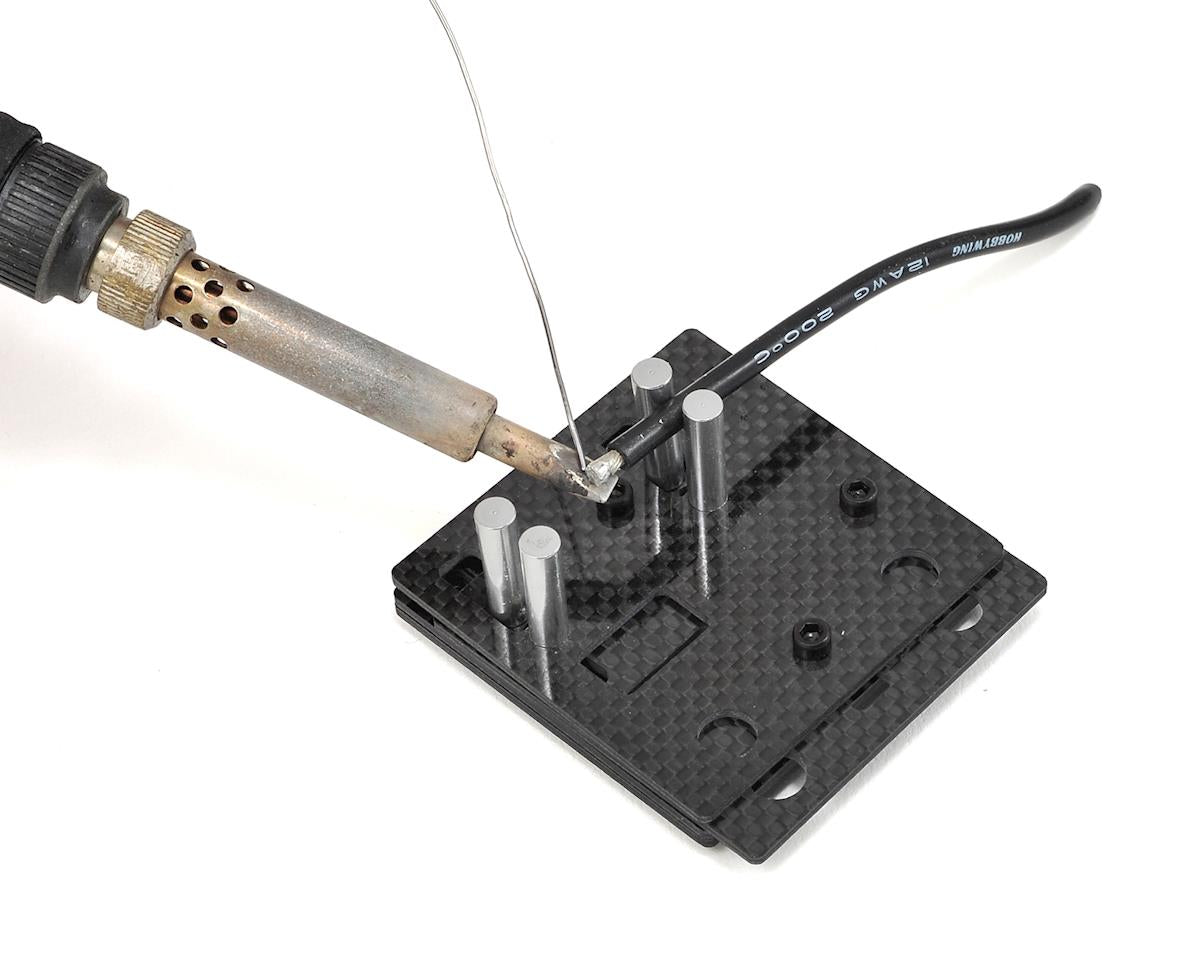

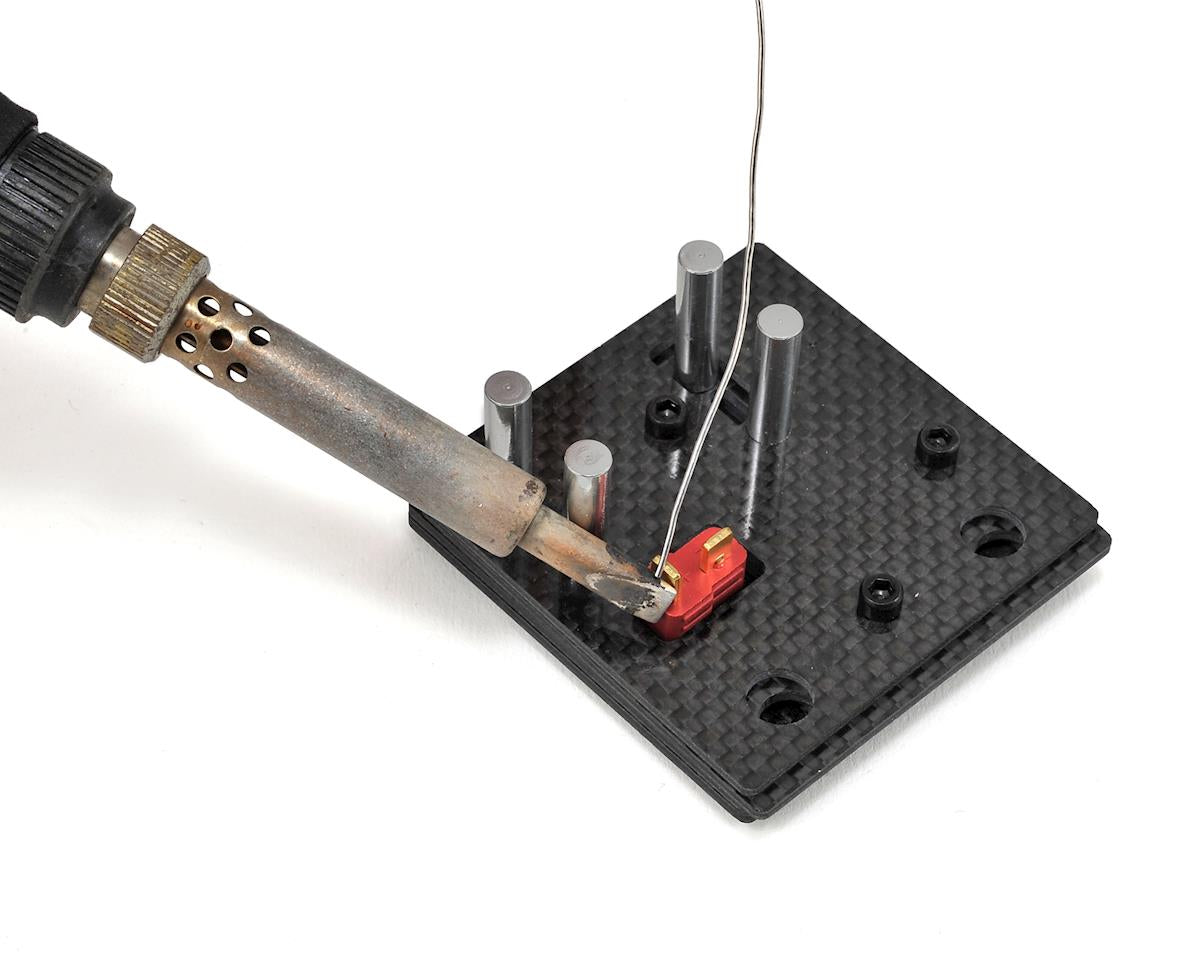

A rectangular 17x10mm slot accommodates Deans/T-Style and XT60 sized connectors, while two 8mm holes hold bullet connectors. The vertical posts open up to 10mm for soldering or tinning wires. Four rubber feet help keep the jig in position during use.

Specifications

• Material: Carbon Fiber
• Weight: 55g
• Dimensions: 70x60x30mm

Warning

Carbon Fiber conducts electricity. Never insert two bullet connectors from a battery into the 8mm bullet holes at the same time.
