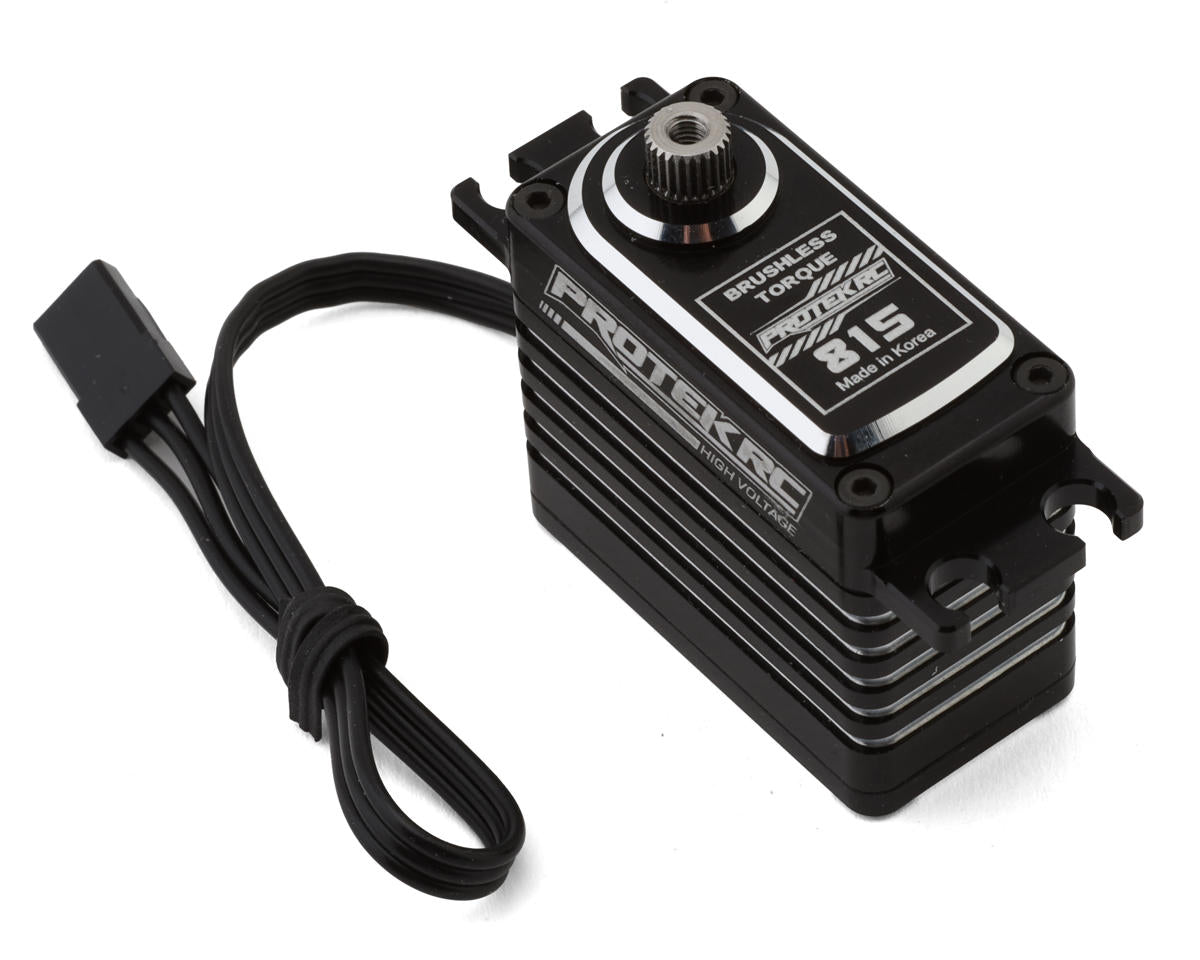

ProTek RC 815 Mid Profile High Torque Brushless Servo (High Volt / Metal Case)

The ProTek RC 815 Mid Profile High Torque Brushless Servo combines brushless power, high-voltage circuitry, steel gears, and an aluminum black anodized heat sink case in a compact design for 1:10 scale off-road racing platforms. Its mid-profile format supports chassis component placement and weight distribution, while the 25T output shaft and dual stepped offset spline provide a precise installation.

Features

• Brushless motor
• High voltage circuitry
• Full steel gears with Lifetime Gear Warranty
• Full aluminum black anodized heat sink case
• Dual stepped offset spline
• Ideal for 1/10 off-road racing platforms

Specifications

• Application: 1:10 Scale
• Operating Voltage: 6.0V - 8.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 7.4V: 0.055/60° sec
• Operating Speed @ 8.4V: 0.05/60° sec
• Dynamic Torque @ 7.4V: 713oz-in (51.3 kg-cm)
• Dynamic Torque @ 8.4V: 815oz-in (58.7 kg-cm)
• Motor Type: Brushless Digital
• Output Shaft: 25T
• Gears: Steel w/Lifetime Gear Warranty
• Weight: 2.26oz (64g)
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.56x0.79x1.41in (39.5x20x35.75mm)
• Length (Bottom to Mount): 0.96in (24.3mm)

Includes

• Lifetime Gear Warranty
• 815 Mid Profile High Speed Brushless Servo

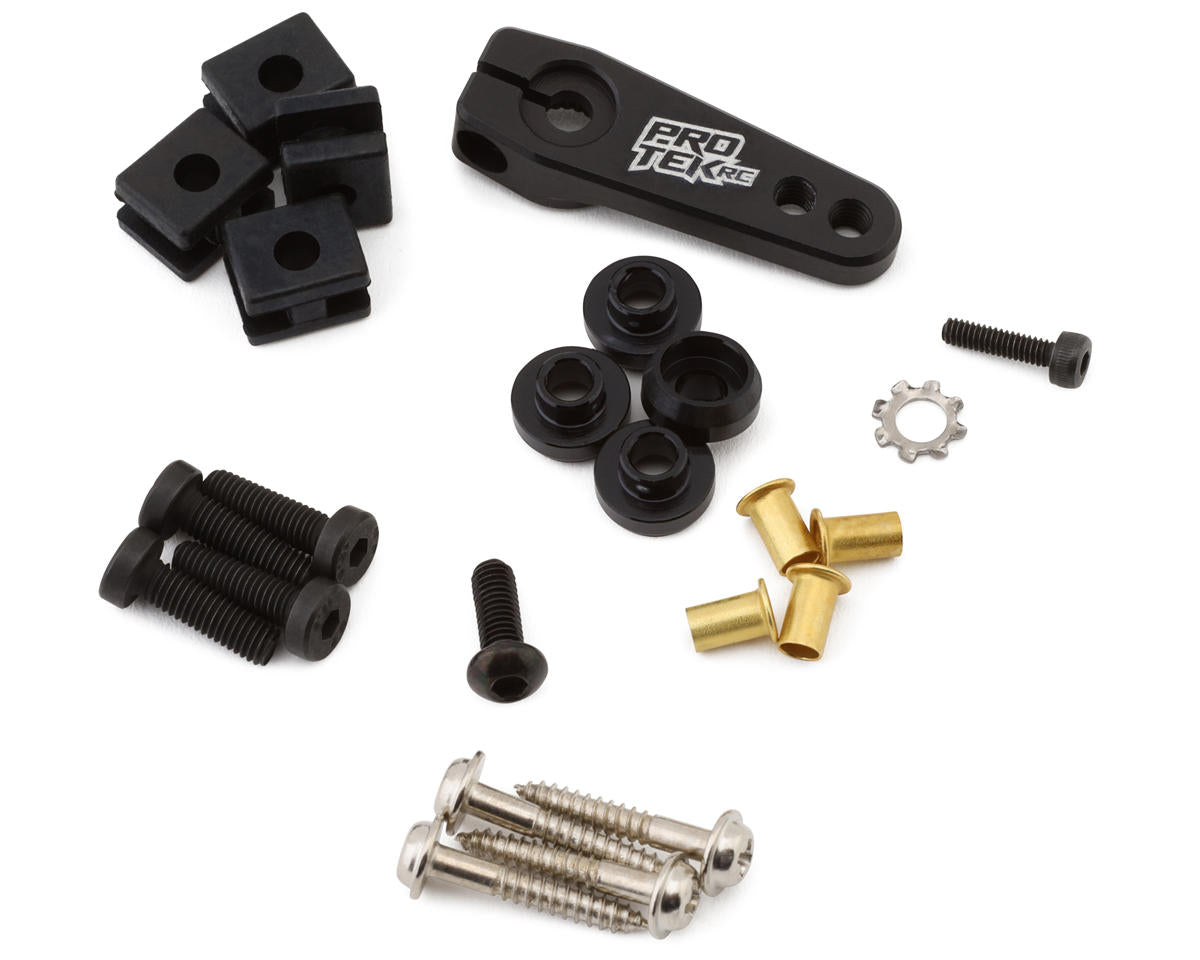

• Aluminum Clamping Servo Horn
• Servo Hardware and Grommets
