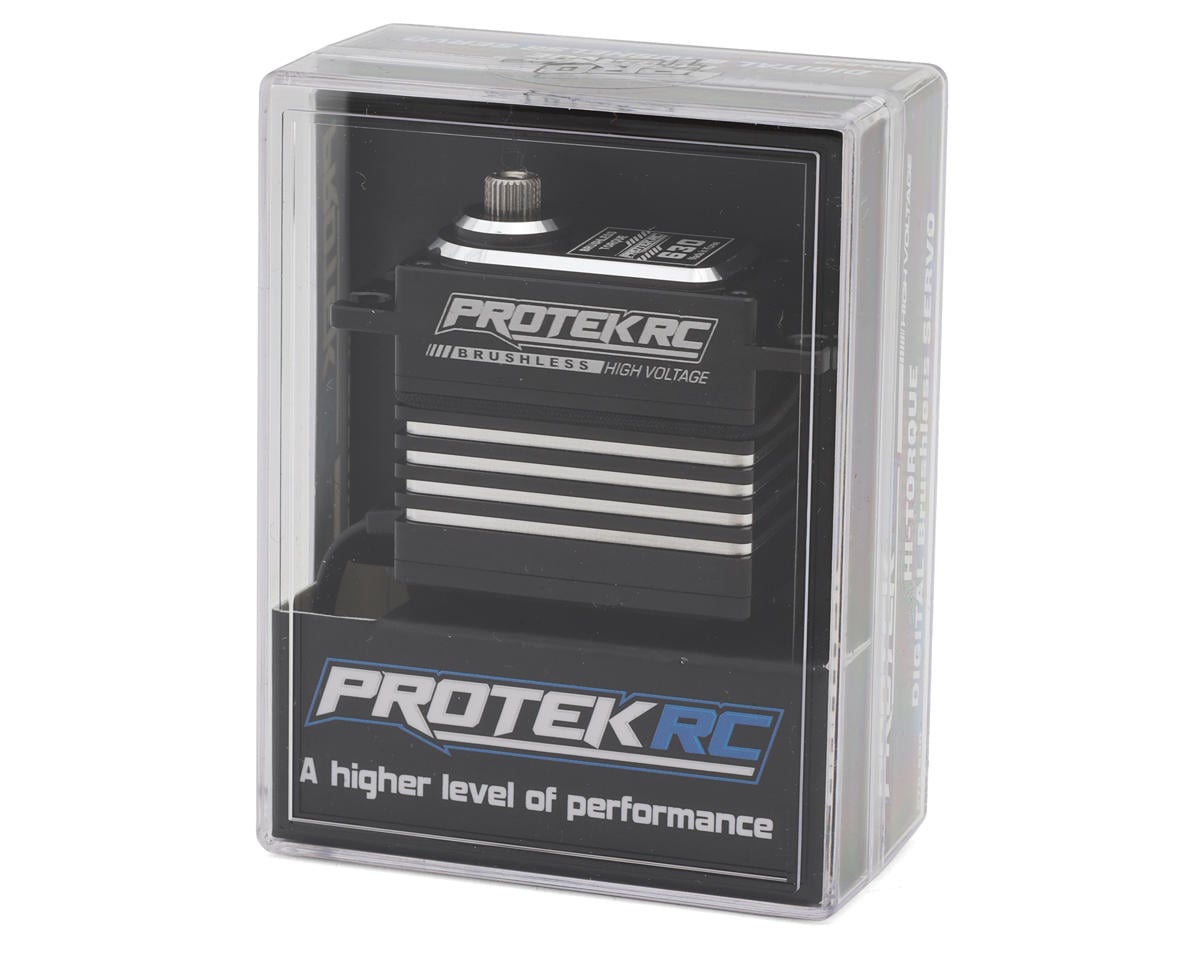

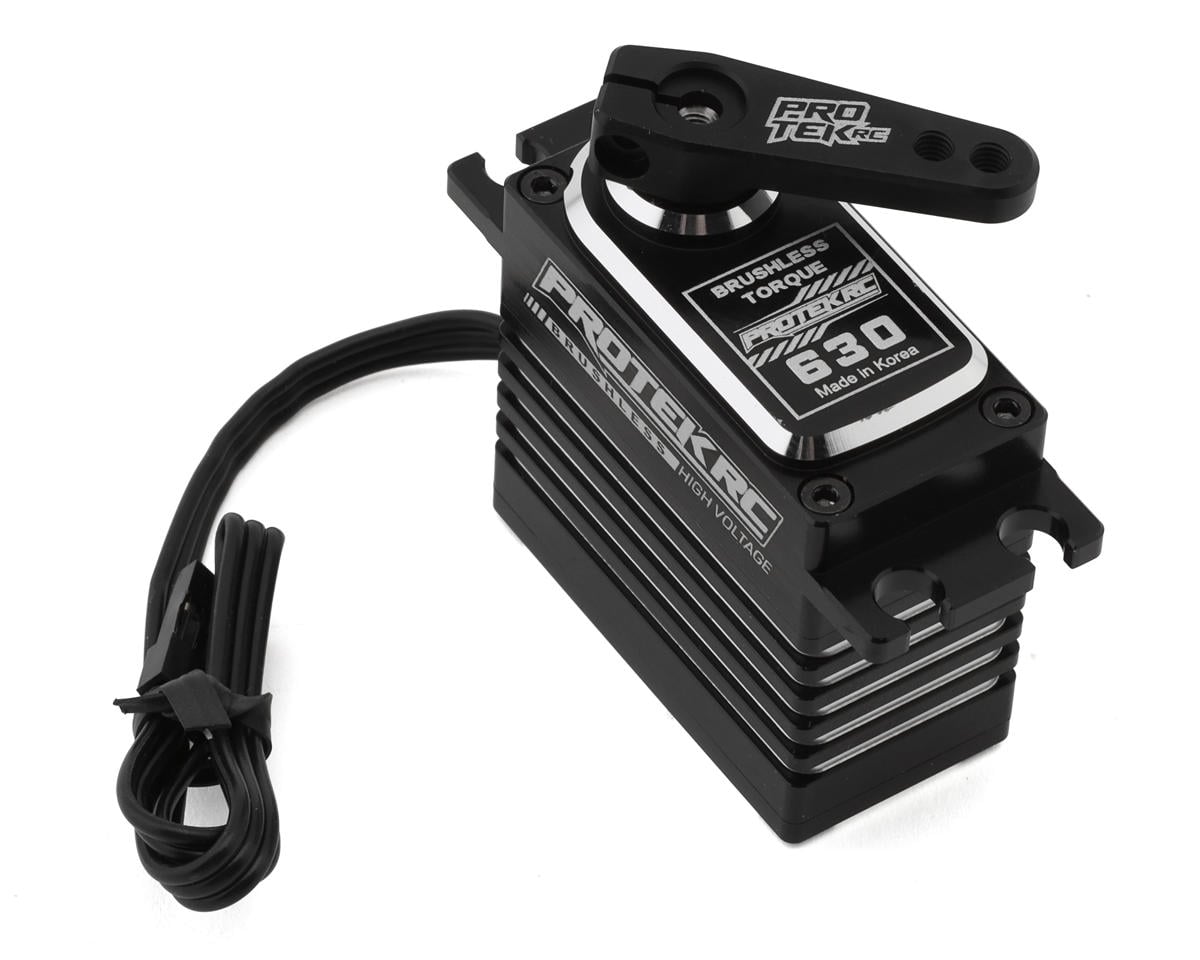

ProTek RC 630 Digital Brushless "High Torque" Metal Gear Servo

The ProTek RC 630 Digital Brushless “High Torque” Metal Gear Servo combines a brushless motor, full metal-gear drivetrain, CNC-machined aluminum case, and integrated heat sinks. It is a direct upgrade for the PTK-155T servo and is compatible with 1/10 and 1/8 scale applications.

Features

• High-torque brushless motor
• Operating speed of 0.11/60° sec at 6.0V
• Dynamic torque of 524oz-in (37.7 kg-cm) at 6.0V
• Full metal-gear drivetrain with Lifetime Gear Warranty
• CNC-machined aluminum case
• Integrated heat sinks for cooling
• Direct upgrade for the PTK-155T servo
• Aluminum clamping servo horn

Specifications

• Application: 1:10/1:8 Scale
• Operating Voltage: 6.0V - 8.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 6.0V: 0.11/60° sec
• Operating Speed @ 7.4V: 0.09/60° sec
• Operating Speed @ 8.4V: 0.08/60° sec
• Dynamic Torque @ 6.0V: 524oz-in (37.7 kg-cm)
• Dynamic Torque @ 7.4V: 578oz-in (41.6 kg-cm)
• Dynamic Torque @ 8.4V: 630oz-in (45.3 kg-cm)
• Motor Type: Brushless Digital
• Output Shaft: 25T
• Gears: Metal w/Lifetime Gear Warranty
• Weight: 2.64oz (74.7g)
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.56x0.79x1.55in (39.5x20x39.3mm)
• Length (Bottom to Mount): 1.02in (25.8mm)

Includes

• (1) Lifetime Gear Warranty
• (1) 630 Digital Brushless “High Torque” Metal Gear Servo
• (1) Aluminum Clamping Servo Horn

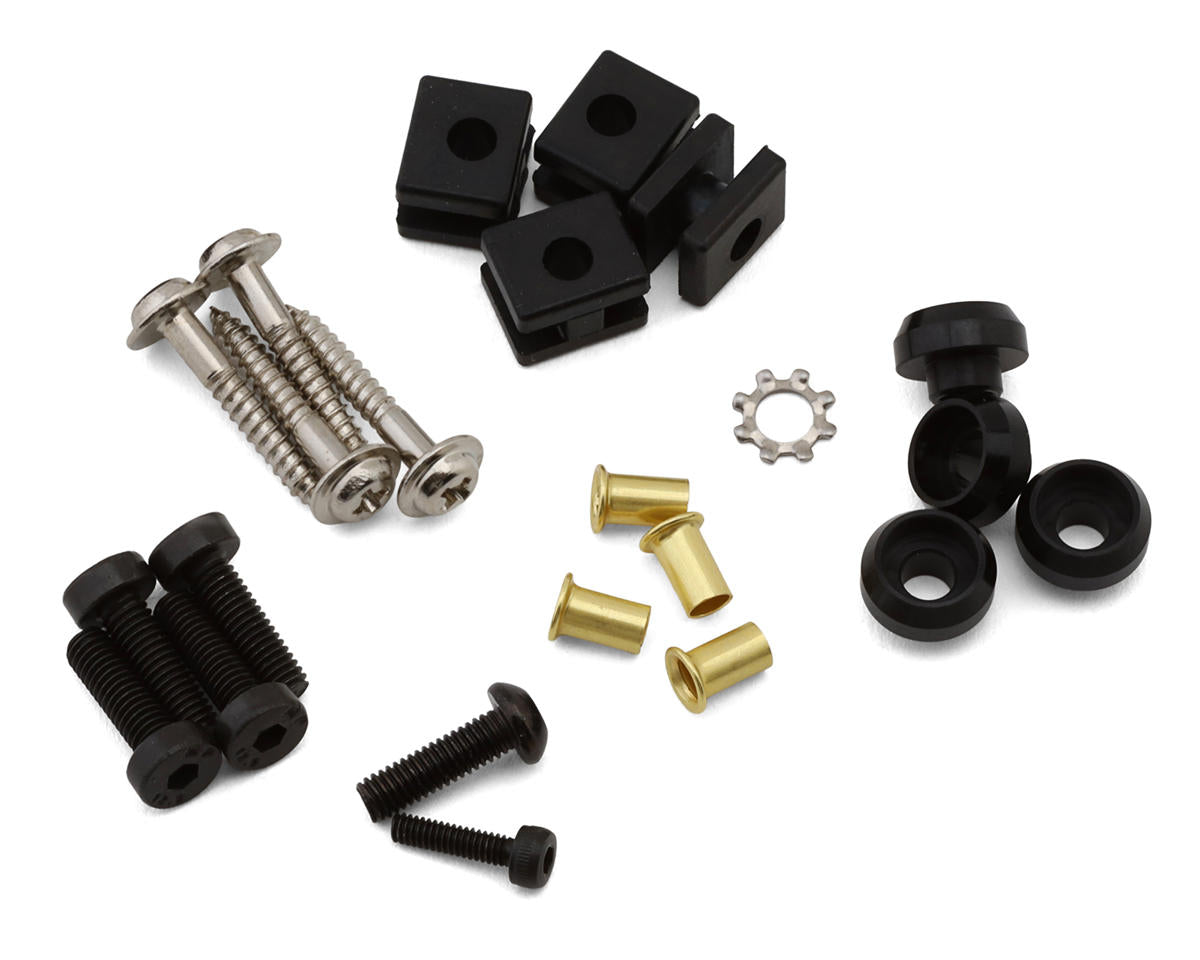

• Servo Hardware and Grommets
