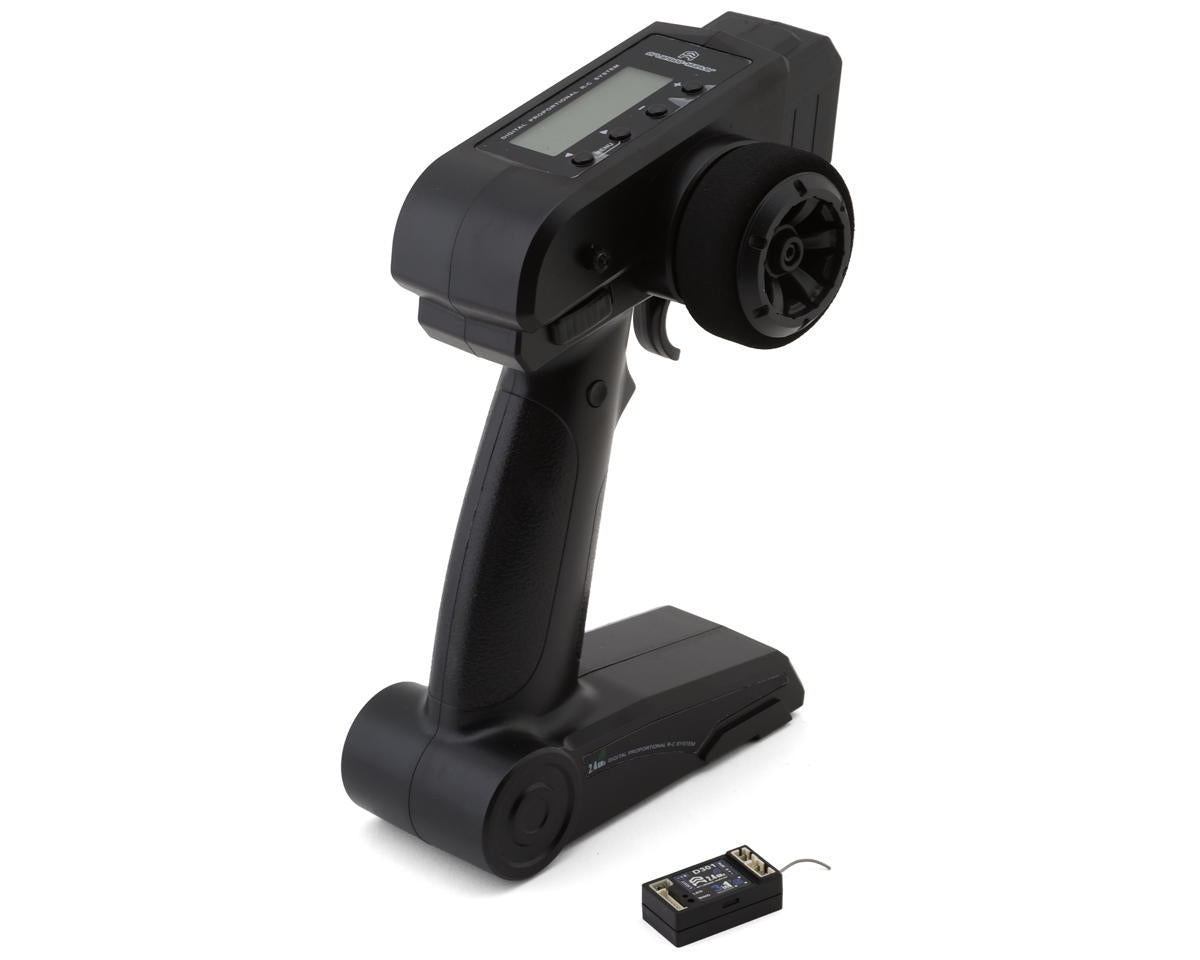

Orlandoo Hunter D4L Radio System w/4 in 1 D401-E ESC/Receiver

The Orlandoo Hunter D4L Radio System combines a transmitter with the D401-E 4-in-1 receiver, built-in ESC, sound simulator and light control for Orlandoo micro size models. Its integrated design helps reduce electronics space under the body while providing radio control for lighting and sound functions.

Features

• 2.4GHz FHSS helps eliminate interference
• Built-in ESC with forward, reverse and brake functions
• Sound simulator provides engine start up, forward, reverse, idle and engine shut down sounds
• Light controller supports headlights, auxiliary lights, double flash lights, turn signals, brake lights and reverse lights
• Radio control of the light system and sound module volume

Specifications

• Transmitter operating voltage: 4.4-8.4V
• Transmitter frequency: 2.4GHz FHSS
• Transmitter output power: <100mW
• Transmitter power supply: 4 AA Batteries
• Screen type: LED
• Receiver module operating voltage: 6V-8.4V (2S LiPo or 6 cell NiMH)
• ESC: Brushed Motor up to 1.8A
• Sound simulator amplifier: up to 4.5W
• BEC output: 3.3V/0.8A

Includes

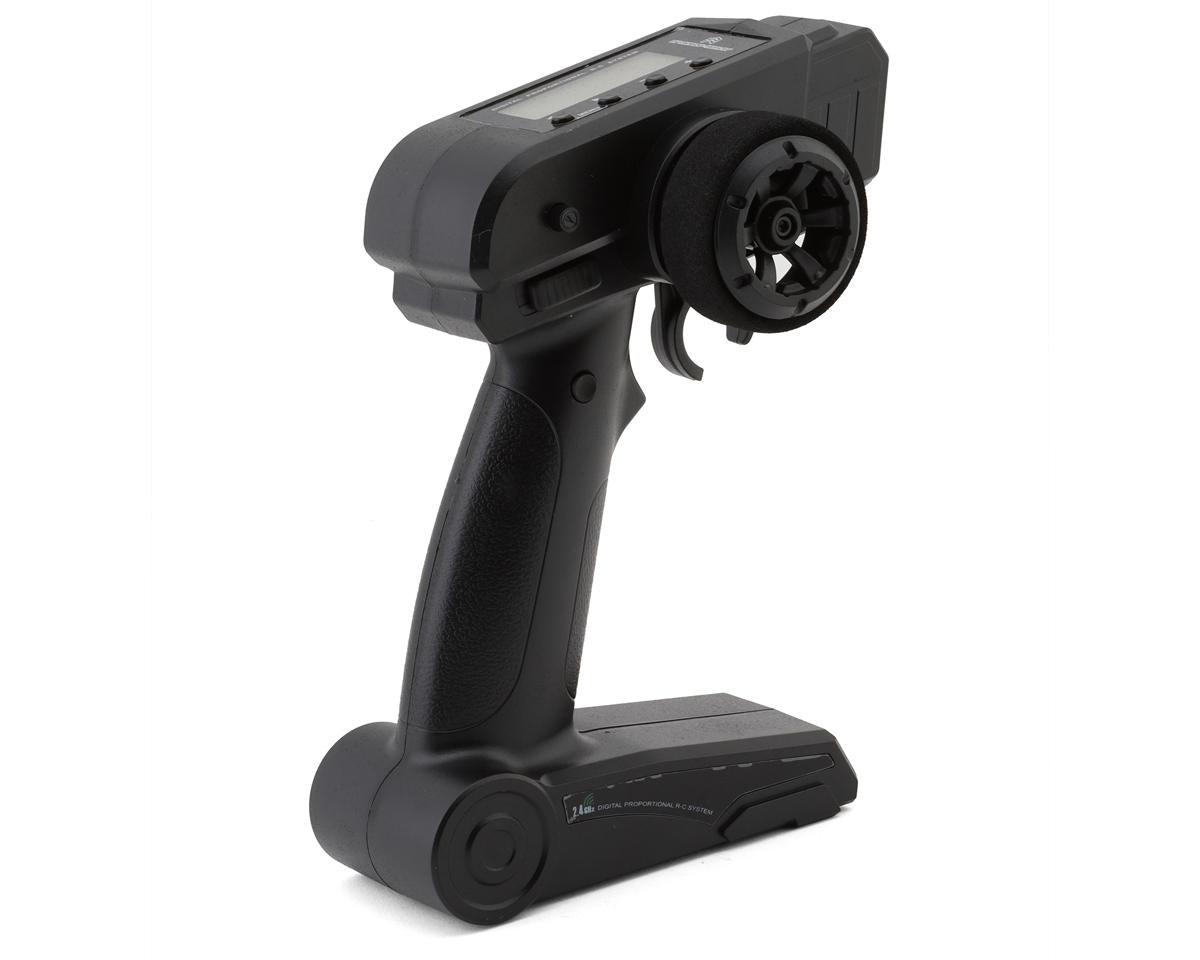

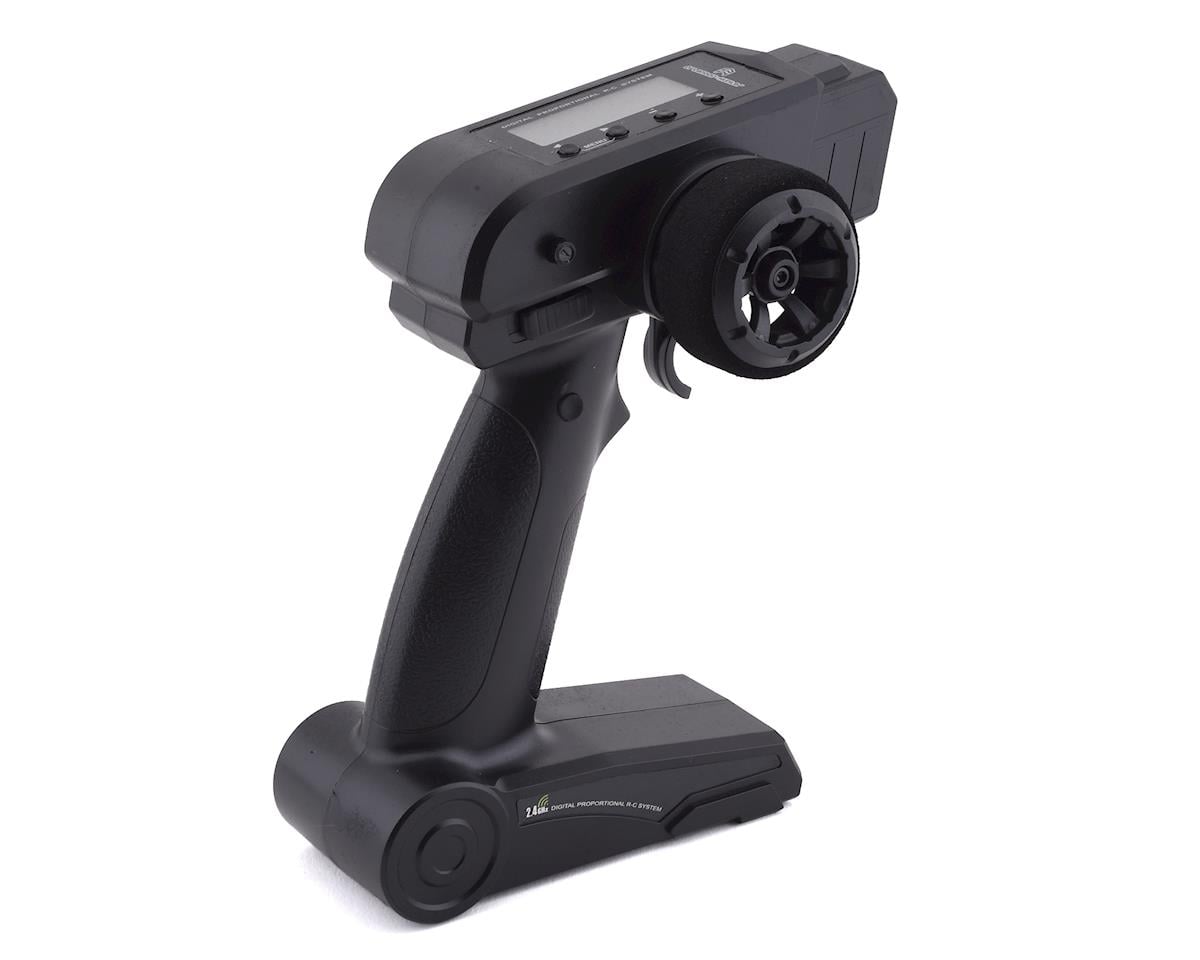

• D4L Transmitter

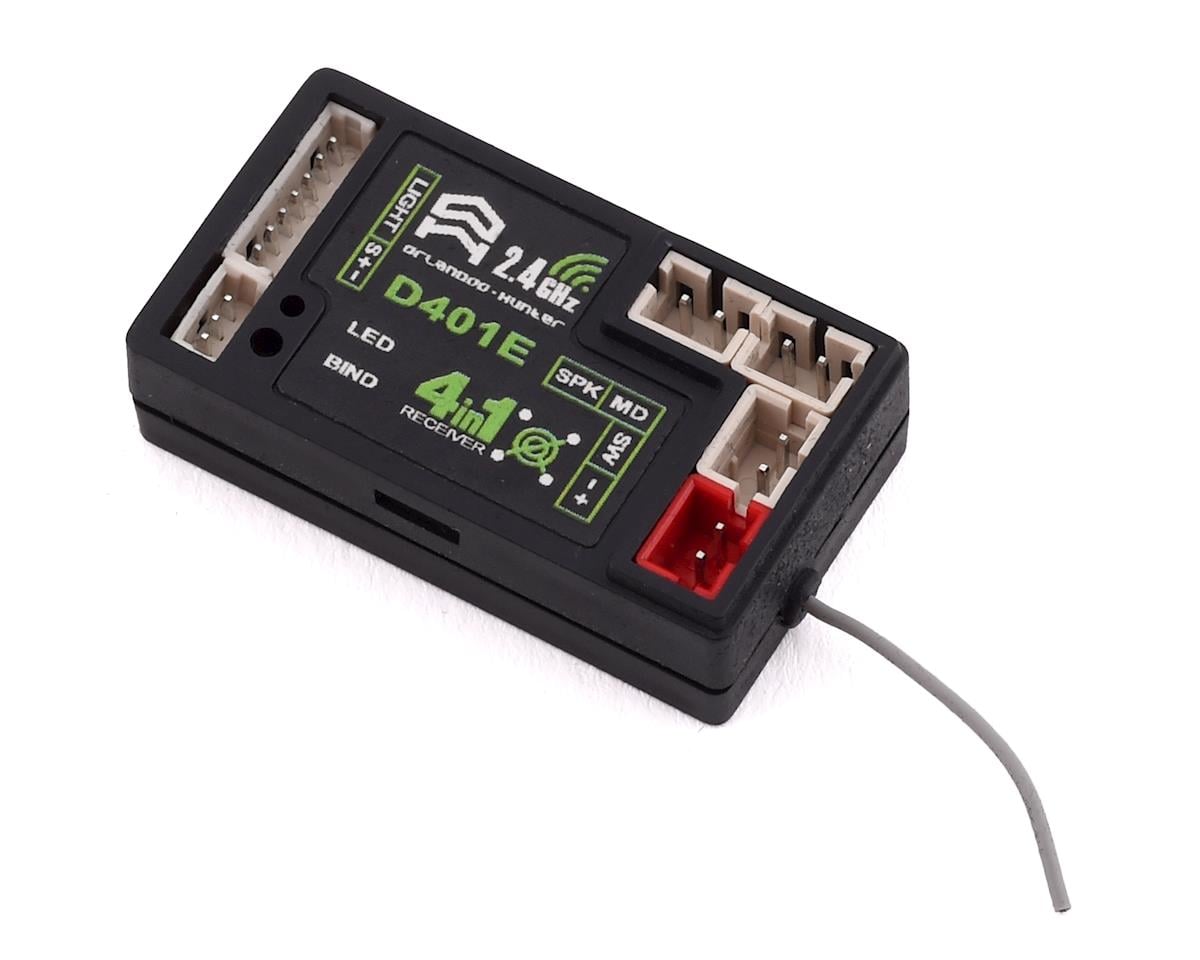

• D401E 4-in-1 Receiver
• Light Expansion PCB
• Flat Cable
• On/Off Switch

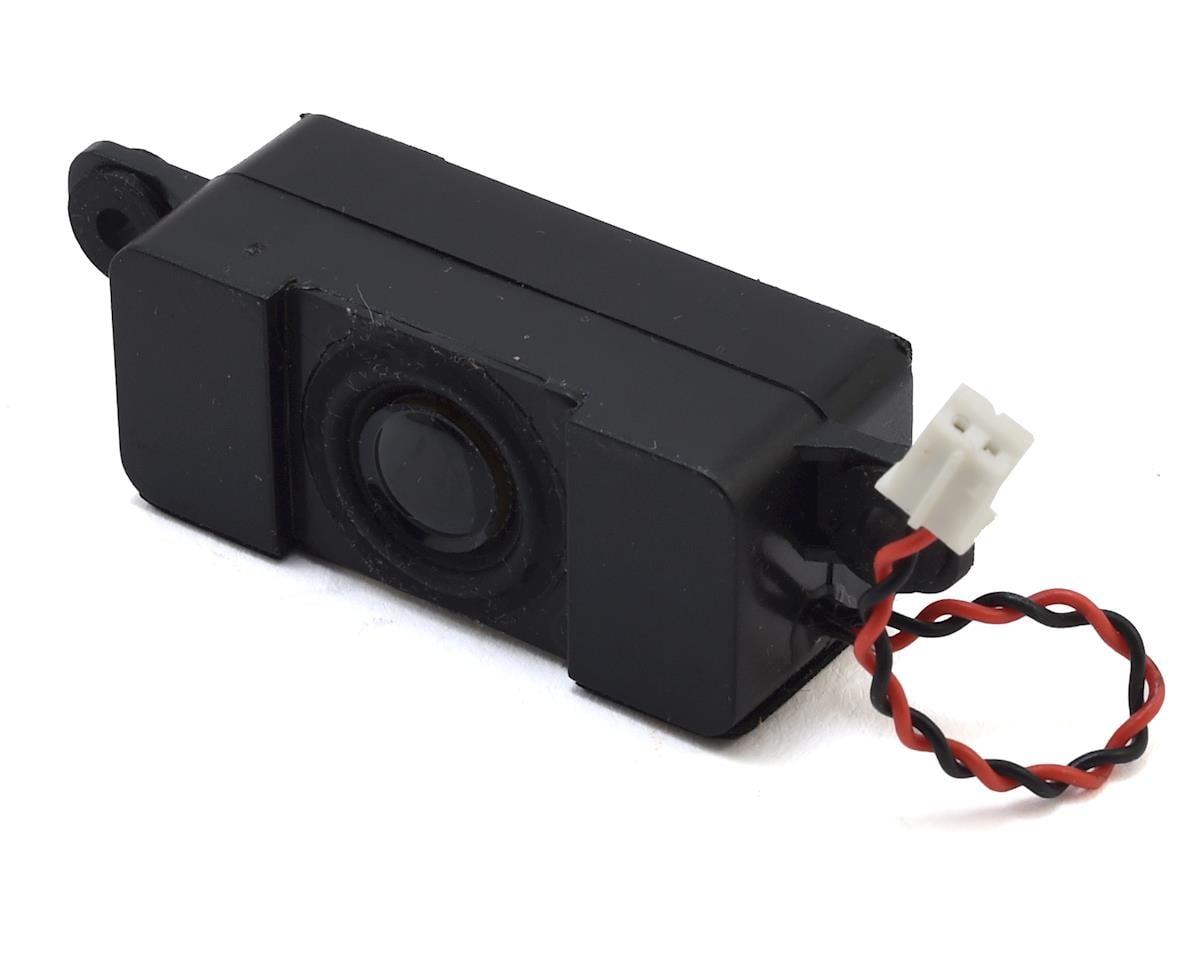

• Speaker

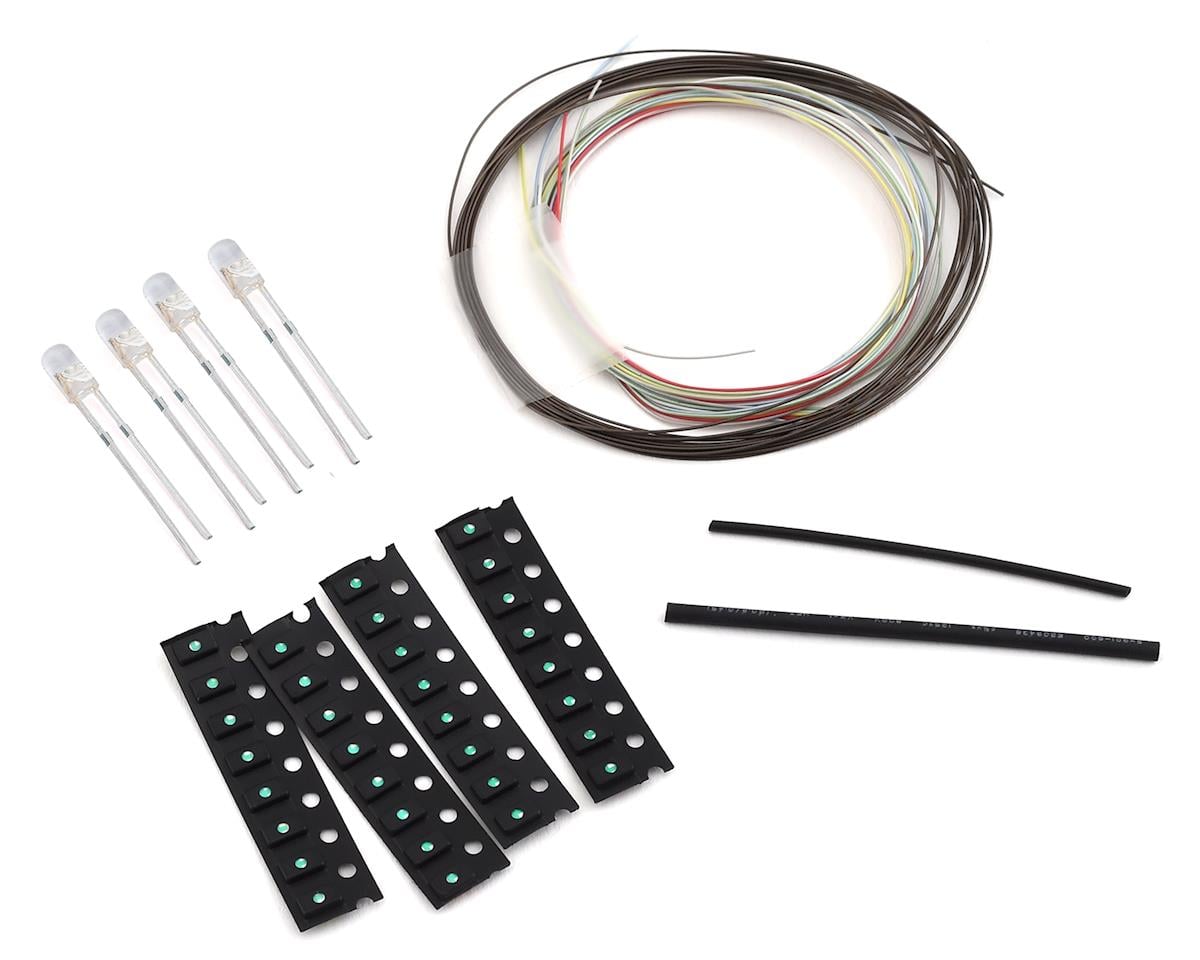

• F4 LED
• SMD Four Color LED
• Seven color teflon wire
• 2 Heat shrink tube
• Transparent Heat shrink tube

Important Notes

• A PH2.0 to female JST adapter is required to connect a JST battery to the receiver.
• The D4L system requires D4L compatible motors.
