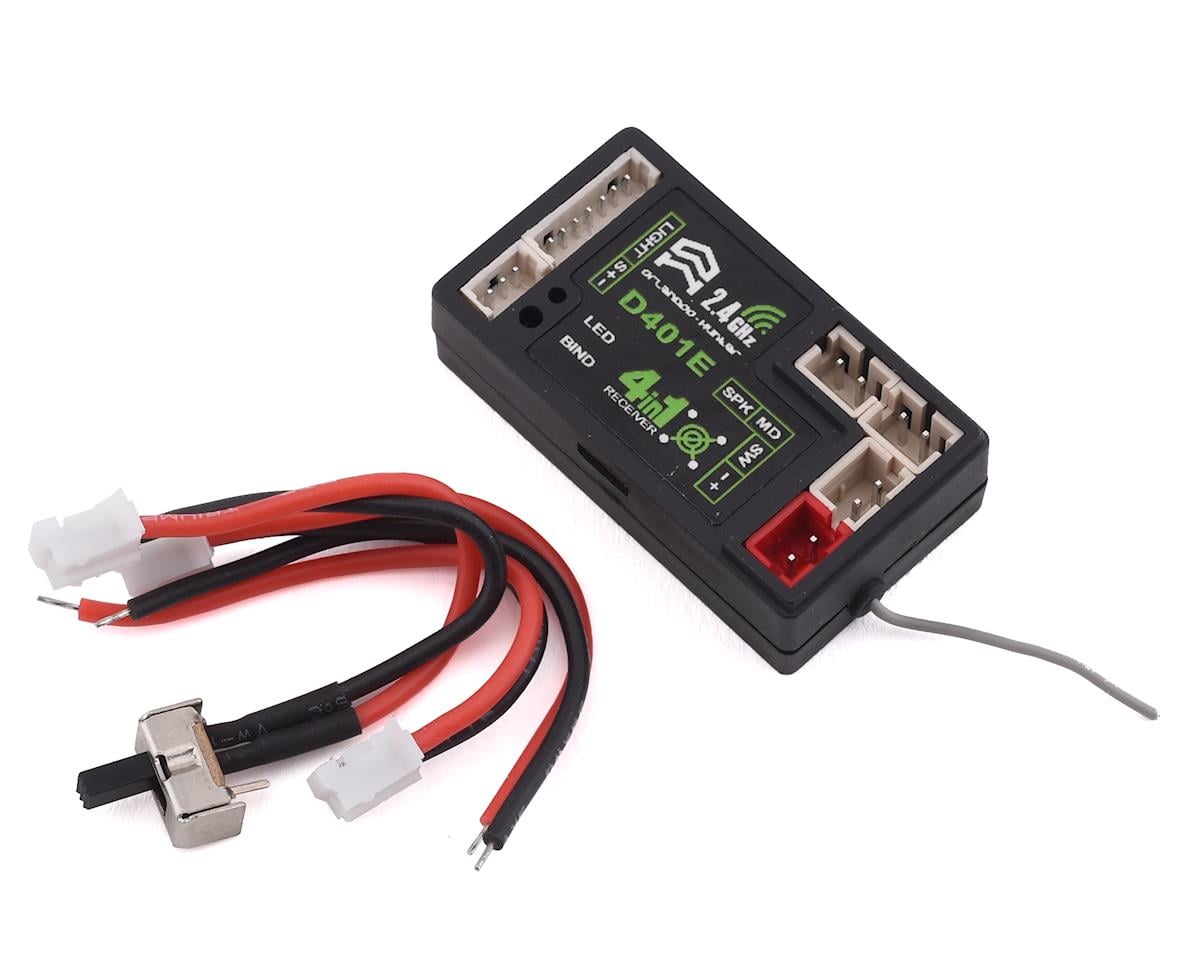

Orlandoo Hunter D401E 4 in 1 Receiver (Use w/D4L Radio System)

The Orlandoo Hunter D401E 4 in 1 Receiver is designed for use with the Orlandoo D4L transmitter. It combines a built-in ESC with ports for a light controller, sound module, and switch module.

Features

• 2.4GHz operation helps eliminate interference
• Built-in ESC with forward, reverse, and brake functions
• Sound module connectivity
• Light controller connectivity
• Includes switch and two pigtails with factory-installed PH2.0 connectors

Specifications

• Size: 36x20x10mm
• Operating Voltage: 6V-8.4V (2S LiPo or 6 cell NiMH)
• ESC: Brushed Motor up to 1.8A
• Sound Simulator: Amp up to 4.5W
• BEC: Output 3.3V/0.8A

Notes

• A PH2.0 to female JST adapter is required to connect a JST battery to the receiver.
• The D4L system requires D4L compatible motors.

Package Includes

• Receiver unit
• Switch module
• Two pigtails with factory-installed PH2.0 connectors
