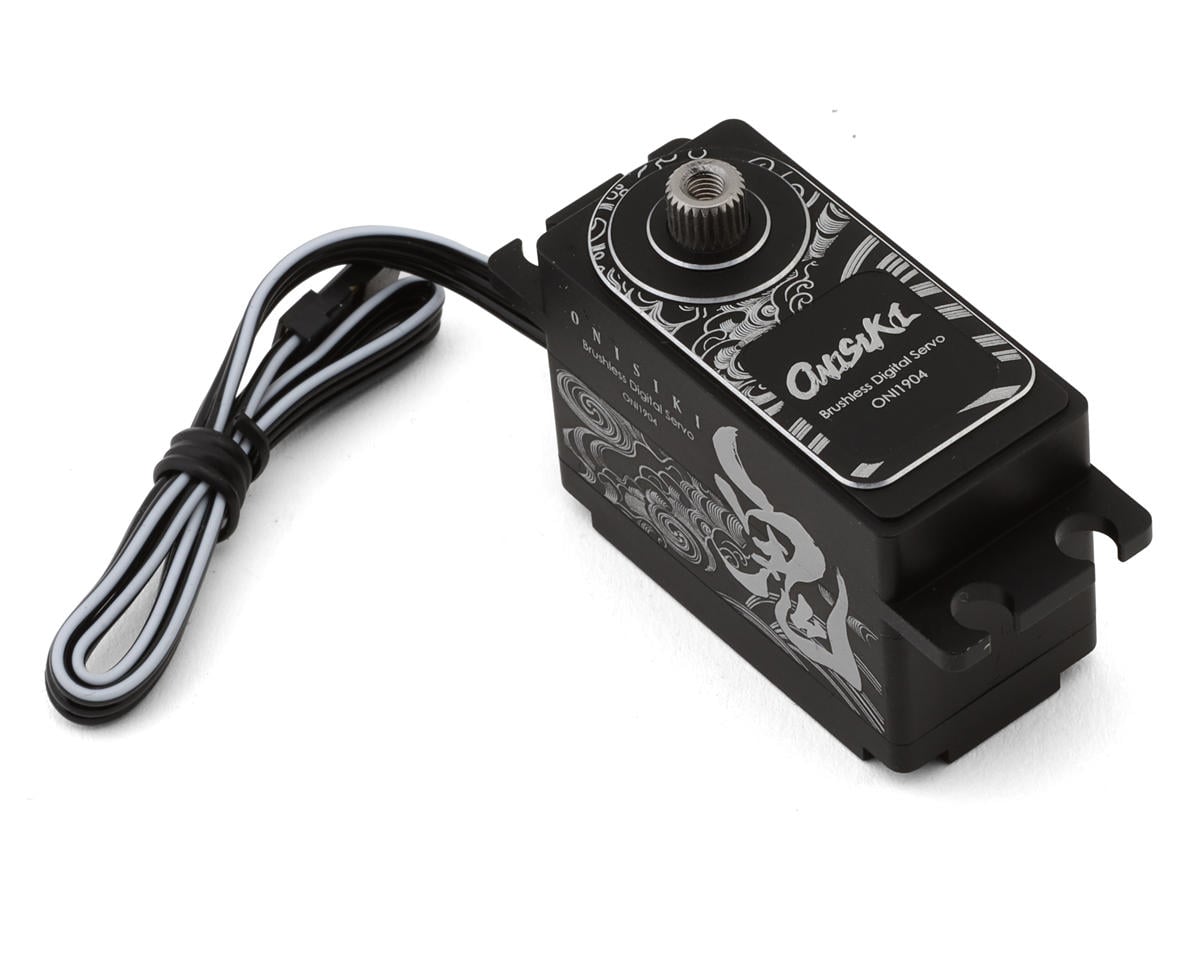

Onisiki Aluminum Case Low Profile Brushless 1/10 Drift Servo V2

The Onisiki Aluminum Case Low Profile Brushless 1/10 Drift Servo V2 is designed for 1/10 drift applications, with a low-profile case for chassis clearance and digital control for responsive operation. Its brushless high voltage motor, full aluminum case, titanium-coated stainless steel gears, and dual ball bearings support smooth, precise performance.

Features

• Zero center deadband for accurate drift control
• Titanium-coated stainless steel gears
• Full aluminum case for efficient heat dissipation
• Digital circuitry for low-latency response
• Brushless high voltage motor
• Updated firmware for gyro compatibility
• Dual ball bearings
• 25T spline output
• Low-profile design for better chassis clearance

Specifications

• Application: 1/10 Drift
• Input Voltage: 4.8-8.4V
• Operating Speed @ 6.0V: .06sec/60°
• Operating Speed @ 8.4V: .05sec/60°
• Dynamic Torque @ 6.0V: 278oz-in (20kg-cm)
• Dynamic Torque @ 8.4V: 319oz-in (23kg-cm)
• Pulse/Frequency: 333Hz
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Gear Material: Stainless Steel
• Dimensions: 1.61x0.80x1.14in (41x20.5x29mm)
• Weight: 2.05oz (58g)

Includes

• (1) Aluminum Case Low Profile Brushless 1/10 Drift Servo V2
• Mounting Hardware
