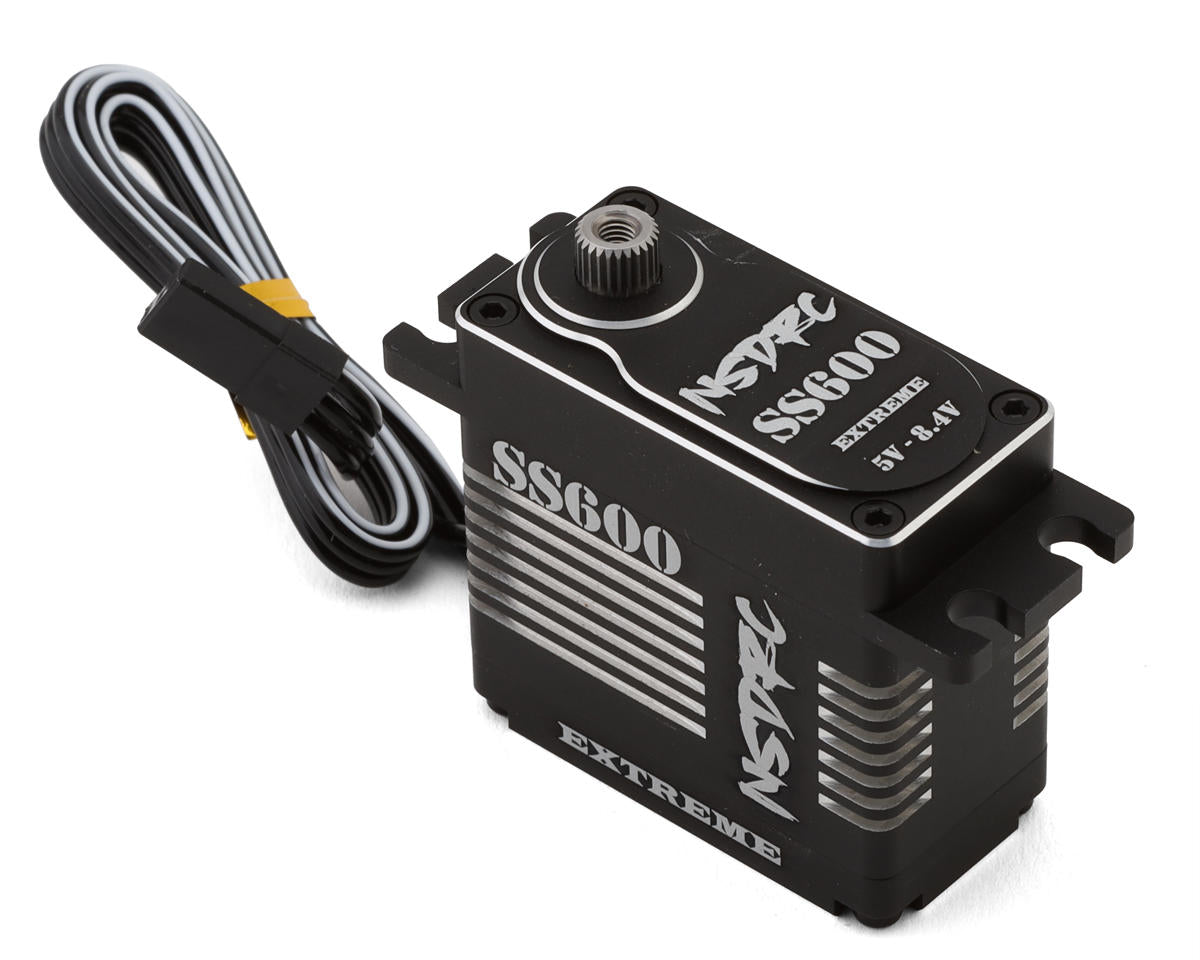

No Superior Designs RC SS600 Extreme Performance Waterproof Brushless Servo (HV)

The No Superior Designs RC SS600 Extreme Performance Waterproof Brushless Servo (HV) delivers high-speed response and high torque for demanding RC applications. It features a CNC aluminum case, brushless motor, 5-gear steel gear train, dual ball bearings and a 25T output shaft spline.

Features

• 0.04 sec/60° operating speed at 8.4V
• 687 oz-in (17.6 Kg-cm) dynamic torque at 8.4V
• CNC aluminum case for heat dissipation and durability
• 5-gear stainless steel gear train
• Brushless motor and digital circuitry
• Dual ball bearings
• IP66 water-resistant rating

Specifications

• Application: 1/12 to 1/8 On-road & Off-Road
• Input Voltage: 5-8.4V
• Operating Speed @ 6.0V: 0.06 sec/60°
• Operating Speed @ 7.4V: 0.05 sec/60°
• Operating Speed @ 8.4V: 0.04 sec/60°
• Dynamic Torque @ 6.0V: 512 oz-in (12.8 Kg-cm)
• Dynamic Torque @ 7.4V: 600 oz-in (15.5 Kg-cm)
• Dynamic Torque @ 8.4V: 687 oz-in (17.6 Kg-cm)
• Water-Resistant Rating: IP66
• Gear Material: Steel
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.57x0.78x1.52in (40x20x38.7mm)
• Weight: 3.22oz (91.5g)

Included

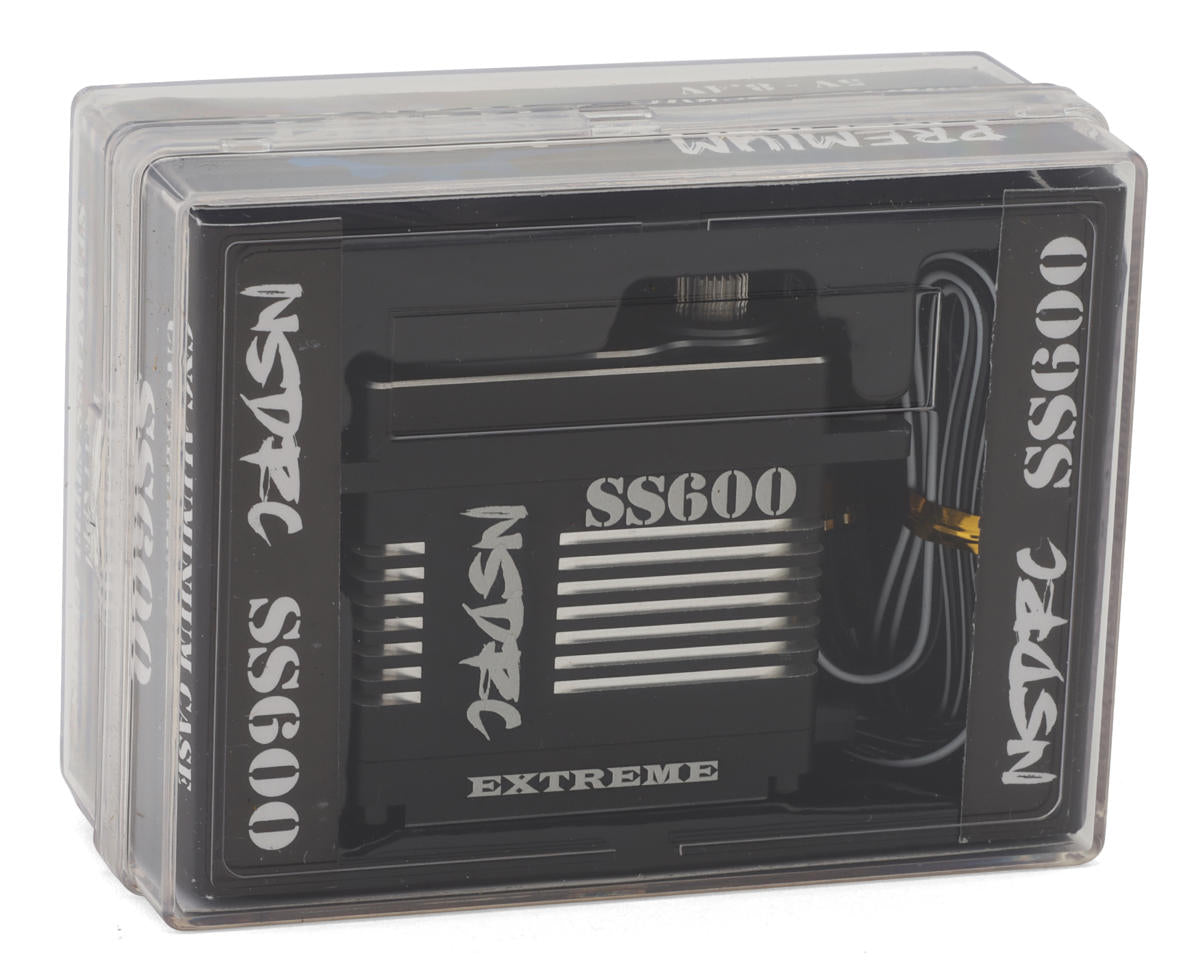

• (1) SS600 Extreme Performance Servo (HV)

Tech Notes

• Designed for use in helicopters, race applications and planes.
• Not recommended for use in Rock Crawlers.
• A BEC with 5amp or higher output is highly recommended to get the full potential out of the SS600.
