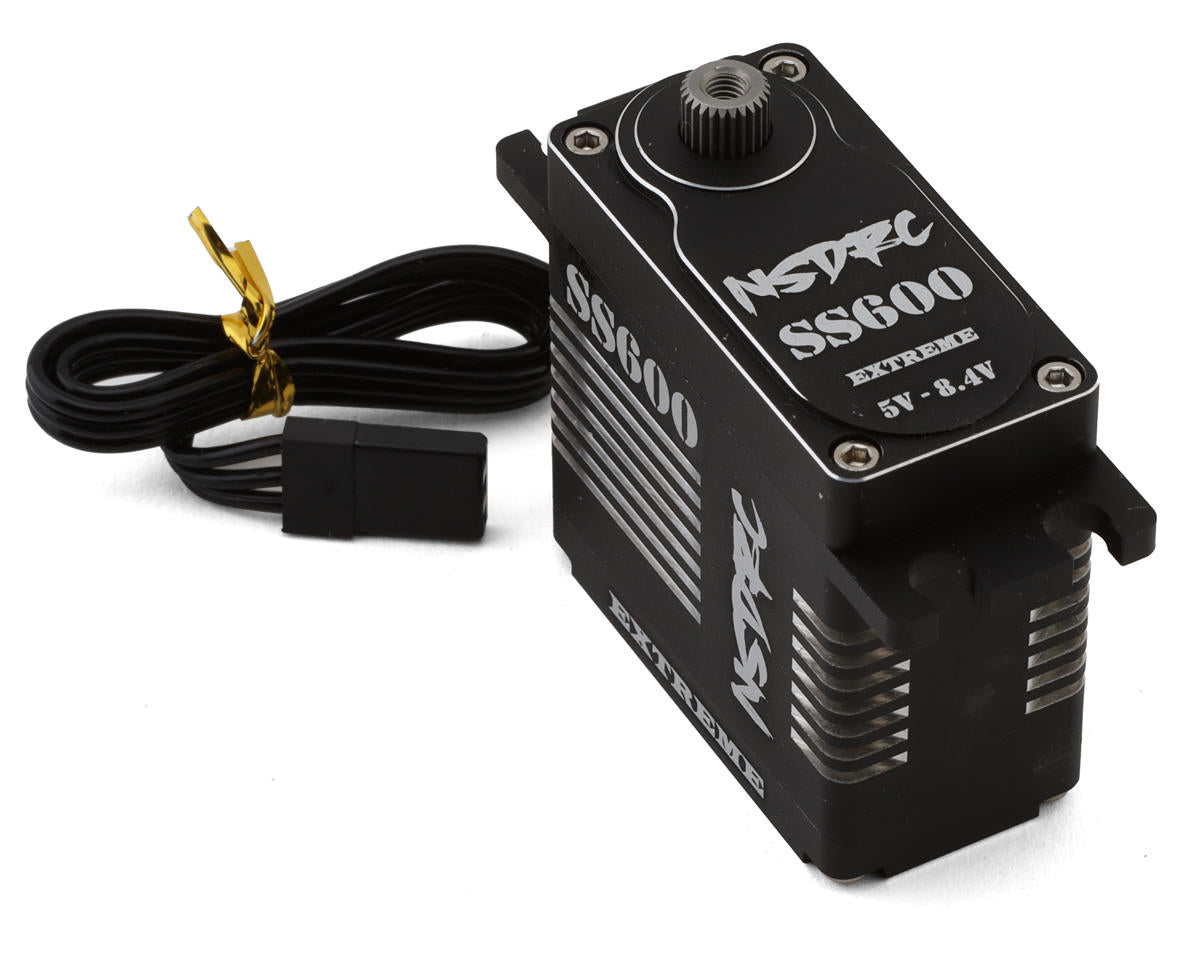

No Superior Designs RC SS600 Extreme Performance Waterproof Brushless Servo (HV)

The No Superior Designs RC SS600 Extreme Performance Waterproof Brushless Servo delivers high torque and speed for demanding RC applications. It provides 687oz-in of torque and 0.04sec/60° transit speed at 8.4V, with operation from 5.0V-8.4V.

Features

• Brushless 4-pole motor
• Full CNC aluminum case for heat dissipation and durability
• 5-gear stainless steel gear train
• Waterproof design
• Suitable for 1/12 to 1/8 scale on/off-road racing, large scale planes, helicopters, low riders, robotics, and other applications requiring high speed and torque

Specifications

• Speed: @6.0V: 0.06sec/60°; @7.4V: 0.05sec/60°; @8.4V: 0.04sec/60°
• Torque: @6.0V: 512oz-in (37kg-cm); @7.4V: 600oz-in (43kg-cm); @8.4V: 687oz-in (49.5kg-cm)
• Motor: Brushless
• Operating Voltage: 5.0V-8.4V
• Operating Temp.: 14F-122F (-10C/50C)
• Dimensions (LxWxH): 1.57"x0.78"x1.52" (40x20x38.7mm)
• Weight: 3.22oz (91.5g)
• Operating Spline: 25T

Includes

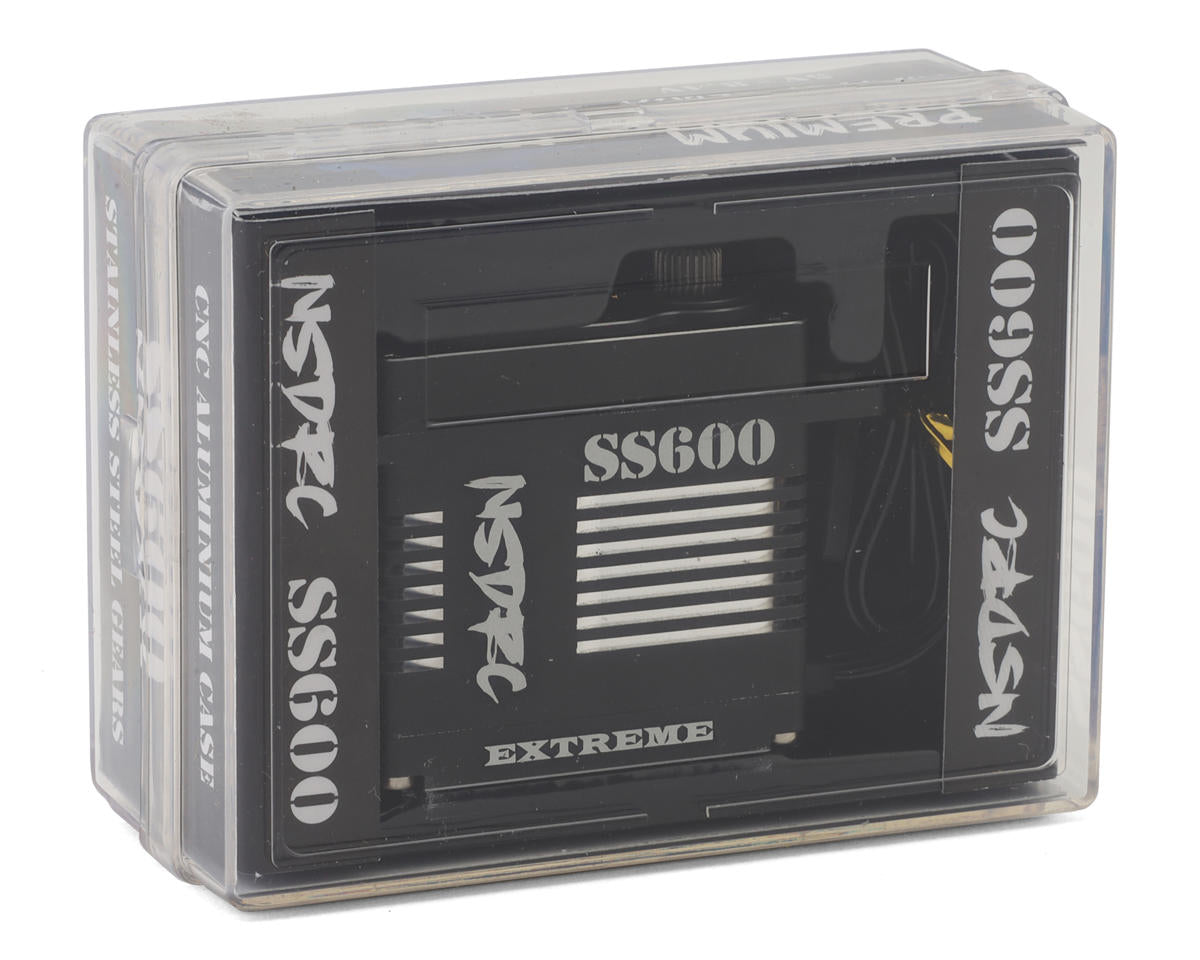

• (1) SS600 Extreme Performance Brushless Servo

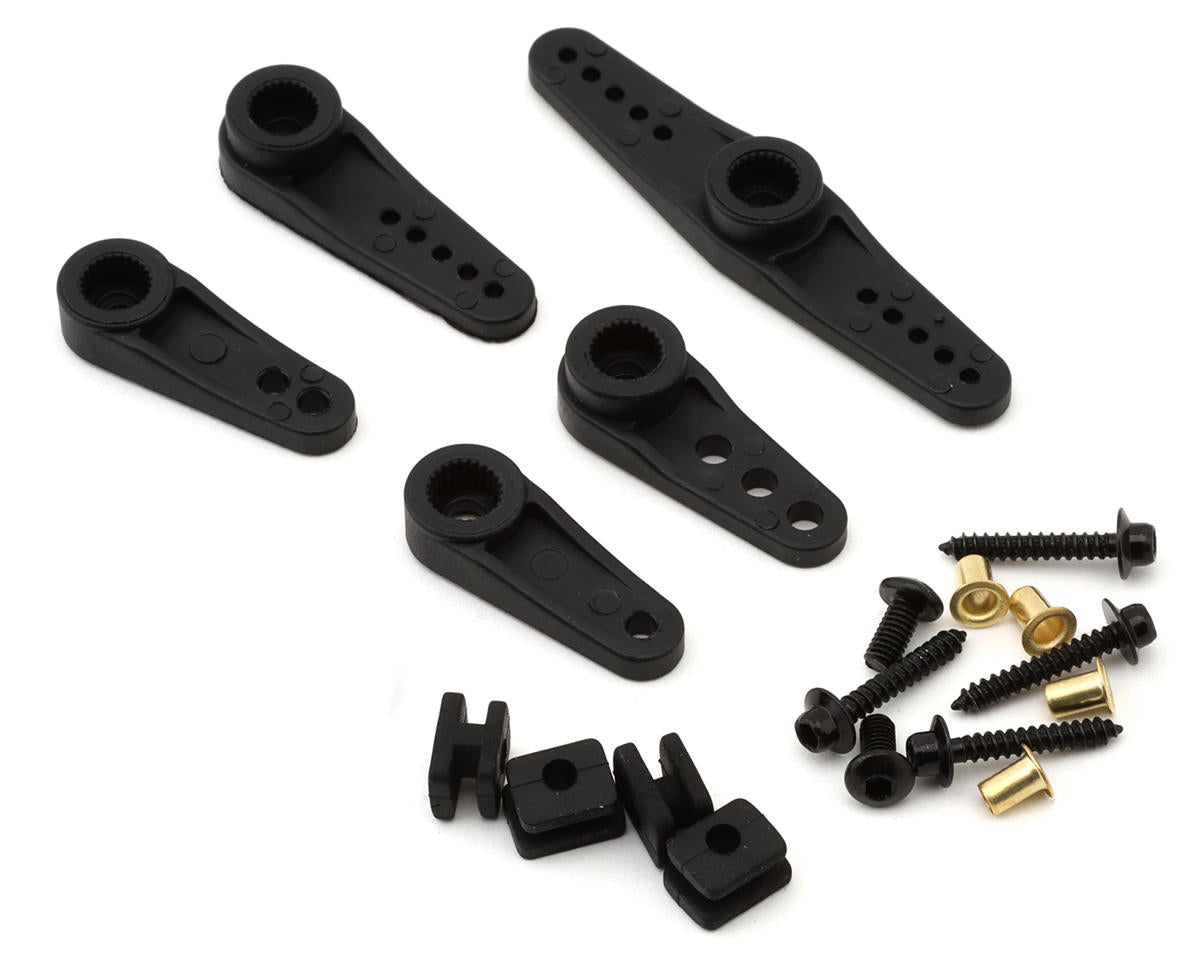

• Servo Horns and Mounting Hardware
