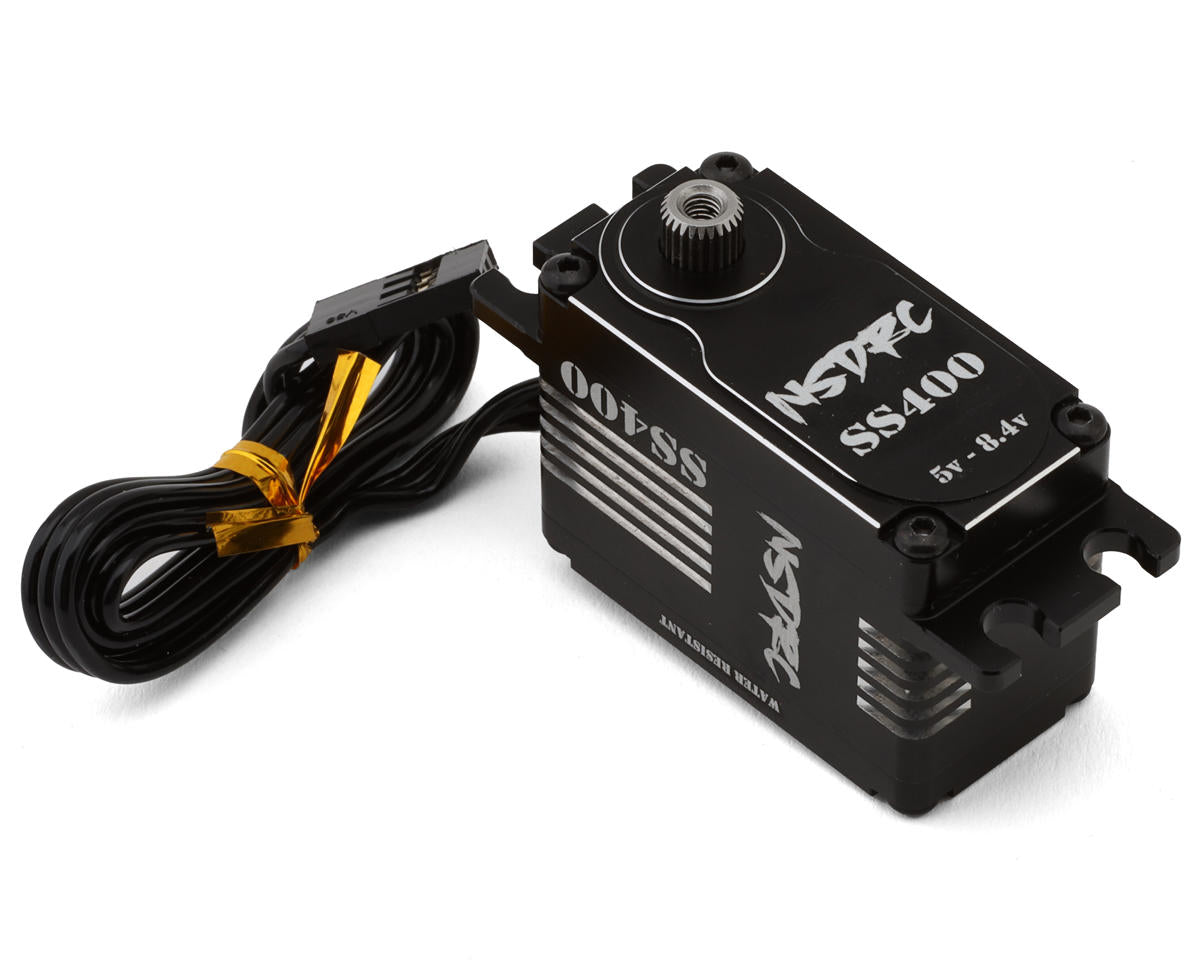

No Superior Designs RC SS400 Low Profile Racing Servo (High Voltage)

The No Superior Designs RC SS400 is a low-profile, high-voltage racing servo with a CNC-machined aluminum case, hardened stainless steel gears, and a high-efficiency coreless motor. It is designed for applications requiring fast response, precise control, and high torque.

Features

• Low-profile case design that saves space and weight
• 5-gear stainless steel design with hardened stainless steel gears
• Black anodized, CNC-machined aluminum case for durability and improved heat dissipation
• High-efficiency coreless motor
• Water resistant; not recommended for submersion
• 11-point O-ring seal
• Dual ball bearings
• High-quality magnetic angle sensor
• High-voltage operation up to 8.4V

Specifications

• Type: Low Profile High Speed Racing Servo
• Motor Type: Coreless
• Operating Voltage: 5V - 8.4V
• Gears: Hardened Stainless Steel
• Spline: 25T
• Dimensions (LxWxH): 40x27x20mm
• Weight: 64g
• Case: CNC-Machined Aluminum
• Torque: 6V: 290oz-in (21kg-cm); 7.4V: 345oz-in (25kg-cm); 8.4V: 400oz-in (29kg-cm)
• Speed: 8.4V: 0.07 sec/60°; 12.6V: 0.06 sec/60°; 16.8V: 0.05 sec/60°

Includes

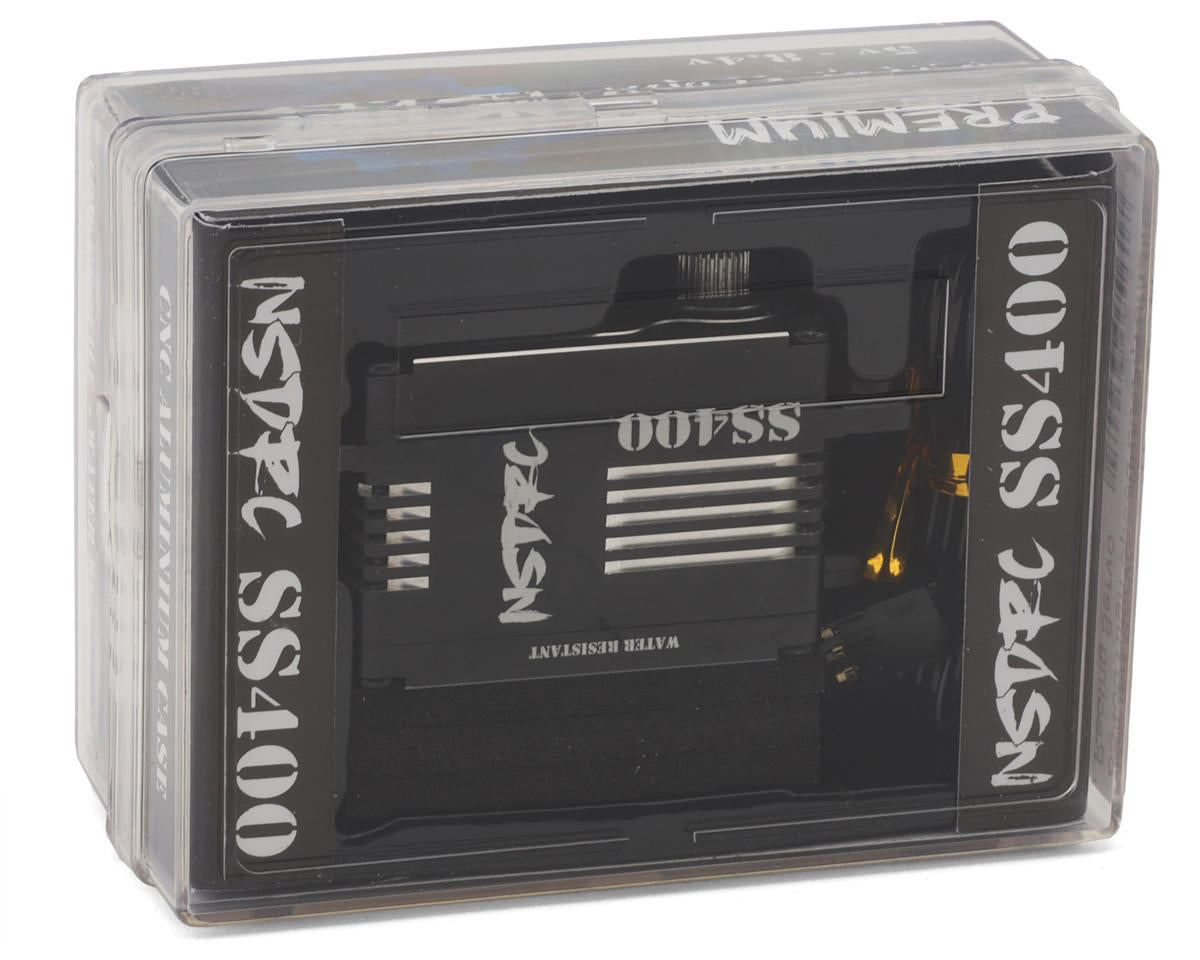

• (1) SS400 Low Profile Racing Servo

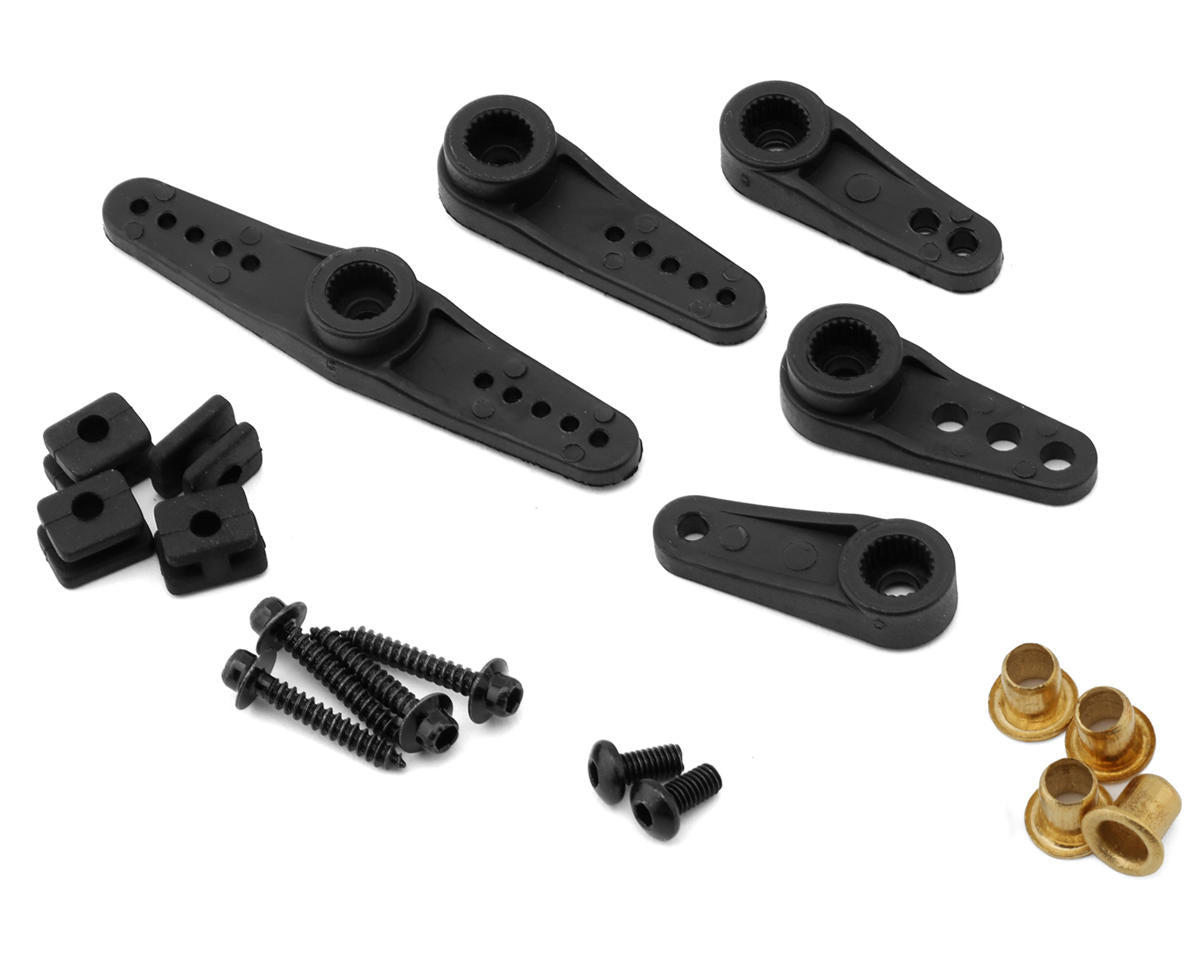

• Multiple composite horns
• Mounting screws, bushing and rubber grommets

Note: Disconnect the power connection plug or turn off the power switch on your ESC when not in use to help prevent damage to the servo and battery. Not recommended for powering using a balance plug.
